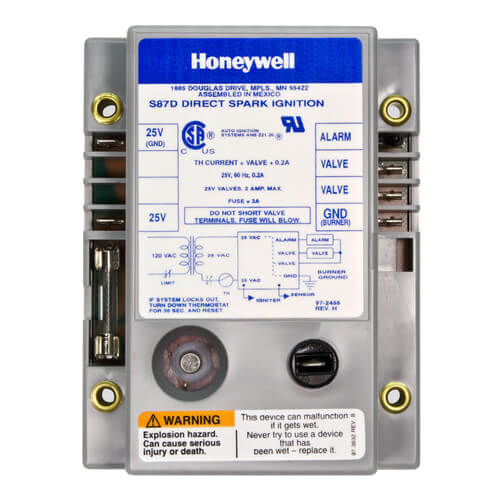

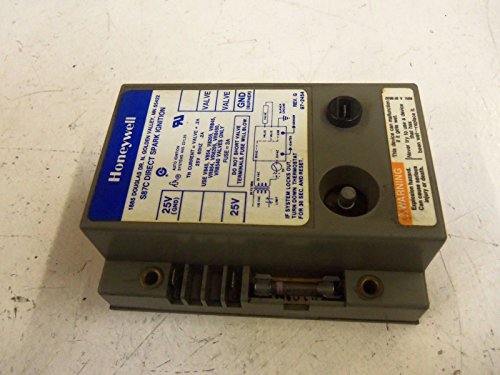

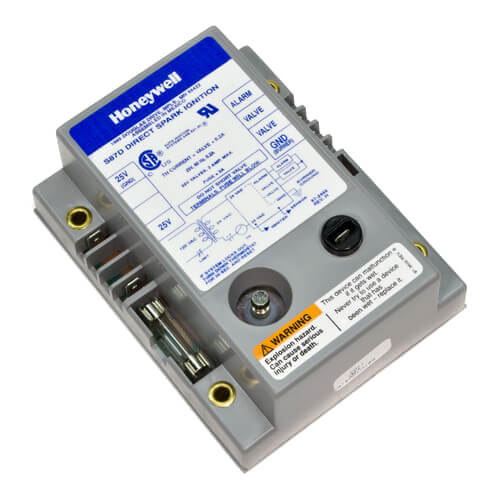

Resideo S87C1014 Two Rod Direct Spark Ignition Control Module with 11 Second Lockout

Product Description

The Resideo S87C1014 is a critical component designed to manage the ignition process in gas-fired heating appliances like furnaces and boilers. It ensures reliable operation by controlling the ignition sequence and the gas valve operation, providing an efficient electronic control of direct spark ignition systems.

• Streamlines ignition sequences and gas control operations.
• Features a high voltage spark generator for main burner ignition.
• Incorporates a safety lockout feature after a single ignition trial if the burner fails to ignite.

Product Highlights

This ignition control module is equipped with no prepurge and offers a quick flame failure response time, which enhances safety and efficiency in heating systems. It supports both natural and LP gas and operates with standard 24 Vac electrical ratings.

Product Information

Standard Information

• Ignition System Type: Direct Spark Ignition
• Control Type: Electronic

Technical Specifications

• Dimensions: 5.25 inches high x 4.06 inches wide x 1.94 inches long
• Max Ambient Temperature: -40 F to +175 F
• Electrical Ratings: 24 Vac, 60 Hz
• Ignition Trials To Lockout: 1
• Includes: Alarm terminal
