Product Description

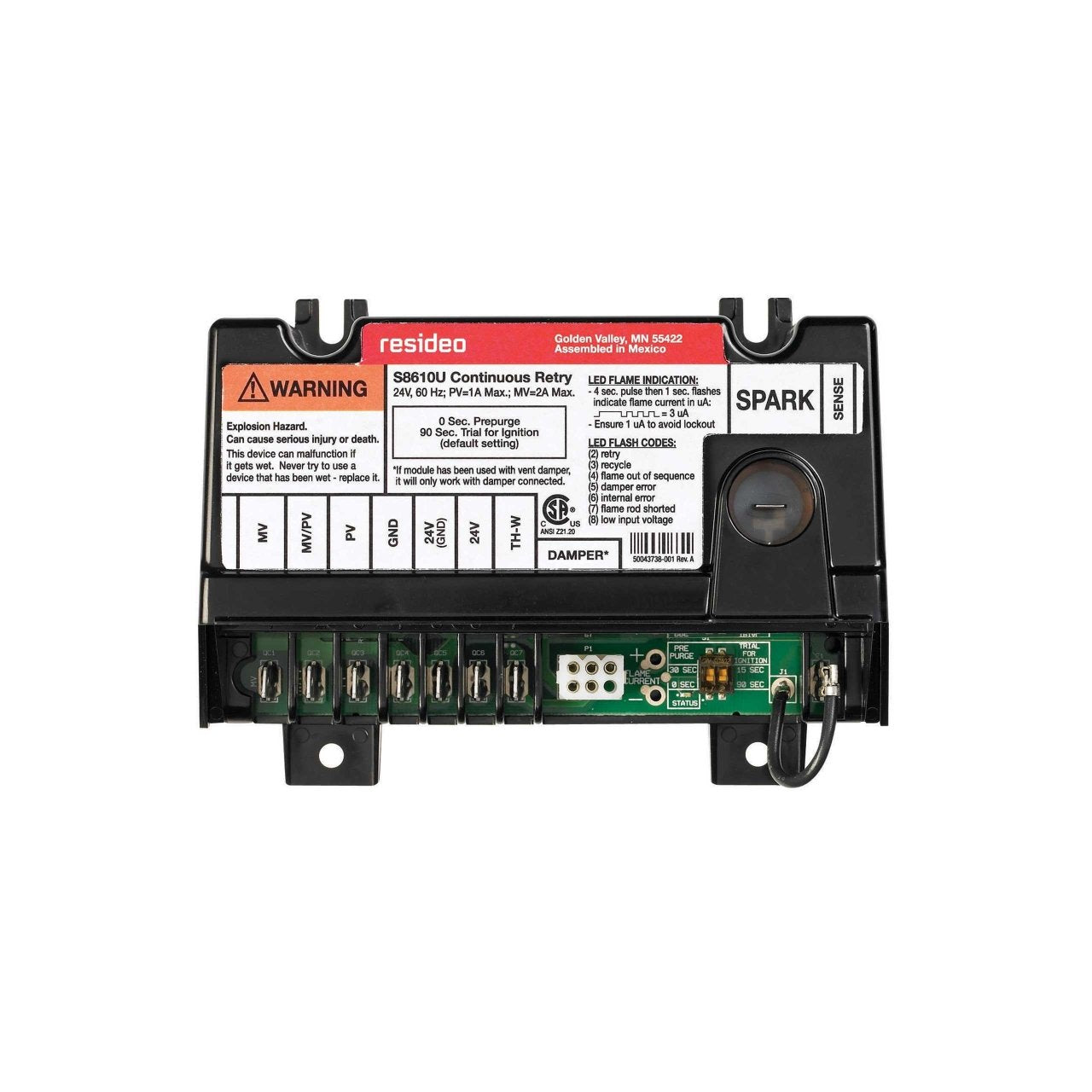

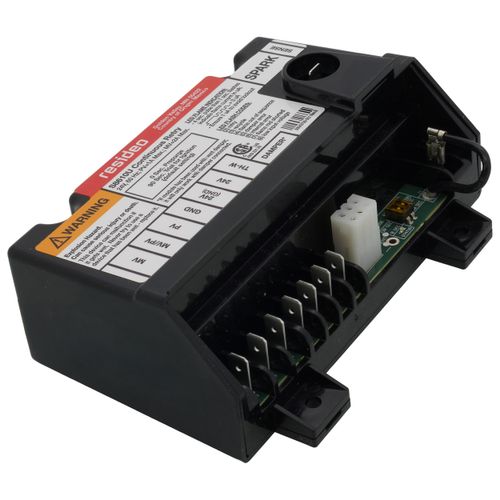

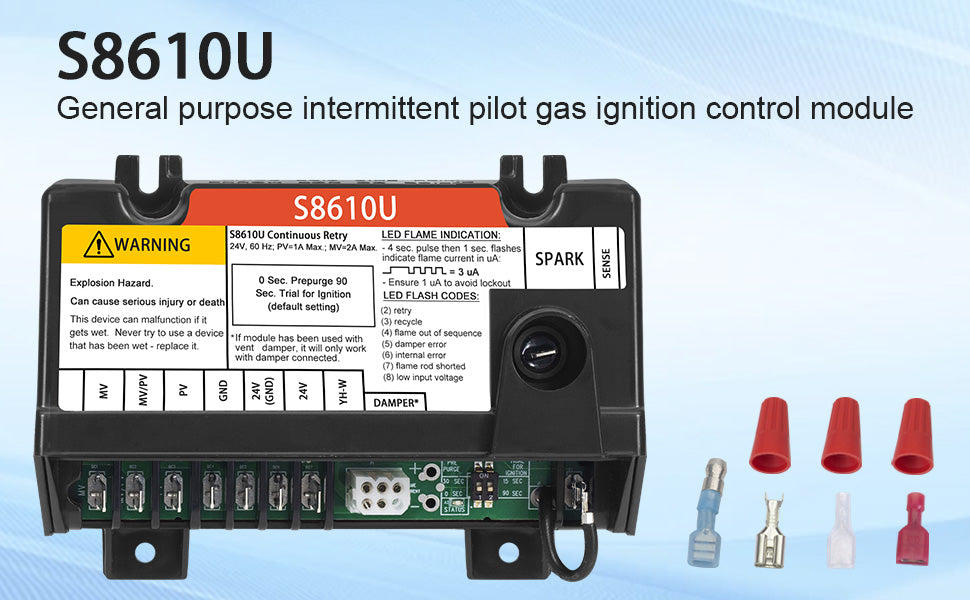

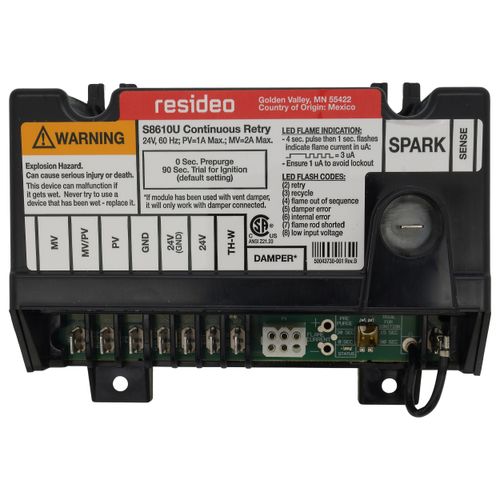

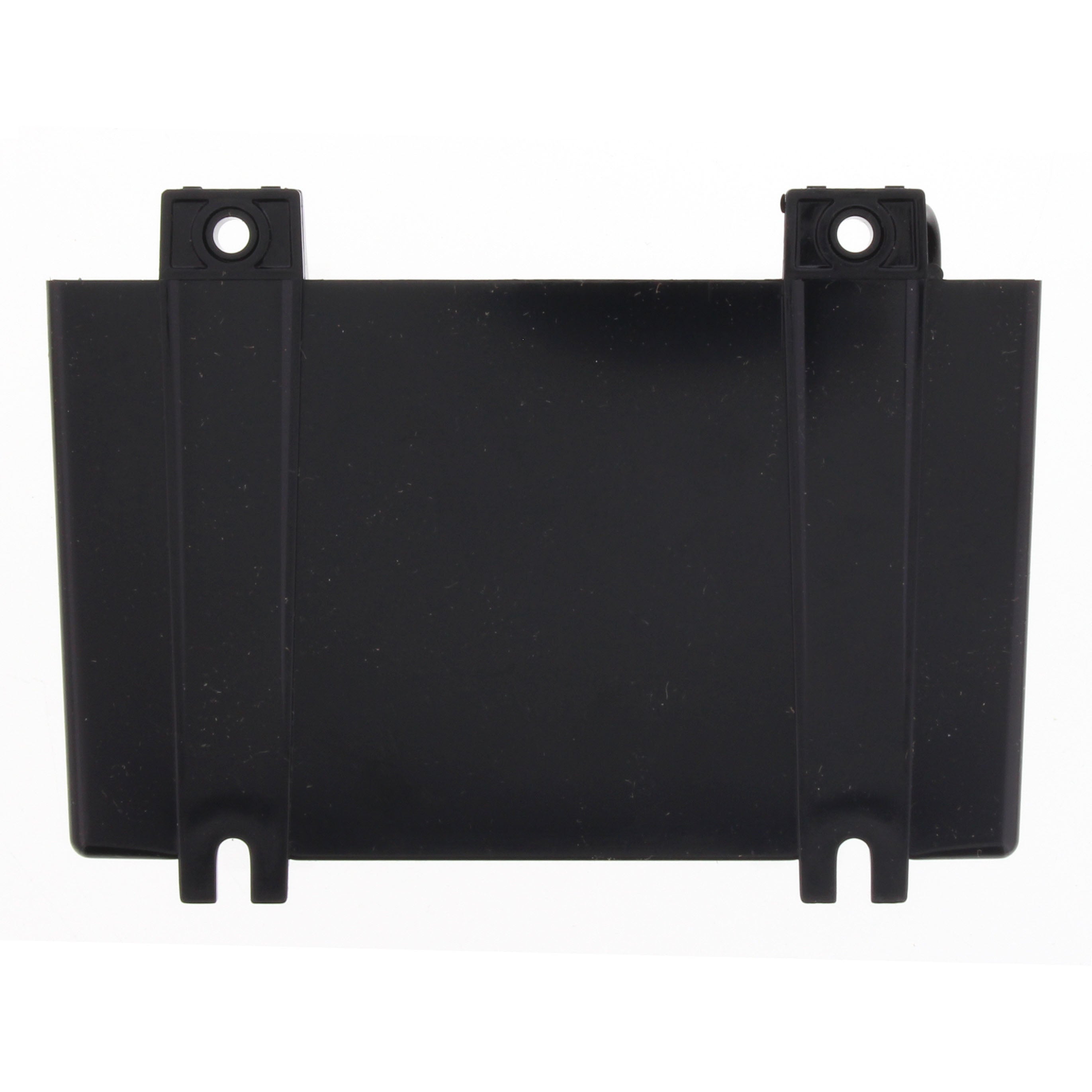

The Resideo S8610U3009 IP Module provides electronic control of most intermittent pilot ignition systems used on gas-fired furnaces, boilers, and other heating appliances. It is a field service replacement for most Honeywell, Robertshaw, Johnson, and UTEC (HSC) Intermittent Pilot Ignition Modules.
- Provides ignition sequence, flame monitoring and safety shutoff for intermittent pilot central furnaces and heating appliances
- Provides 100 percent pilot gas shutoff if pilot fails to light; after 6-minute delay, trial for ignition is repeated. Ignition trial/delay sequence is repeated until the appliance lights or call for heat is removed
- For use with Natural or LP gas
Product Highlights
The module has continuous retry trial time, configurable lockout timing of 15 or 90 seconds and configurable prepurge of 30 seconds or no prepurge.
Product Information
Standard Information
-
Brand: RESIDEO
-
Manufacturer Part Number: S8610U3009
-
Country of Origin: Mexico
Technical Specifications
-
Brand: Resideo
-
Model / MPN: S8610U3009
-
MPN: S8610U3009
-
Ignition System Type: Intermittent Pilot
-
Typical Gas Control: VR8204, VR8304
-
Type of Gas: Natural or LP
-
Flame Sense: Single Rod or Two Rods
-
Ignition Source: Internal high voltage spark generator
-
PrePurge: Configurable to 30 seconds or no prepurge
-
Ignition Trials To Lockout: continuous retry
-
Lockout Timing: Configurable to 15 seconds or 90 seconds
-
Ignition Trial Time (sec): continuous retry
-
Maximum Valve Load @ 24 Vac (Amps): 1A Pilot, 2A Main @ 165F; 1A Pilot, 1A Main @ 175F
-
Typical Ignition Hardware: Q345, Q3451, Q3452
-
Electrical Ratings: 24 Vac
-
Frequency: 60 Hz
-
Maximum Ambient Temperature: -40F to +165F
-
Approvals, Canadian Standards Association: Design Certified
-
Between Trial Time (sec): 5 minute delay after failed trial for ignition
-
Flame Failure Response Time (sec): 2 seconds maximum
