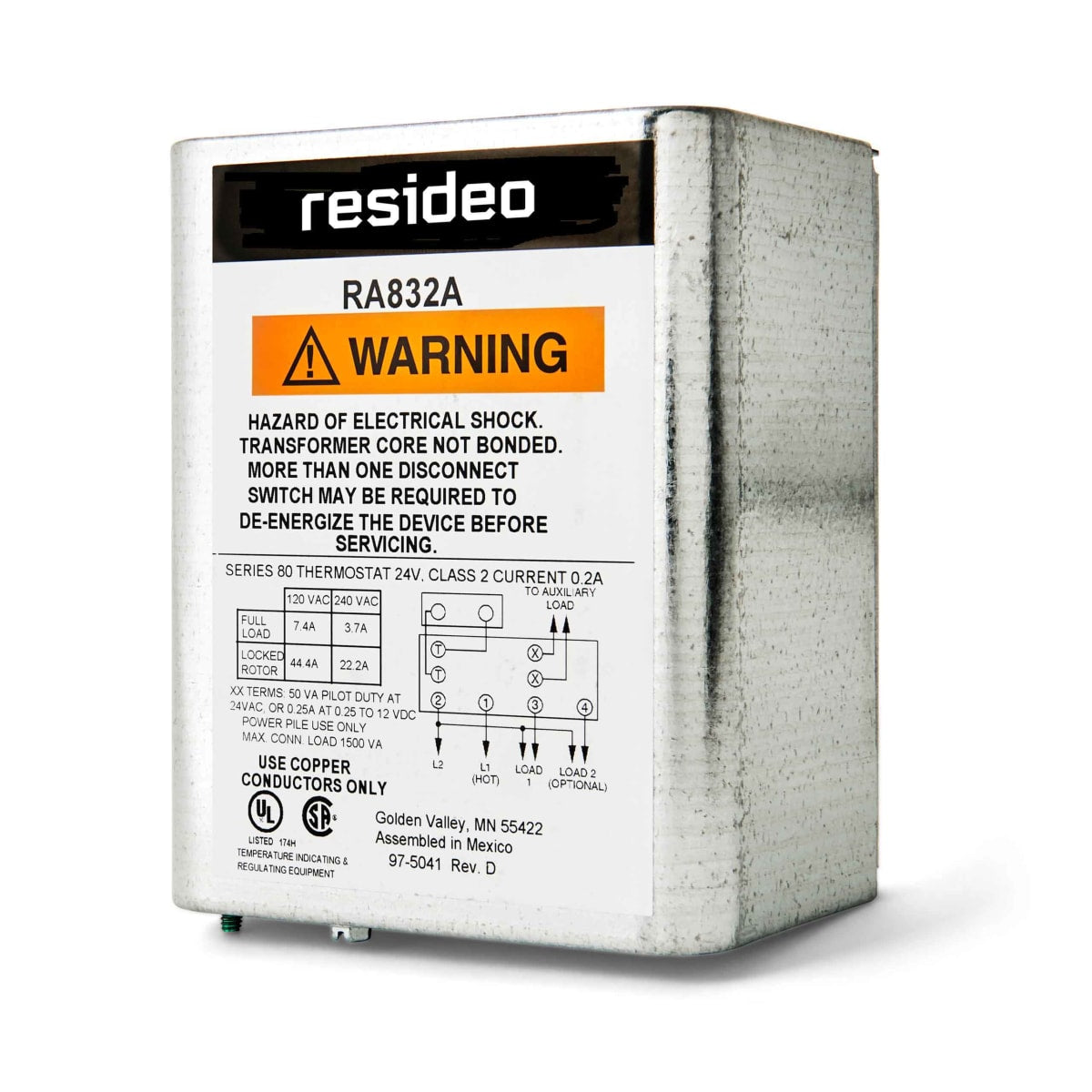

Resideo RA832A1082/U Switching Relay W Internal Transformer

Product Description

The Resideo RA832 switching relay, identified by MPN RA832A1082/U, facilitates low voltage control of line voltage devices. It effectively switches devices from a low voltage controller with the aid of its integral transformer. Designed for reliability, this relay operates with a twenty-four volt coil and features a built-in transformer.

• Integral transformer supplies low voltage for the control circuit.
• The RA832A operates as a TPST relay.
• Designed to handle both low voltage and line voltage loads.

Product Highlights

This relay is suitable for applications involving intermediate switching from low voltage controls, providing dependable performance in HVAC systems.

Product Information

Standard Information

• Country of Origin: United States
• Hazardous Material: No

Technical Specifications

• Includes: Integral transformer, enclosure
• Warranty: 1 Year
• Application: Switching relay; enclosed intermediate DPST switching of a line voltage device from a low voltage controller
• Approvals and Standards: UL Listed: File No. E4436, Guide No. XAPX; CSA Certified: File No. LR1620
• Contact Electrical Rating AFL: 7.4A @120 V AC, 3.7A @240 V AC
• Contact Electrical Rating ALR: 44.4A @ 120 V AC, 22.2A @ 240 V AC
• Contact Electrical Rating Resistive: 10A @ 120 V AC, 6.0A @ 240 V AC
