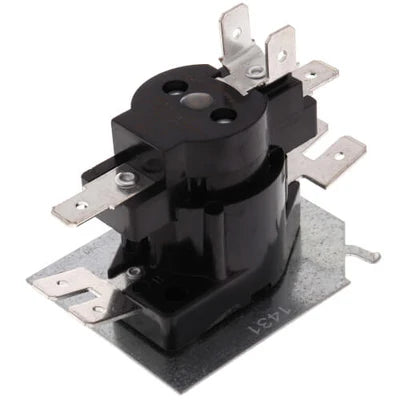

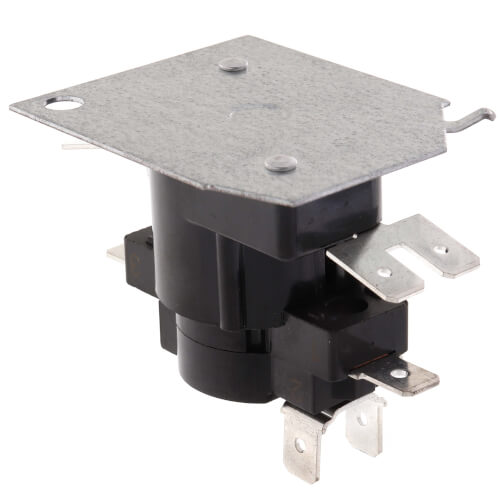

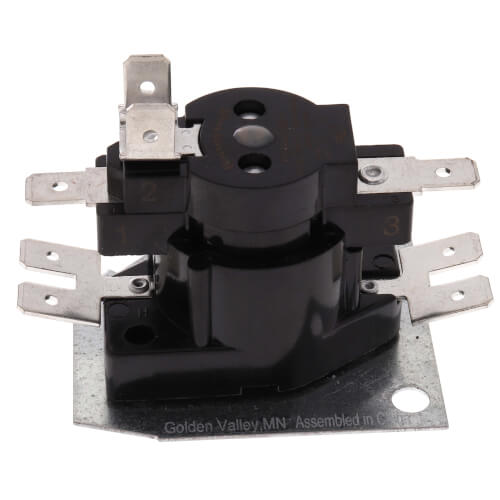

Resideo R24AA2006 Heat Sequencer for HVAC Systems

Product Description

The Resideo R24AA2006 Heat Sequencer is essential for controlling HVAC systems. This solid-state device, designed by Honeywell Home, is adept at automating air handlers and heat pumps with precision timing.

• Operates with on-timing of 1-60 seconds and off-timing of 75-95 seconds for optimal efficiency.
• Durable construction ensures reliability and longevity in commercial settings.
• Easy installation with quick-connect terminals and versatile mounting options.

Product Highlights

Utilizing positive temperature coefficient (PTC) technology, the R24AA2006 is shock and vibration resistant, capable of handling electrical loads up to 25 Amps at 120 or 240 Volts. It maintains functionality in temperatures ranging from -40 C to 73.8 C (-40 F to 165 F), certified by UL and awaiting CSA/CUR approval.

Product Information

Standard Information

• Brand: Resideo Honeywell Home
• MPN: R24AA2006

Technical Specifications

• Voltage: 24v
• Weight: 0.14 lbs
• Operating Timings: On-Delay 1-60 sec, Off-Delay 75-95 sec
• Approvals: UL Listed, CSA/CUR Pending
• Mounting: Flexible mounting positions
• Terminals: Quick-connect type
• Temperature Range: -40 C to 73.8 C (-40 F to 165 F)
