Product Description

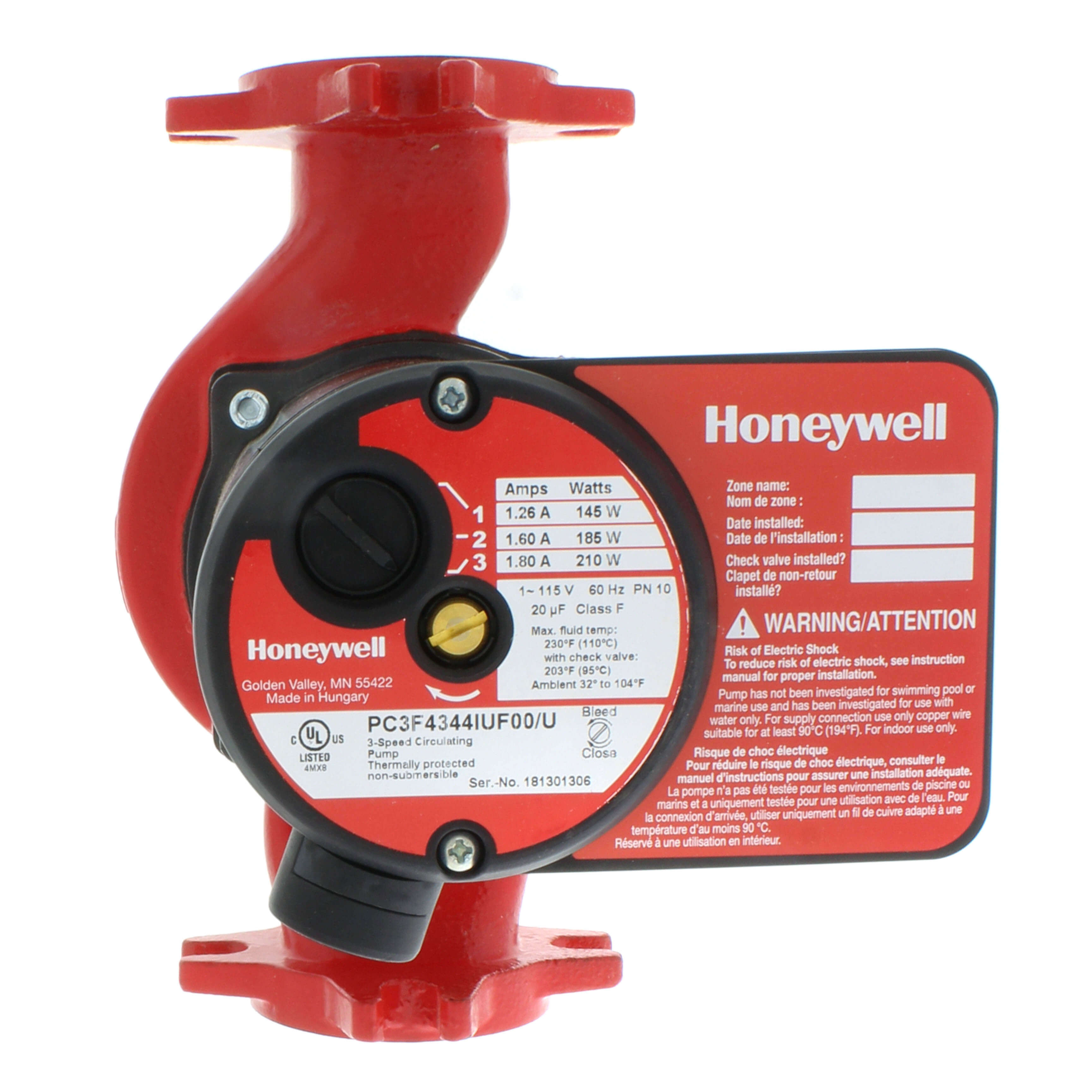

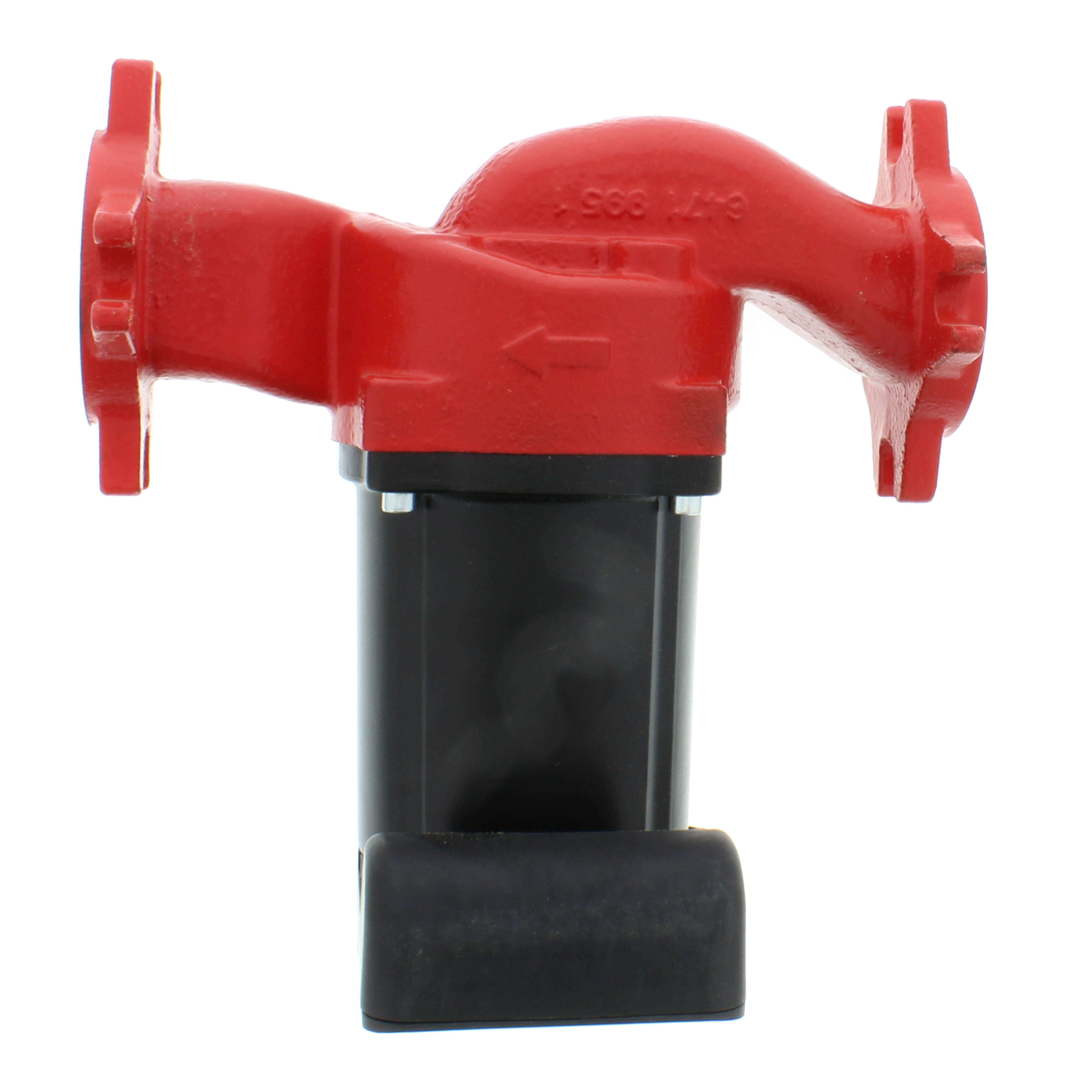

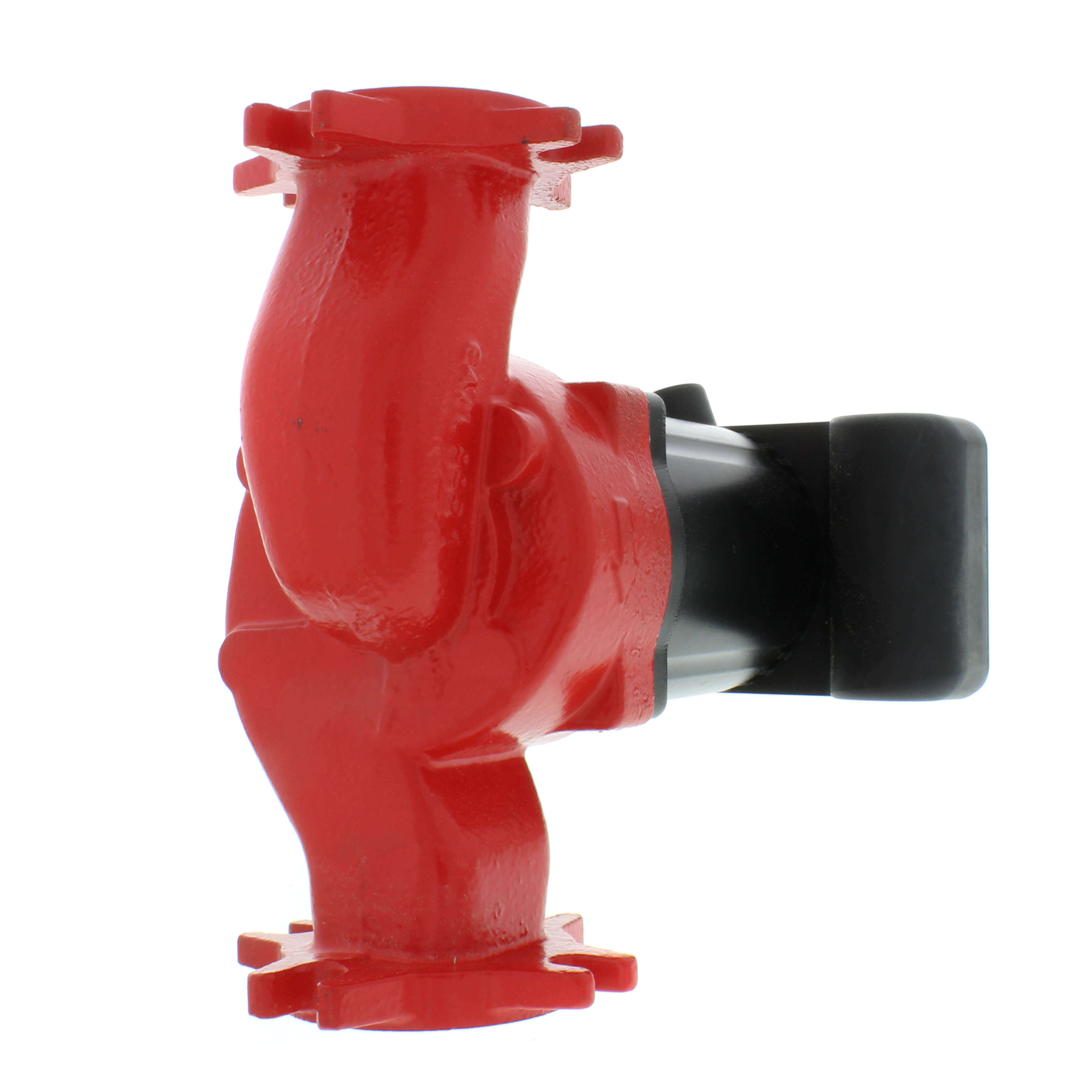

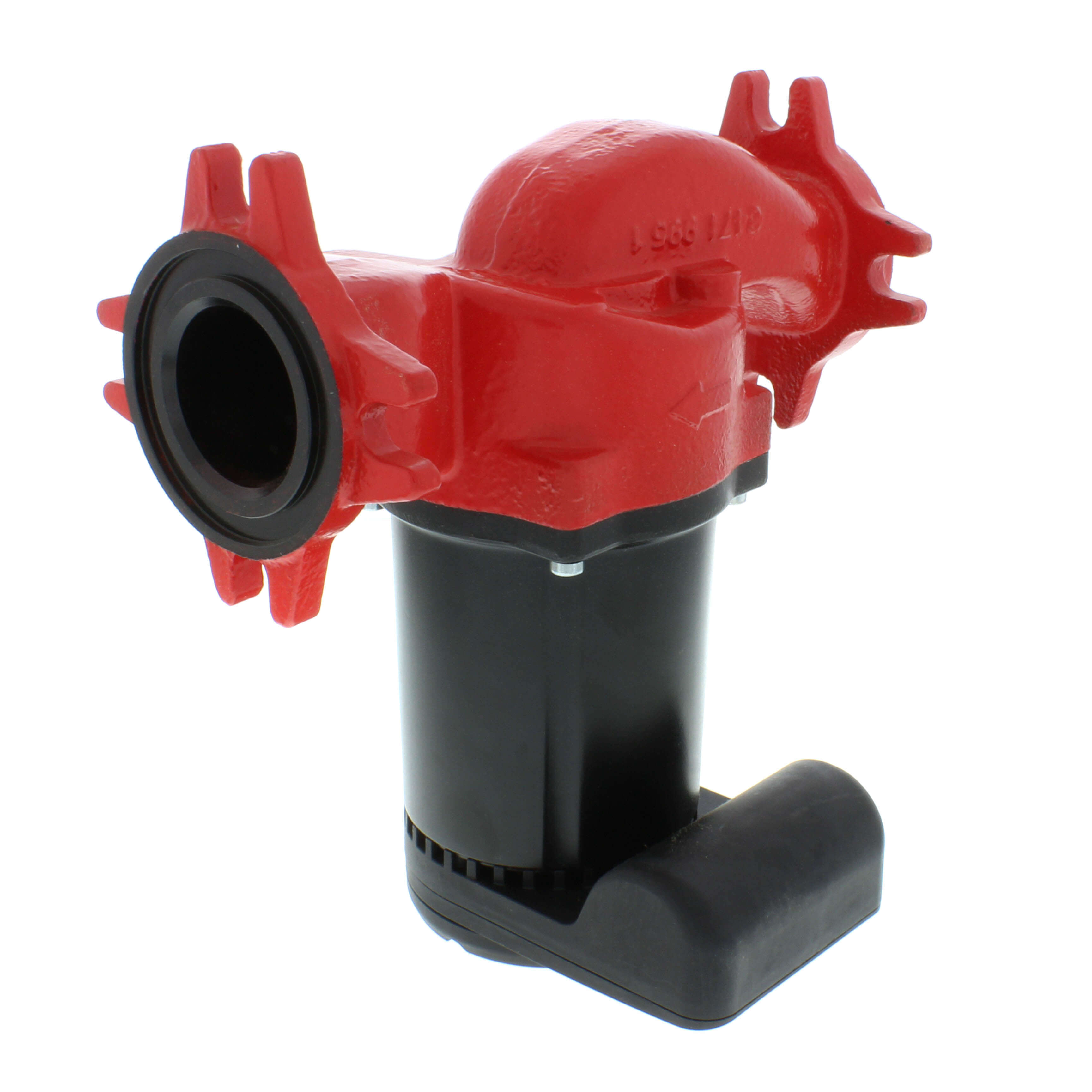

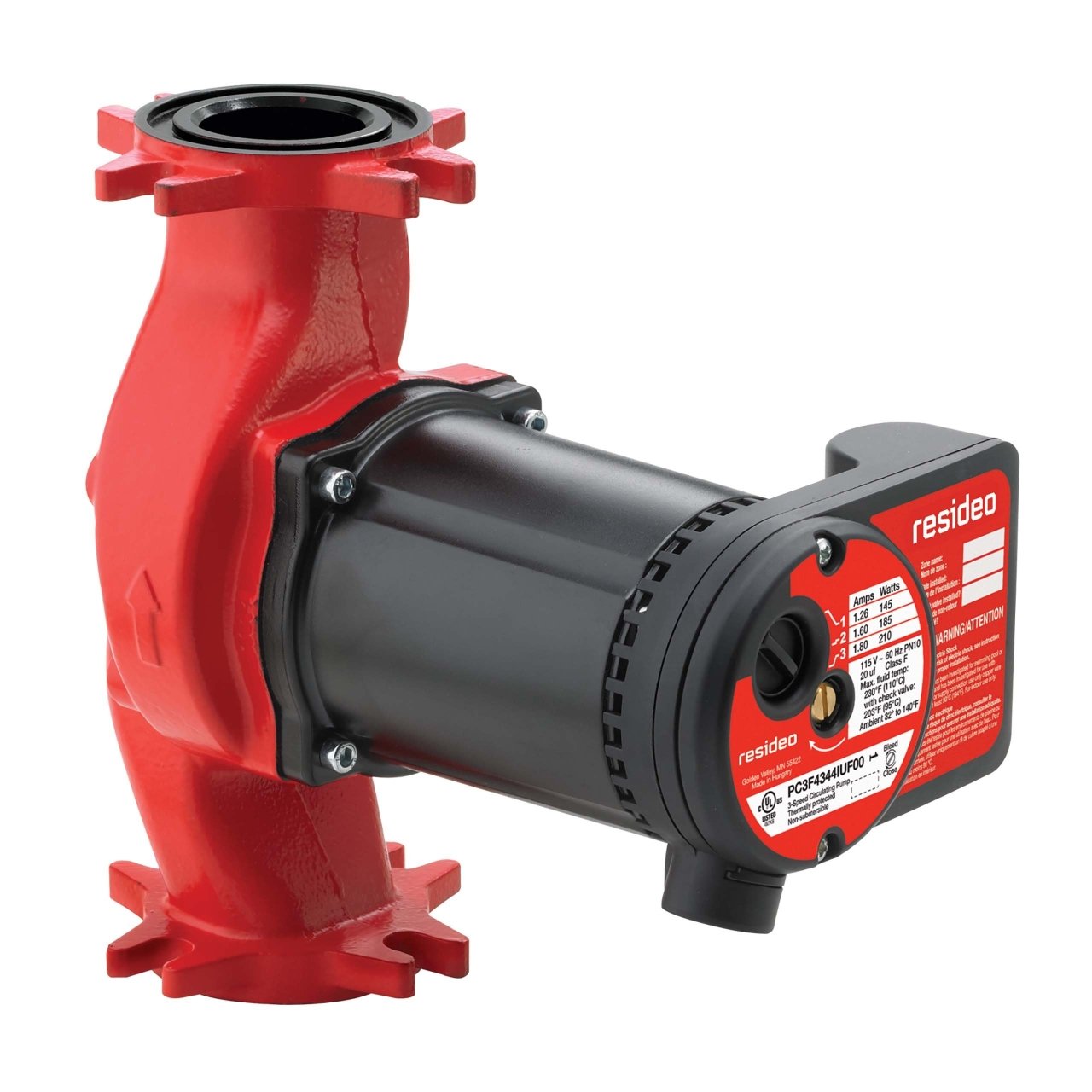

The RESIDEO PC3F4344IUF00 AquaPump is an in-line, wet rotor circulator with a universal flange designed for closed loop hydronic heating and cooling systems, and solar powered systems. This 3-speed circulator pump is non-submersible and suitable for dry, frost-free, well-ventilated installations. It features a manual selector for speed settings via a rotary switch.
- Features a universal flange for easy installation.
- Maximum water pressure of 145 psi.
- Maximum fluid temperature of 230° F (110° C).
Product Highlights
The RESIDEO PC3F4344IUF00 AquaPump is a 3-speed in-line wet rotor circulator designed for closed-loop hydronic heating and cooling systems.
Product Information
Standard Information
-
Brand: RESIDEO
-
Manufacturer Part Number: PC3F4344IUF00
-
Country of Origin: Import
Technical Specifications
-
Manufacturer: Resideo
-
Product Item: PC3F4344IUF00
-
Type: Circulator Pumps
-
Speeds: 3
-
Voltage: 115V
-
Max Flow (GPM): 45
-
Housing Material: Cast Iron
-
Max Pressure (PSI): 145
-
Temperature Range (F): 32°F to 104°F
-
Application: Closed Loop Hydronic Heating Systems, Closed Loop Hydronic Cooling Systems, Solar Powered Systems
-
Approvals and Standards: Insulation Class F, Temperature Class: TF 95, UL Listed 4MX8
-
Controlled Media: Non Potable Water
-
Flow Rate (Max): 59 gpm, 170 lpm
-
Warranty: 5 Years
-
Power Source: Hardwired
-
Number of Speeds: 3
-
Wattage Per Speed: 145 W for Speed 1, 185 W for Speed 2, 210 W for Speed 3
-
Amp Drop Per Speed: 1.26 A for Speed 1, 1.61 A for Speed 2, 1.83 A for Speed 3
-
Operating Frequency: 60 Hz
-
Operating Voltage: 115 VAC
-
Driving Noise Rating: Less than 43 dB(A) at 3.3 feet, Less than 43 dB(A) at 1 meter
-
Connection Size: 3 2/5 in, 87 mm
-
Connection Type: Flanged
-
Flange Connection Size: 3.4 in, 87 mm
-
Submersible: Non Submersible
-
Inlet Pressure (Min): 4.1 psi at 194 °F, 4.1 psi at 90 °C, 0.73 psi at 167 °F, 0.73 psi at 75 °C
-
Media Pressure (Max): 50 psi at 200 °F, 50 psi at 93 °C, 145 psi at room temperature
-
Pressure Head (Max): 17 ft, 5.2 m
-
Media Temperature (Max): 230 °F, 110 °C
-
Check Valve Media Temperature (Max): 200 °F, 93 °C
-
Ambient Operating Temperature (Max): 104 °F, 40 °C
-
Ambient Operating Temperature (Min): 32 °F, 0 °C
-
Compatible With: Hydronic Heating Systems, Hydronic Cooling Systems, Solar Powered Systems
-
For Use With: PCG150/U, PCV150/U
-
A to B Port Dimensions: 8.5 in, 216 mm
-
Body Material: Cast Iron GG25
-
Bearing Material: Ceramic
-
Seal Material: EPDM Rubber
-
Shaft Material: Ceramic
-
Impeller Material: Polyamide
-
Domestic / Import: Import
-
Flow Rate: 45 gpm
-
Voltage Rating: 115 V
-
Frequency Rating: 60 Hz
-
Maximum Head: 17 ft
-
Maximum Pressure: 145 psi
-
Phase: 1
-
Temperature Rating: 32 to 104 deg F
-
MPN: PC3F4344IUF00
-
Ambient Temperature: 104°F (40°C) Max, 32°F (0°C) Min
