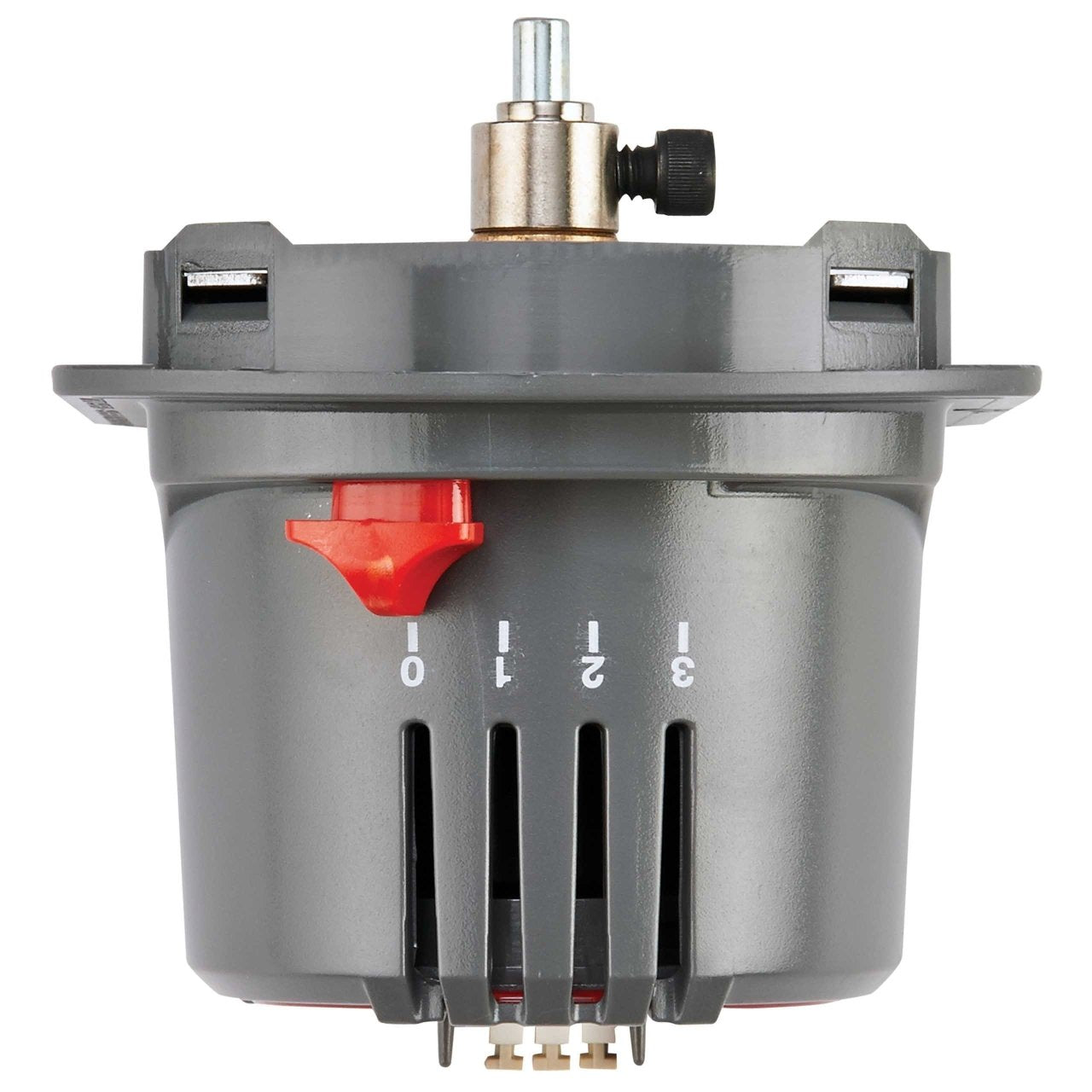

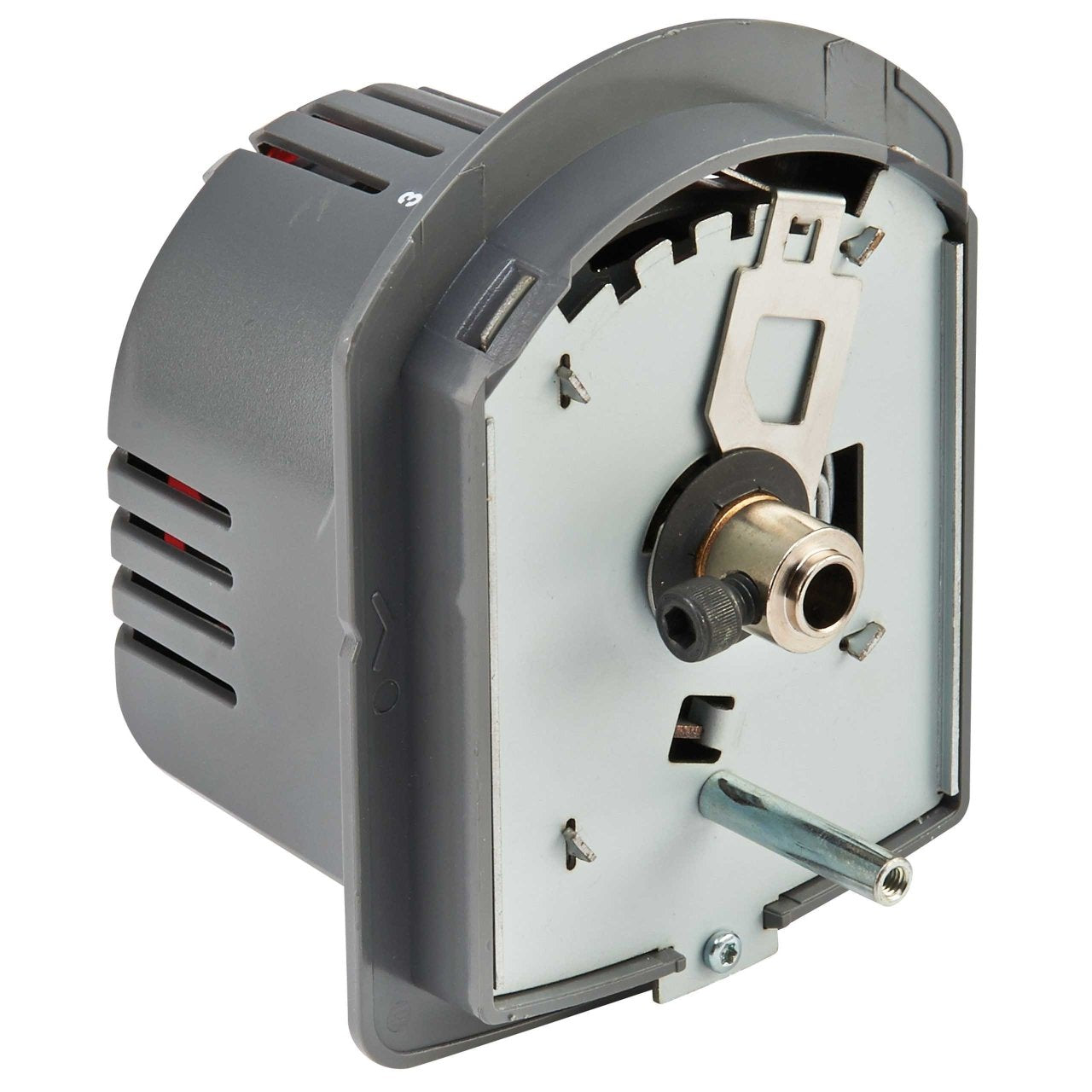

Resideo M847D-VENT/U Replacement Motor for EARD Ventilation Damper

Product Description

The RESIDEO M847D-VENT/U is a two-position, 24 Vac spring return actuator designed as a direct replacement for M847D1004, suitable for ARD, EARD, and ZD residential zone dampers. It features simplified, adjustable range stops to tailor the HVAC damper to customer needs and is equipped with anti-rotation and drive shaft extensions.

• Direct replacement for M847D1004
• Low voltage, spring-return damper actuator
• Equipped with anti-rotation and drive shaft extensions for direct mounting to 7/16 inch diameter coupling style dampers

Product Highlights

This replacement motor is designed for ARD and ZD zone dampers, offering a power-closed, spring-open operation with a 30-second power open and 10-second spring return.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: M847D-VENT/U

Technical Specifications

• Application: Replacement motor for EARD ventilation damper
• Includes: Anti-rotation and drive shaft extensions
• Brand: RESIDEO
• MPN: M847D-VENT/U
• Product Height: 4.97 in
• Product Length: 3.95 in
• Type: Motor
• SubType: Ventilation Damper
• Voltage: 24V
• Package Qty: 1
