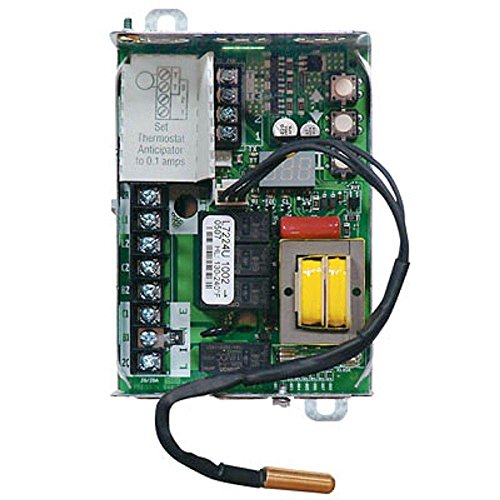

Resideo L7224U1002 Aquastat w/Display Universal Replacement

Product Description

Explore the Resideo L7224U1002, an electronic aquastat controller designed for precision heating system management. This device is vital for maintaining optimal operation in hydronic heating systems and domestic hot water services.

• Adjustable temperature differential from 5 to 25 degrees Fahrenheit.
• High limit protection with integrated low limit and circulator control.
• Universal replacement model, easy to integrate into existing setups.

Product Highlights

Featuring a digital display, the Resideo L7224U1002 offers clear, real-time temperature readings, ensuring efficient and reliable performance.

Product Information

Standard Information

• Brand: Resideo
• MPN: L7224U1002

Technical Specifications

• Application: Hydronic Heating Systems, Domestic Hot Water
• Differential: 130 to 240 Fahrenheit
• Mounting: Vertical
• Dimensions (HxWxD): 7-1/8 inches x 4-1/4 inches x 2-5/8 inches
• Electrical Rating: 7.4 A at 120 Vac, 44.4 A inrush
• Temperature Range: 110 to 220 Fahrenheit
