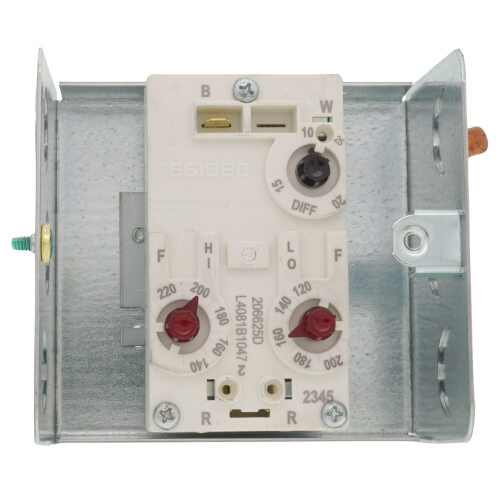

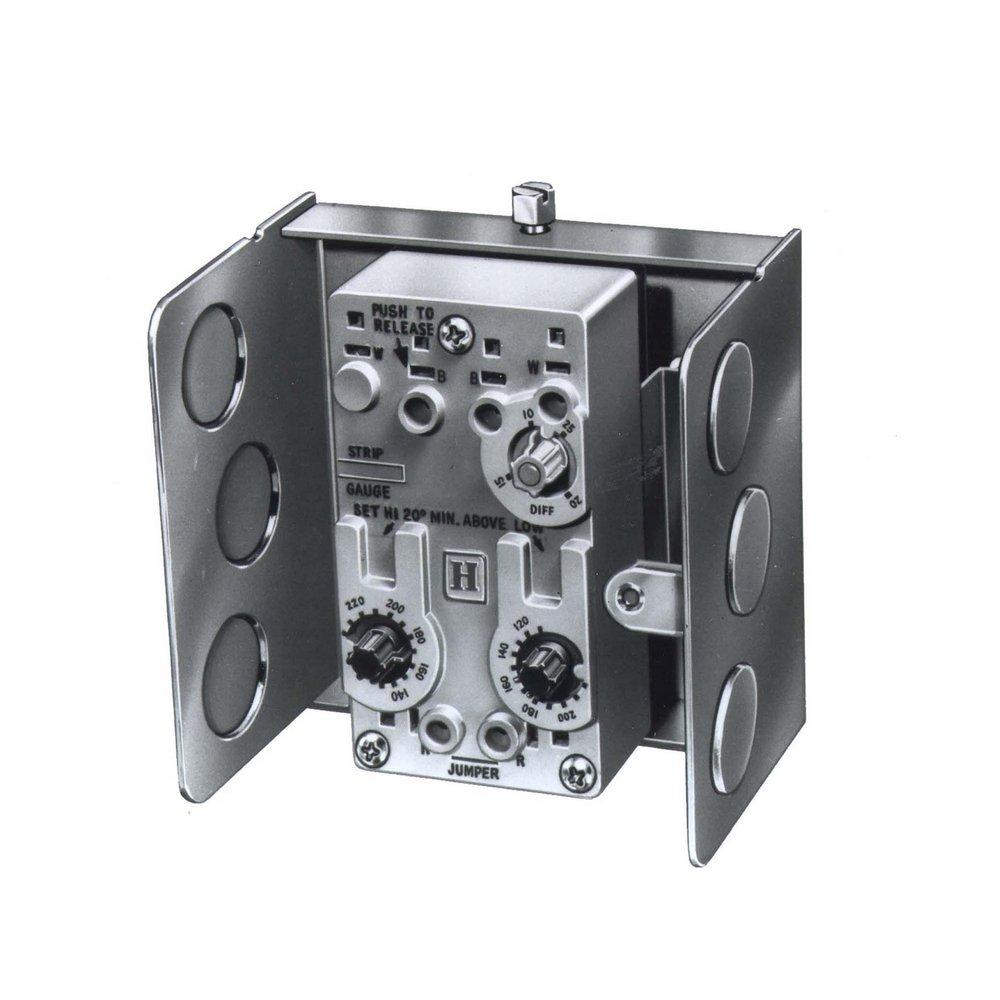

Resideo L4081B1047 Dual AQUASTAT Controller High Limit 10-Degree Fahrenheit

Product Description

The Resideo L4081B1047 Dual AQUASTAT Controller is an essential component for heating systems, adept at managing high limit and circulator controls. This dual function device features a precision sensing element for reliable operation.

• Designed for both high limit control and circulator applications.
• Offers adjustable differential settings for customized operation.
• Supports horizontal mounting with simple push-in terminal connections.

Product Highlights

Resideo's L4081B1047 ensures efficient heating regulation, with dual independent switching and a robust temperature control range from one hundred ten degrees Fahrenheit to two hundred forty degrees Fahrenheit. The liquid-filled sensing element enables precise temperature control and snap action switches contribute to the unit's reliability and longevity.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: L4081B1047

Technical Specifications

• Temperature Range: High Limit 130°F to 240°F, Low Limit 110°F to 220°F
• Differential: High limit: 10°F fixed; low limit: 10-25°F adjustable
• Electrical Ratings: 8A at 120 Vac, 5.1A at 240 Vac
• Switch Action: SPST for high limit and circulator
• Installation: Easy with horizontal orientation and 3/4 in - 14 NPT spud size
• Maximum Ambient Temperature: 150 F at switches, 265 F at sensing element
