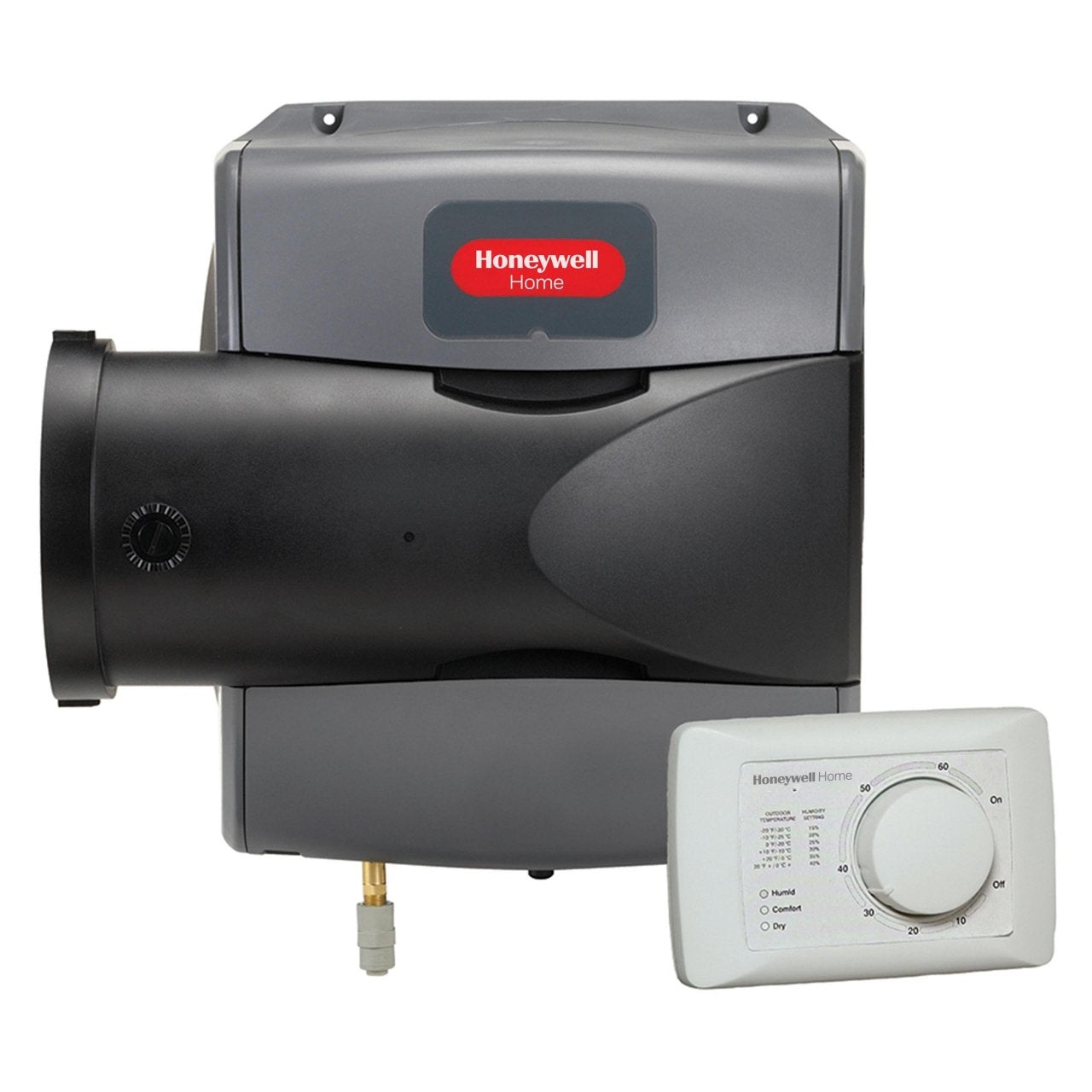

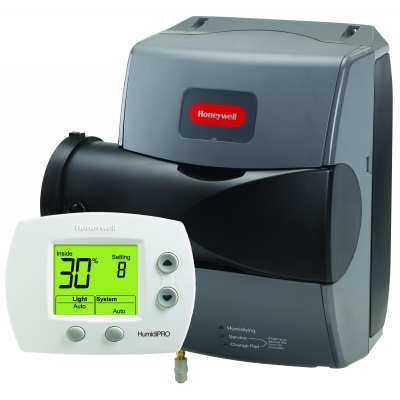

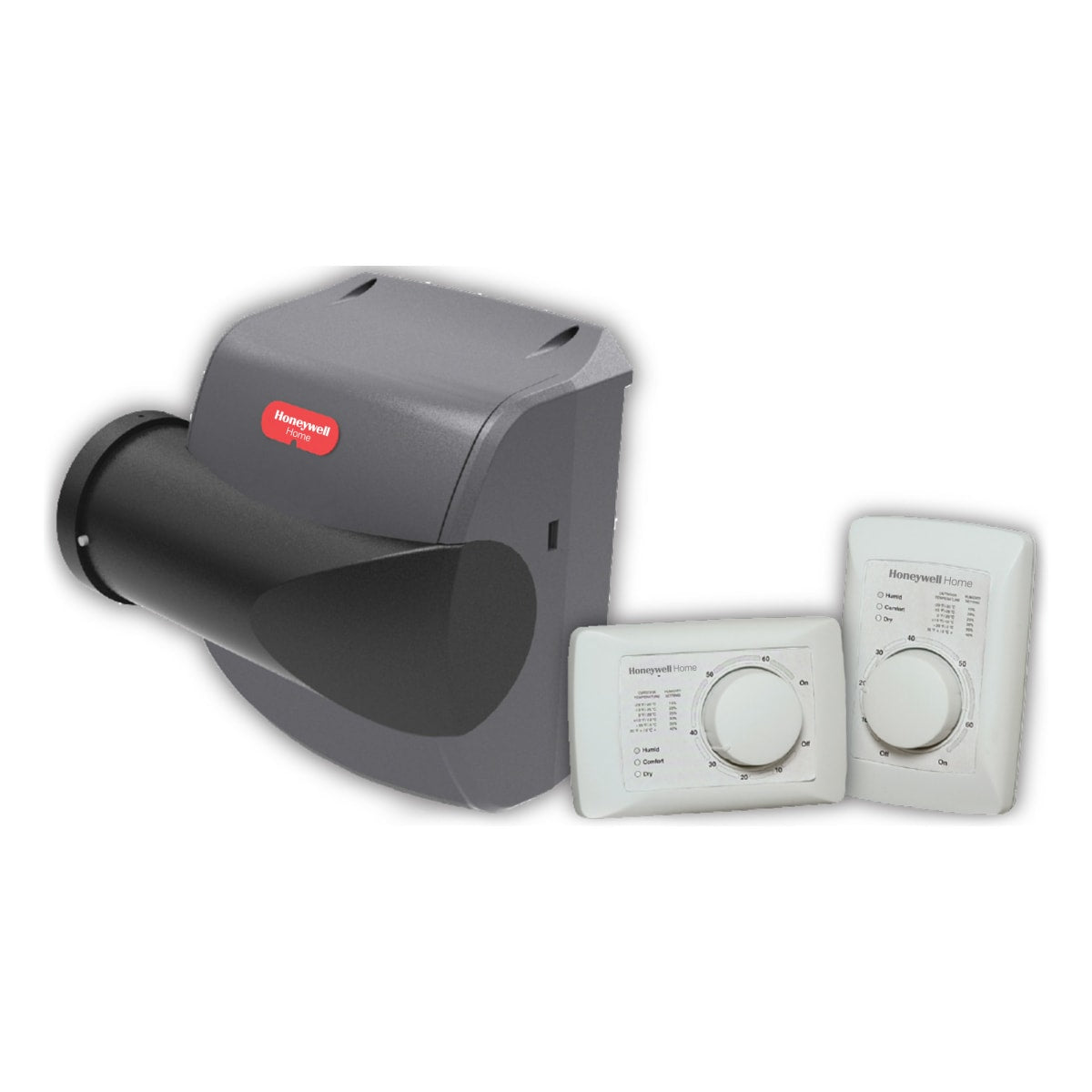

Resideo HE150A1005/U Advanced Small Evaporative Bypass Humidifier

Product Description

The RESIDEO HE150A1005/U advanced small evaporative bypass humidifier helps save water, energy, and money by only running water and air through the system when humidity is needed. It delivers up to 17 gallons of humidification per day and includes a HumidiPRO digital humidistat. Designed for whole house comfort, this humidifier helps manage indoor humidity through your central heating and cooling system.

• Multiple snap-into-place configuration options
• Quick connect gasket for single-step plumbing
• Convenient slide-out pad design for easy replacements

Product Highlights

This bypass humidifier offers easy installation, simple maintenance, and water and energy savings.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: HE150A1005/U

Technical Specifications

• Type: Humidifier
• Color: Gray
• Includes: HumidiPRO Digital Humidity Control
• Warranty: 5 Years
• Application: Whole House Humidification
• Humidifier_Type: Bypass
• Humidifier Capacity: 17 Gallons/Day
• Maximum Room Volume: 3000 Cubic Feet
• Voltage: 24 Volts AC
• Phase: 1
• Frequency: 60 Hz
• Current Draw: 0.625 Amps
