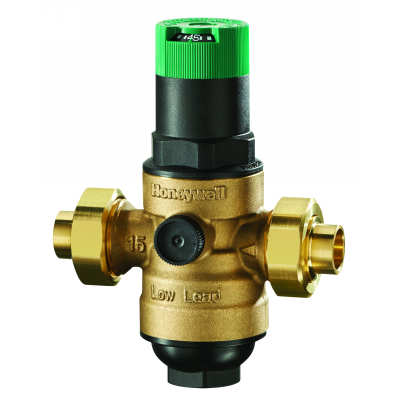

Resideo DS06-102-DUT-LF/U Pressure Regulating Valve 1 in, FNPT, 250 psi

Product Description

The RESIDEO DS06-102-DUT-LF/U pressure regulating valve maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting.

• Dial Calibration (+/-) 4 psi
• Balanced cartridge design allows for thermal expansion properties
• Use expansion tanks and safety valves where applicable

Product Highlights

This pressure regulating valve features a bronze body, 1 inch FNPT connection, and a 250 psi pressure rating. It is ASSE 1003-2020 Listed, CSA Certified (B356-10), IAPMO Listed, NSF/ANSI 61 Compliant, and UPC Listed.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DS06-102-DUT-LF/U
• Country of Origin: US

Technical Specifications

• Warranty Length: 1 Year
• Dial Calibration (+/-): 4 psi
• Standard Approvals: ASSE 1003-2020 Listed, CSA Certified (B356-10), IAPMO Listed, NSF/ANSI 61 Compliant, UPC Listed
• Lead Free Plumbing Code Compliance: The wettable surfaces contain less than 0.25% of lead by weighted average
• Body Material: Bronze
• Domestic/Import: Import
• End Style: FNPT
• Media: Potable Water
• Nominal Size: 1 in
• Pressure Rating: 250 psi
• Temperature Rating: 140 deg F Operating
• Inlet Pressure Max: 250 psi (1723.69 kPa)
• Lead Free: Yes
• Differential Pressure: 14.5 PSI Minimum, 99.97 kPa Minimum
• Connection Size: 1 in
• Gauge Tap Connection: NPT
• Series: DS06
