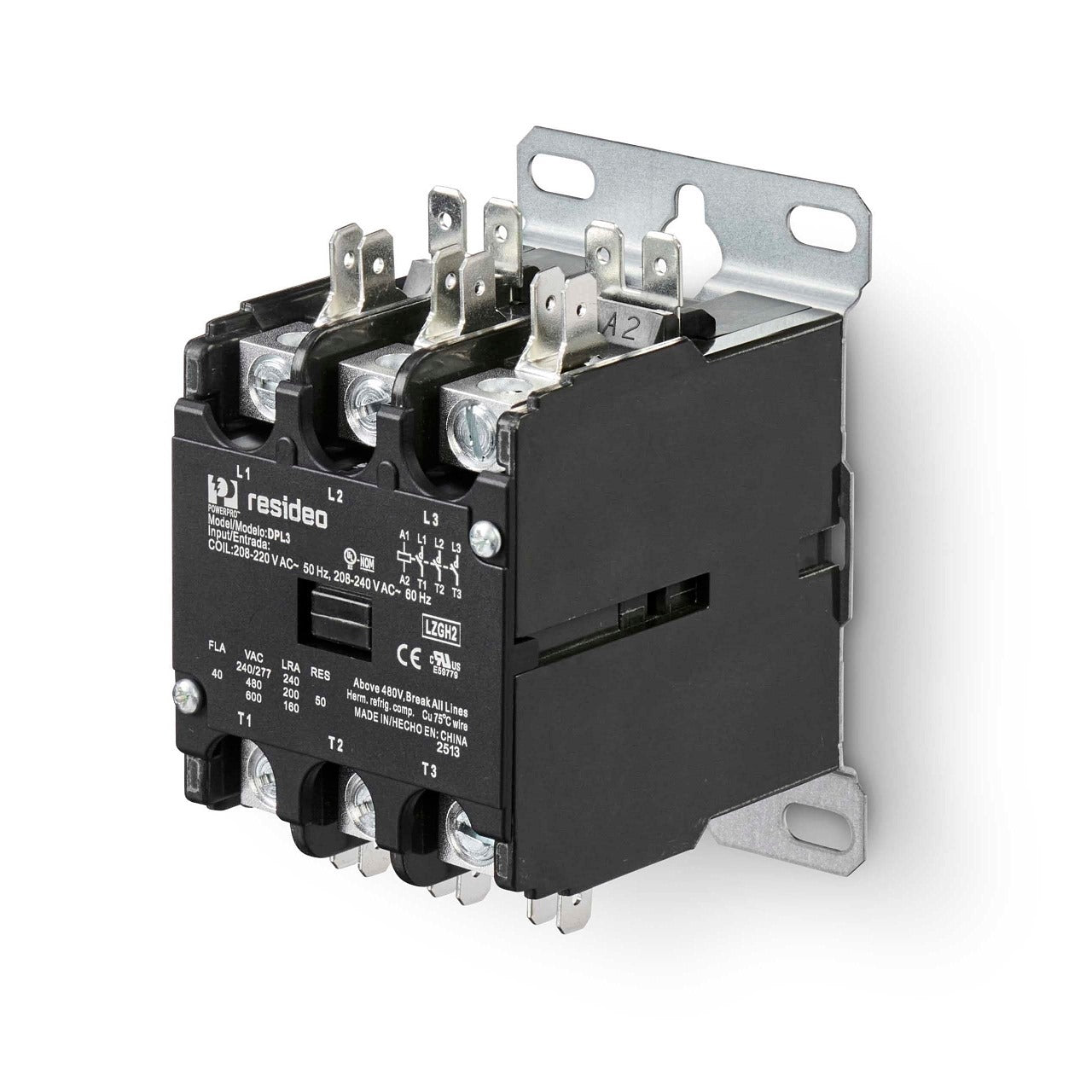

Resideo dpl3030c5002 3-pole 208/240V Definite Purpose Contactor

Product Description

The RESIDEO dpl3030c5002 is a three-pole, electromagnetically operated definite purpose contactor rated for 208 and 240 volts AC. It is designed to switch and start single-phase and three-phase induction motors in HVAC and refrigeration applications. The dpl3030c5002 is compliant with A2L refrigerants, making it suitable for use in systems operating with next-generation low-GWP refrigerants. Licensed HVAC technicians and refrigeration service pros are the primary installers of this class of contactor.

This contactor is used in commercial and residential HVAC equipment where reliable motor starting and switching is required. Typical applications include condensing units, compressor circuits, and refrigeration systems that have transitioned to or are being designed for A2L refrigerant compatibility. The three-pole configuration handles line-side switching across all legs of the load circuit, which is standard practice in many split-system and package unit installations.

Key Features

• Three-pole configuration for full multi-leg motor circuit switching
• Rated for 208 and 240 volts AC operation
• Electromagnetically operated for reliable, repeatable engagement
• A2L refrigerant compliant for use in modern low-GWP refrigerant systems
• Definite purpose design matched to HVAC and refrigeration motor load requirements

Compatibility

Designed as an OEM-style replacement for three-pole definite purpose contactor applications in residential and light commercial HVAC and refrigeration equipment operating at 208 or 240 volts AC.

Installation Notes

Installation should be performed by a licensed HVAC technician or electrician. Disconnect and lock out all power to the unit before removing the existing contactor or handling line-side terminals. Follow applicable NEC guidelines for load ratings, wire sizing, and terminal torque requirements. Verify coil voltage rating matches the control circuit voltage before energizing the replacement contactor.
