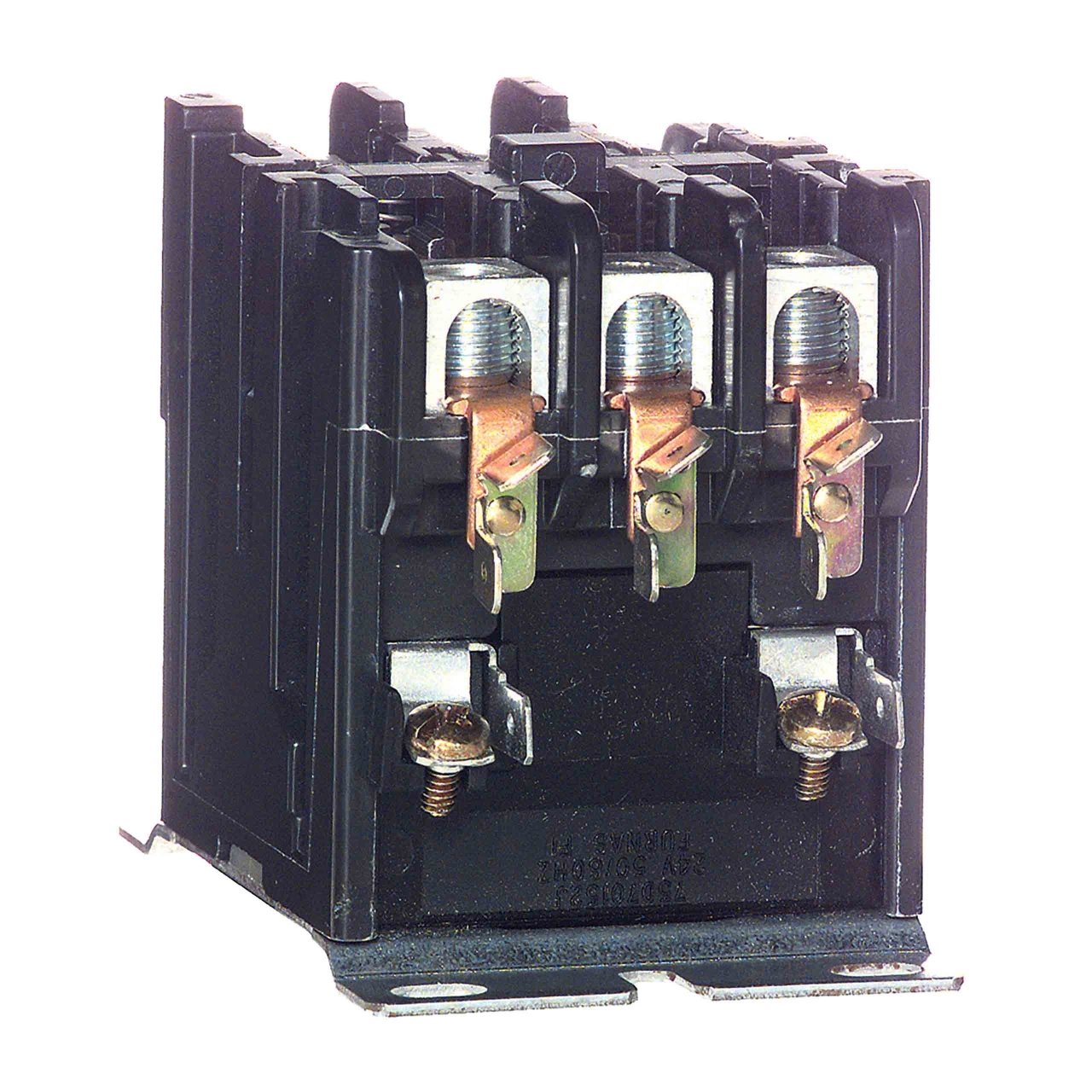

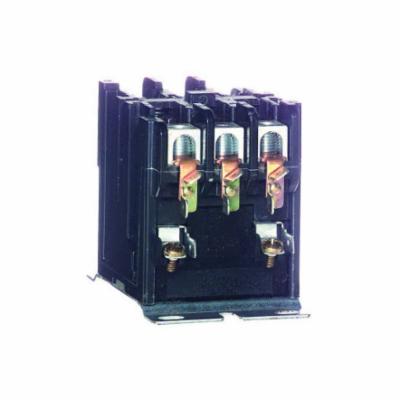

Resideo DP3060B5010/U contactor definite purpose 3 pole 60 amp 120 volt multiple position

Product Description

The RESIDEO DP3060B5010/U contactor is an electrical device designed for industrial and automation applications. This 3-pole definite purpose contactor provides precise power control and switching capabilities for various electrical systems. It handles up to 60 amps of current at 120 volts, making it suitable for high-power applications like HVAC systems, motor controls, and lighting panels. Its multiple positions offer flexibility in controlling different circuits or loads simultaneously, ensuring reliable operation in demanding environments.

• Three-pole configuration for power control in electrical systems.
• Handles up to 60 amps of current at 120 volts for high-power applications.
• Multiple positions for controlling different circuits or loads simultaneously.

Product Highlights

Robust and versatile electrical device for precise power control in industrial and automation systems.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DP3060B5010/U
• Country of Origin: Import

Technical Specifications

• Product Type: Contactor Definite Purpose
• Number of Poles: 3
• Coil Voltage: 120 Volt
• Positions: Multiple
• Certifications/Approvals: UL Component Recognized: File No. 14480, Guide No. NLDX2|CSA Certified: File No. LR6535|CE Compliant|RoHS Compliant|ARI 780/790
• Contact Electrical Rating AFL: 60 A @ 240/277 Vac, 480 Vac, 600 Vac
• Contact Electrical Rating Resistive: 75 A @ 277 Vac, 480 Vac, 600 Vac
• Coil Connection Size: 1/4 in, #6
• Coil Connection Type: Quick Connect, Screws
• Operating Frequency: 50 Hz, 60 Hz
• Connection Type: Lug Connectors
• Switch Action: DPST
• Ambient Operating Temperature (Min): -13 °F (-25 °C)
• Ambient Operating Temperature (Max): 158 °F (70 °C)
• Product Height: 3.3 in (84 mm)
• Product Width: 4 in (102 mm)
• Product Depth: 2.4 in
• Series: PowerPro
• Category: HVAC Contactors
• Full Load Current - Inductive: 60 A
• Terminal Connection Type: Box Lug
