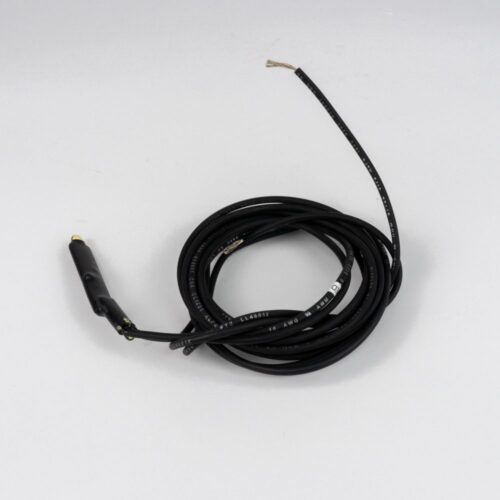

Resideo C7089U1006 Outdoor Sensor For VisionPro Stat

Product Description

The RESIDEO C7089U1006 is a remote outdoor temperature sensor designed to display the current outdoor temperature on compatible thermostats. It supports dual fuel applications and can manage auxiliary heat lockout in heat pump systems. This sensor is factory calibrated and includes 60-inch lead wires, allowing for a maximum wire run of 200 feet. It is compatible with T6, T7, T8 Series Thermostats, HZ432 Zone Panel, and H6062 HumidiPRO controllers.

• Mounting clip allows easy sensor positioning on siding or soffit.
• Includes 60-inch lead wires; maximum wire run of 200 feet.
• Factory calibrated, requiring no field calibration.

Product Highlights

Displays outdoor temperature and supports dual fuel and heat pump auxiliary heat management.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: C7089U1006

Technical Specifications

• Model: C7089U1006
• Manufacturer Code: HW
• Manufacturer: Resideo
• Length: 4.1 in
• Width: 5.1 in
• Height: 1.6 in
• Part Number: 096780
• Compatible With: T6, T7, T8 Series Thermostats, HZ432 Zone Panel, H6062 HumidiPRO controller
• Color: Black
• Operating Temperature Range: -40 to 120 deg F
• Accuracy: +/-1.5 %
• Humidity Rating: 5 to 95 %
• Lead Length: 5 ft
• Mounting Type: Vertical/Wall
• Display Temperature Range: -40 to 127 F (-40 to 53 C)
