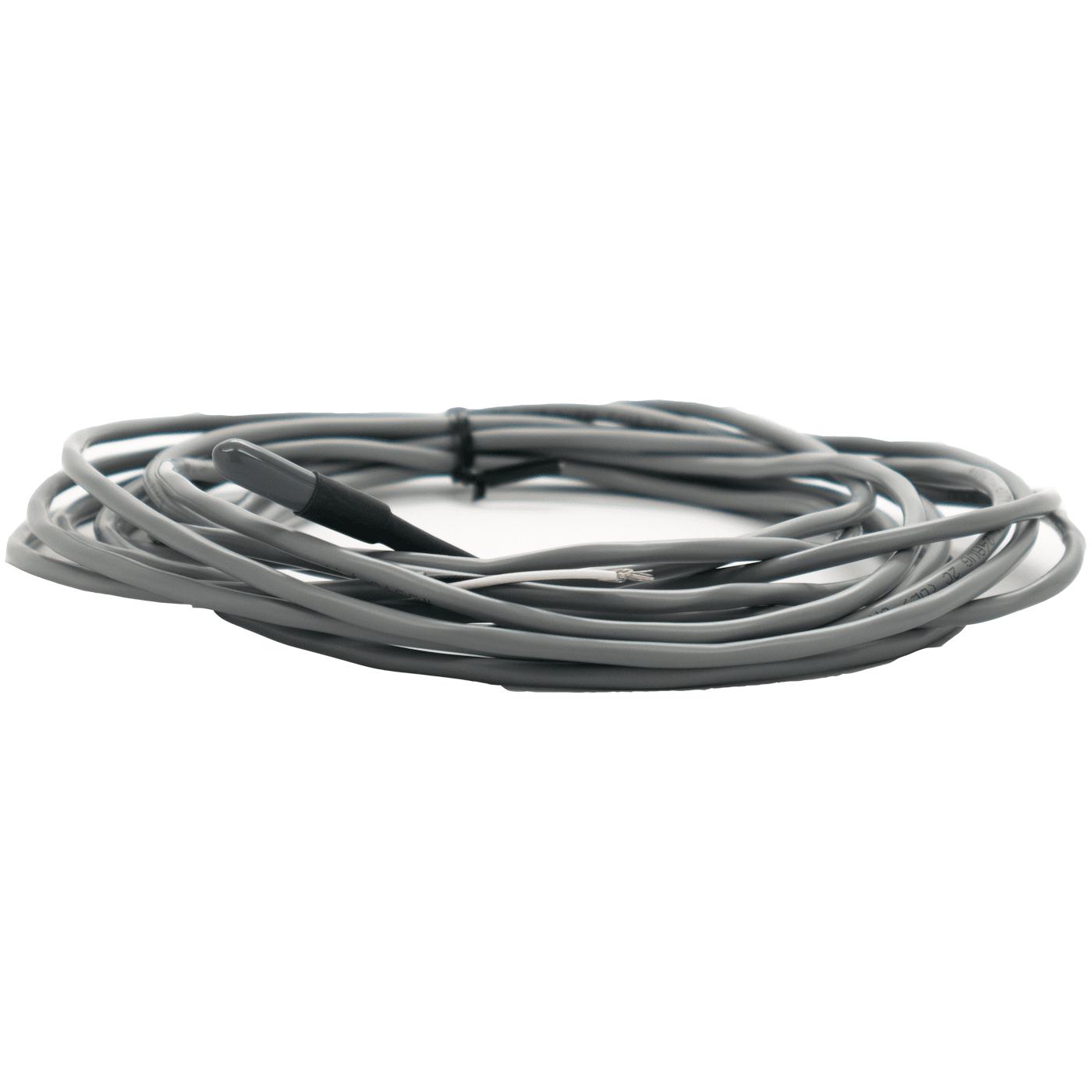

Resideo Braukmann T280R Remote Temperature Probe

Product Description

The Resideo Braukmann T280R is a remote temperature probe suitable for Honeywell sensors including the 5821, T280, and TS300. This device allows temperature detection away from the primary sensor, enabling flexibility in monitoring environments. The probe supports a maximum cable length of three hundred feet when using shielded 24AWG or larger cable.

• Applicable for use with Honeywell 5821, T280, and TS300 sensors
• Water-resistant design for reliability in various environments
• Extendable for flexible installation options

Product Highlights

Designed for efficient remote temperature measurement, the T280R is essential for HVAC professionals seeking accurate data collection.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: T280R

Technical Specifications

• For Use With: T280, 5821, TS300
• Resistance @ 25°C: 100 KΩ
• Tolerance (0°C to 70°C): 0.2°C
• Temperature Rating: -40°C to +60°C maximum
• Cable Type: 22-24 AWG, 7 strand, 2 conductor with outer jacket
