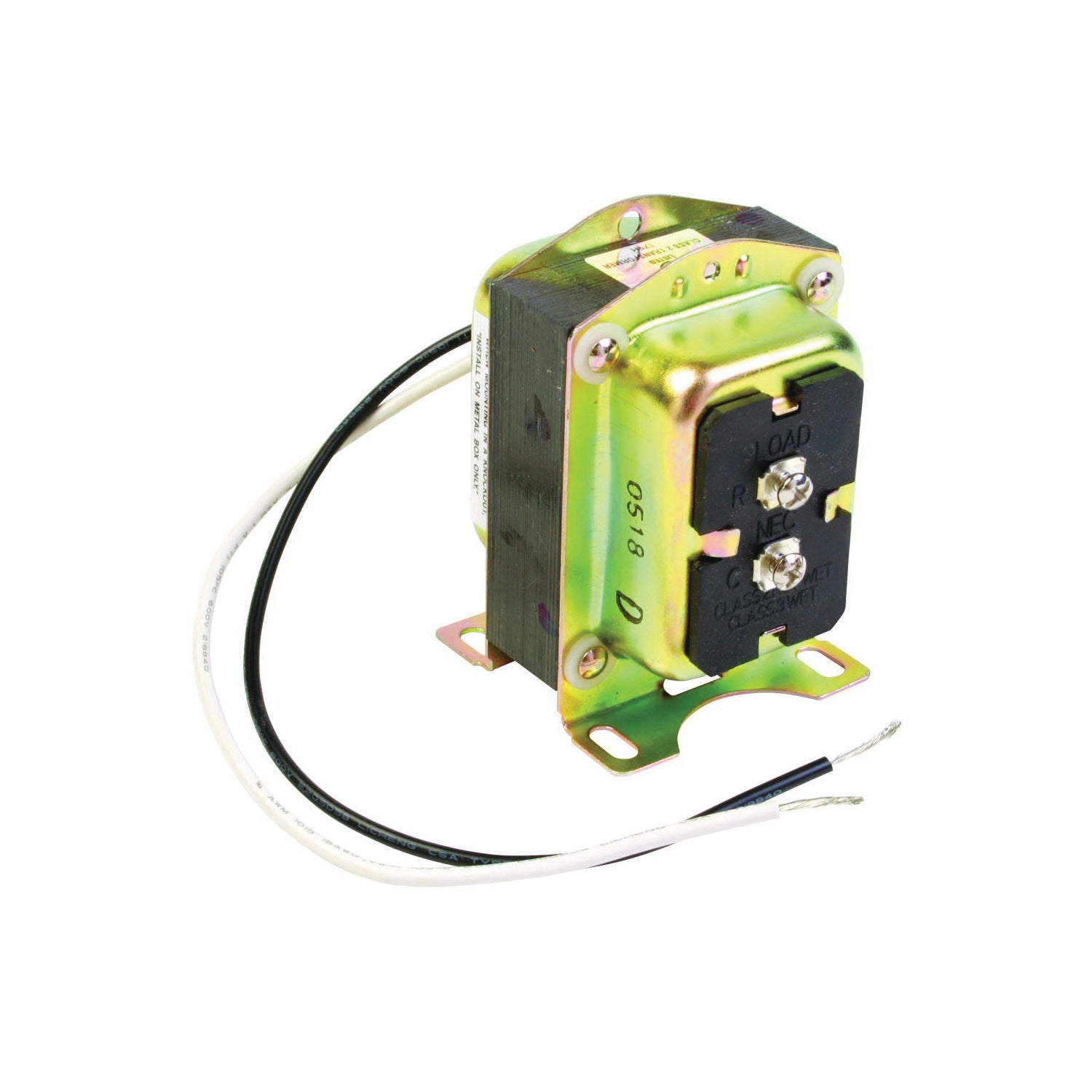

RESIDEO AT140A1000/U Transformer With 9 Inch Lead Wires 120V

Product Description

The Resideo AT140A1000/U is a transformer designed for reliable power conversion in industrial applications. This transformer features a primary voltage of 120 volts and a secondary voltage of twenty-seven volts alternating current (VAC) with a power rating of forty volt-amperes (VA). It is built for durability and provides efficient performance even in demanding environments.

• Primary Voltage: 120 VAC
• Secondary Voltage: 27 VAC
• Power Rating: 40 VA

Product Highlights

This transformer uses universal mounting methods such as plate, foot, or knockout installations, making it easy to integrate into various setups. The included nine-inch lead wires provide flexibility during installation, while the frequency rating of sixty hertz ensures stable operation across applications.

Product Information

Standard Information

• Brand: Resideo Technologies
• Manufacturer Part Number: AT140A1000/U

Technical Specifications

• Application: General Purpose Applications
• Dimensions: 2-3/8 inches W x 3-1/8 inches D x 3-3/16 inches H
• Domestic/Import: Import
• Frequency Rating: 60 Hz
• Includes: Metal End Bells and (2) Screw Terminals Secondary
• Mounting Type: Universal
• Power Rating: 40 VA
• Secondary Voltage: 27 VAC
• Specifications: -20 to 105 deg F
• Standards/Approvals: CSA Certified | UL File No. E14881 | NEC Class 2 Not Wet Class 3 Wet
