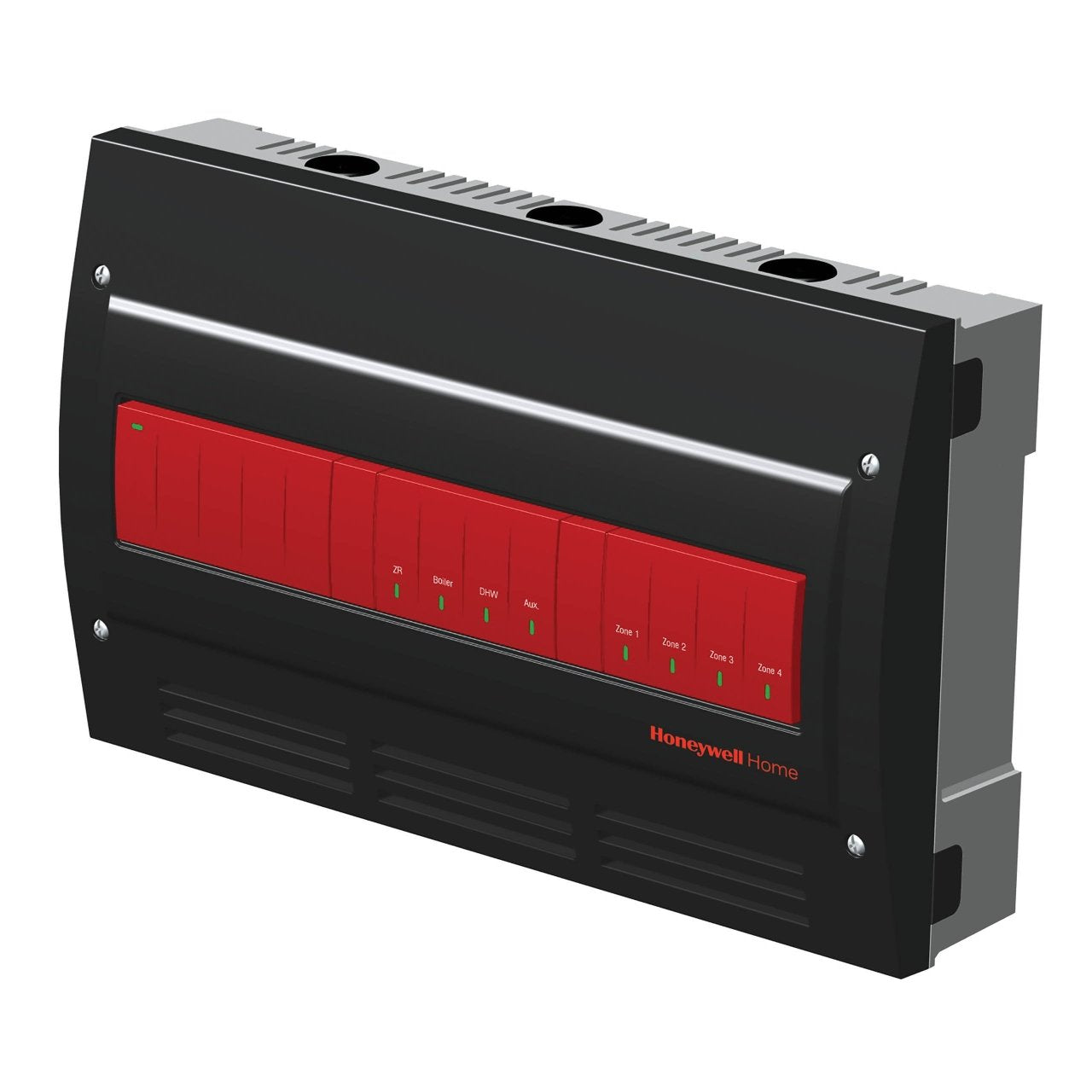

Resideo AQ25044B 4 Zone Panel USEw/4wireVal/EndSwt

Product Description

The Resideo AQ25044B 4-Zone Security Panel provides a security solution for industrial and commercial facilities. This panel features four programmable zones, allowing customization to specific needs. It supports various sensors and devices, including door and window contacts, motion detectors, and smoke detectors. It also includes a built-in siren and strobe light.

• Four programmable zones
• Supports various sensors and devices
• Built-in siren and strobe light

Product Highlights

The AQ25044B panel offers reliable protection with advanced features and user-friendly interface, making it suitable for industrial engineers and maintenance professionals.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: AQ25044B

Technical Specifications

• Item Number: AQ25044B
• Brand: Resideo
• Product Item: AQ25044B
• Manufacturer: Resideo
• Application: Boiler control for hydronic zoning systems
• Product Features: Use with AQ1000 two-wire communicating thermostats, or most dry contact digital thermostats, Offers zoning control for up to four zones and controls up to two stages of heat from a single thermostat, Can expand up to 16 zones with AQ255 or AQ257 or up to 64 zones with AQ254 Add-A-Temp panels, Line or low-voltage output for zoning equipment, including pumps or valves, Features zone synchronization through the zone or Greatest Demand control, Includes domestic hot water priority, priority override protection and boiler short cycling protection, Automated test feature for quick start-up and simplified troublshooting
• Approvals and Standards: CSA C/US Certified to CSA and UL Standards, File No. LR76030
• BB - Com Terminal: Low Voltage, Class II, 2-Wire polarity-insensitive, Digital Communicating Link to other Control or Zoning Modules
• Demand Input: Heat Demand (Thermostat R-W) and DHW Demand, External dry contacts connection only
• Dip Switches: Yes
• Output Rating: Boiler (T-T): 24 V AC 0.5 A/12 V A, Boiler Pump: 120 V AC 250 V AC/5 A/1/3HP, DHW Pump/Valve: 120 V AC/250 V AC 5 A/1/3 HP, Auxiliary Pump: Dry contact output, 120 V AC/250 V AC 5 A/ 1/3 HP
• Postpurge: 30 seconds (sent to DHW tank or Zone of Greatest Demand - selectable)
• Compatible With: AQ1000 Series 2-wire thermostats, Most digital thermostats
• For Use With: Boiler Control for Hydronic Zoning Systems
• Warranty: 2 Years
• Pump Valve Exercise: 30 Seconds per 2 Weeks of space heating inactivity
• ZR- ZC Terminals Contact Rating: 120 V AC to 240 V AC, 1/3 HP
• Product Depth: 3.38 in, 8.5 cm
• Product Height: 8 in, 20.3 cm
• Product Width: 13 in, 33 cm
• Product Line: Aquatrol
• Voltage: 120 Volts
• Phase: 1
• Frequency: 60 Hz
• UL Listed: Yes
• CSA Listed: Yes
