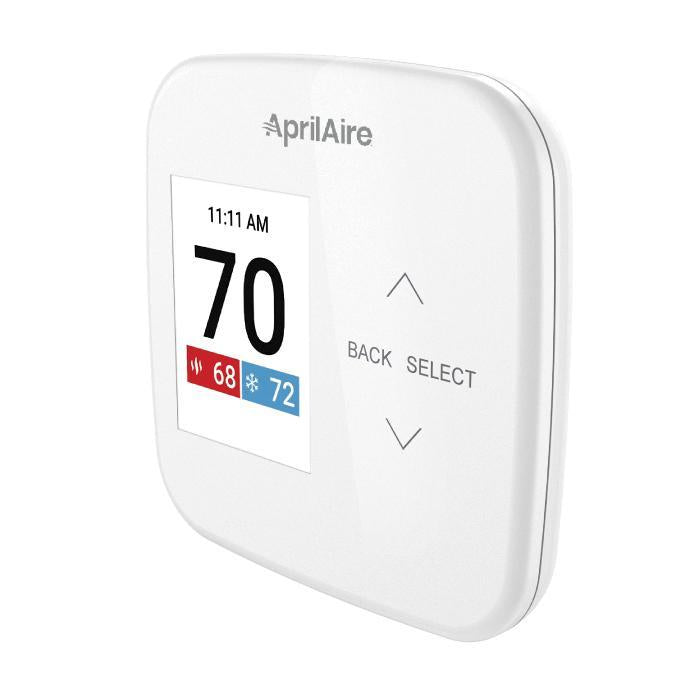

Research Products S86NMU Thermostat Universal Multi-Stage 2H/2C,4H/2C

Product Description

The Research Products S86NMU Thermostat Universal Multi-Stage 2H/2C,4H/2C is designed for universal application. This S86 Series thermostat operates at 24 V and 2.5 A. It features a color graphical display and offers 7-day programmability. The thermostat can be wall mounted and includes a wireless remote sensing element.

• Features real language menus for quick, intuitive setup.
• Offers basic and advanced HVAC installer settings for streamlined installation.
• Equipped with a color graphical display for easier reading.

Product Highlights

Universal multi-stage thermostat with 7-day programmability, color graphical display, and wireless remote sensing.

Product Information

Standard Information

• Brand: RESEARCH PRODUCTS
• Manufacturer Part Number: S86NMU

Technical Specifications

• Series: S86 Series
• Voltage Rating: 24 V
• Amperage Rating: 2.5 A
• Programmability: 7-Day Programmable
• Stages: 2 Cool/2 Heat
• Sensing Element: Wireless Remote
• Display Type: Color Graphical
• Temperature Settings: 40 to 90 deg F
• Temperature Rating: 32 to 120 deg F
• Humidity Rating: 5 to 90% RH
• Mounting Type: Wall
• Terminal Designation: RH/RC/W/Y/G/C/O/B/L/W2/Y2/T1/T2
• Brand Name: Research Products
