Research Products 6814 Rectangular Zone Damper 24V

Product Description

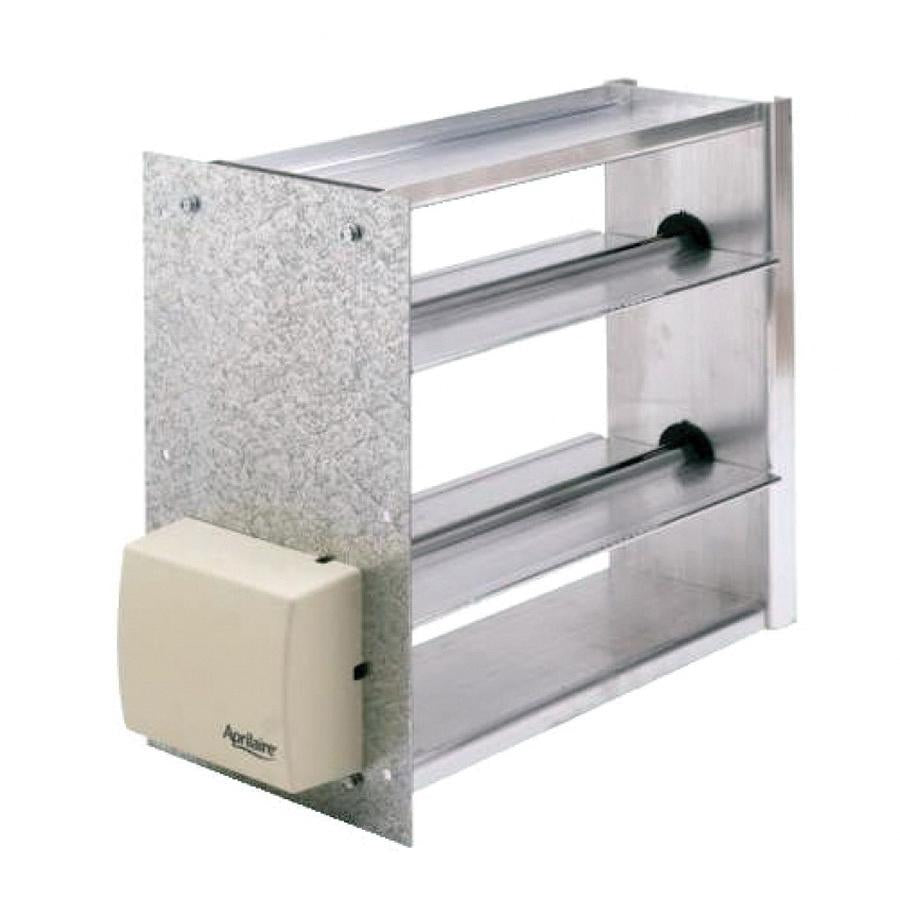

The RESEARCH PRODUCTS 6814 is a rectangular zone damper designed for use in residential and light commercial HVAC zoning systems. It features an aluminum frame and blade construction with a power closed, spring open motor that operates on 24 VAC at 60 Hz, drawing 6 watts and 12 volt-amps. The 2-wire electrical connection simplifies integration into standard low-voltage zoning control panels. Bottom mounting hardware accommodates typical duct installation orientations. The damper is rated for a maximum static pressure of 1 inch water column, making it suitable for residential forced-air ducted systems. Licensed HVAC technicians are the primary installers for this type of component.

This zone damper is used in forced-air ducted HVAC systems where independent temperature control is required across multiple zones. It installs directly into rectangular duct sections and is actuated by the zoning control panel through the 2-wire low-voltage connection. The spring open, power closed motor design means the damper defaults to the open position on power loss, which supports fail-safe airflow in residential zoning applications. It is suited for new construction zoning layouts and retrofit installations in existing duct systems.

Key Features

• Power closed, spring open motor ensures fail-safe open position on loss of power
• 24 VAC motor operates at 60 Hz, 6 watts, 12 volt-amps for compatibility with standard low-voltage zoning controls
• Aluminum frame and blade construction for lightweight durability in duct environments
• 2-wire electrical connection simplifies wiring to zoning control panels
• Bottom mounting orientation for straightforward duct installation
• 1 inch water column maximum pressure rating suitable for residential forced-air systems

Compatibility

Designed as an OEM-style replacement or new-installation zone damper for rectangular duct zoning systems using standard 24 VAC low-voltage zoning controls.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect power to the zoning control panel and air handler before beginning installation. The damper mounts from the bottom of the duct section; verify duct dimensions match the damper frame before cutting. Low-voltage wiring should comply with NEC Class 2 circuit requirements for 24 VAC control wiring.

Technical Specifications

• Shape: Rectangular
• Motor Voltage: 24 VAC at 60 Hz
• Motor Power: 6 watts
• Motor VA Rating: 12 volt-amps
• Motor Type: Power Closed, Spring Open
• Electrical Connection: 2-Wire
• Mounting Type: Bottom
• Frame and Blade Material: Aluminum
• Maximum Pressure Rating: 1 inch water column

Standard Information

• Brand: RESEARCH PRODUCTS
• Manufacturer Part Number: 6814
