Renishaw R-CT-40-30-6 Cmm Tension Clamp 40mm M6

Product Description

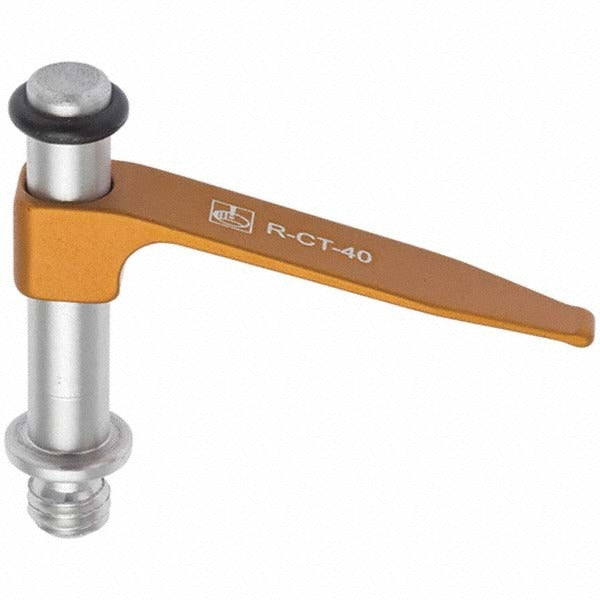

The RENISHAW R-CT-40-30-6 is a tension clamp assembly designed for use with coordinate measuring machine (CMM) fixturing setups. The kit includes a 40 mm clamp and a 30 mm post, with an M6 stud thread size for secure attachment to compatible fixture bases. This component is installed by metrology technicians and quality-control professionals to hold workpieces firmly in place during CMM measurement cycles. Proper clamping is critical to repeatable, accurate measurement results, and the R-CT-40-30-6 provides a straightforward mechanical solution for that requirement.

This tension clamp is intended for use with CMM Equator fixtures and similar modular fixturing systems commonly found in precision measurement environments. It suits both production-floor CMM setups and dedicated metrology labs where consistent part location and clamping force are required across repeated measurement runs. The M6 thread size is a widely used standard in CMM fixture tooling, making this clamp compatible with a broad range of modular fixture plates and bases that accept M6 hardware.

Key Features

• Includes 40 mm clamp and 30 mm post in a single package
• M6 stud thread size for integration with standard CMM fixture systems
• Designed for use with CMM Equator fixture platforms
• Compact form factor suited to close-tolerance fixturing layouts
• UNSPSC Code 41111900 for procurement system compatibility

Compatibility

Designed for use with CMM Equator fixtures. Suitable for modular CMM fixturing systems that accept M6 threaded hardware.

Installation Notes

Installation is performed by metrology technicians or quality-control personnel in a CMM or measurement lab environment. Power down or home the CMM arm before making any fixture changes on the measuring table. Ensure the M6 thread is fully engaged and the post is seated squarely before torquing to the fixture plate. Verify workpiece location and clamping stability before initiating any measurement routine.
