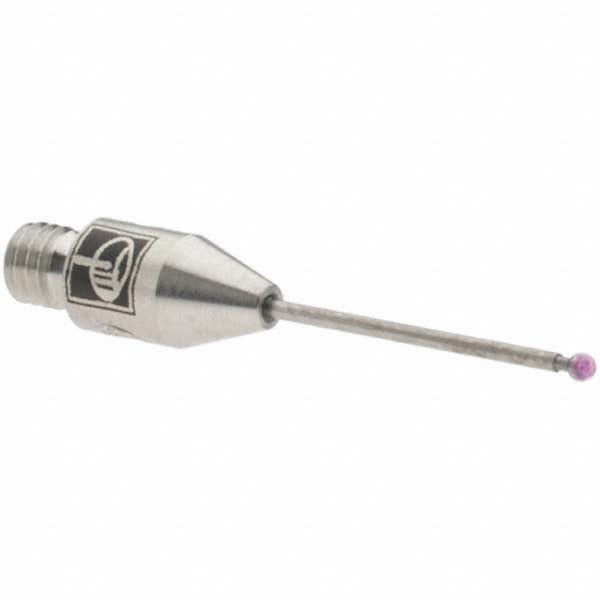

Renishaw A-5004-2442 Cmm Stylus Probe

Product Description

The RENISHAW A-5004-2442 is a CMM stylus probe designed for use with coordinate measuring machines. Stylus probes serve as the physical contact point between the CMM and the workpiece, transmitting precise positional data back to the measurement system. This part is installed and maintained by metrology technicians, quality engineers, and precision measurement professionals in manufacturing and inspection environments. At 0.05 pounds, it is a lightweight replacement component suited for accurate, repeatable measurement work.

CMM stylus probes are used in dimensional inspection applications across industrial manufacturing, aerospace, automotive, and precision machining environments. This probe mounts to a CMM probe head or extension and contacts the workpiece surface during scanning or touch-trigger measurement routines. It is appropriate for both shop-floor and laboratory CMM setups where consistent tip geometry and secure stylus seating are required.

Key Features

• Designed as a direct replacement CMM stylus probe for coordinate measuring machine applications
• Lightweight construction at 0.05 pounds to minimize measurement deflection
• Sold as a single unit, allowing targeted replacement without overstocking
• Compatible with RENISHAW CMM probe systems as an OEM-style replacement component

Compatibility

Designed as an OEM-style replacement CMM stylus probe for use with RENISHAW coordinate measuring machine probe systems. Verify thread type, tip diameter, and stem length against your existing configuration before installation.

Installation Notes

CMM stylus probes are installed by metrology technicians or quality assurance personnel familiar with coordinate measuring machine maintenance procedures. Power down or place the CMM in a safe parked position before changing stylus components to avoid probe crashes or damage to the probe head. Use the appropriate stylus wrench or tool recommended by the CMM manufacturer to achieve secure seating without overtightening. After installation, perform a full probe qualification routine to establish accurate tip position data before resuming measurement.
