Renishaw A-5003-2283 Cmm Stylus Extension Carbon Fiber

Product Description

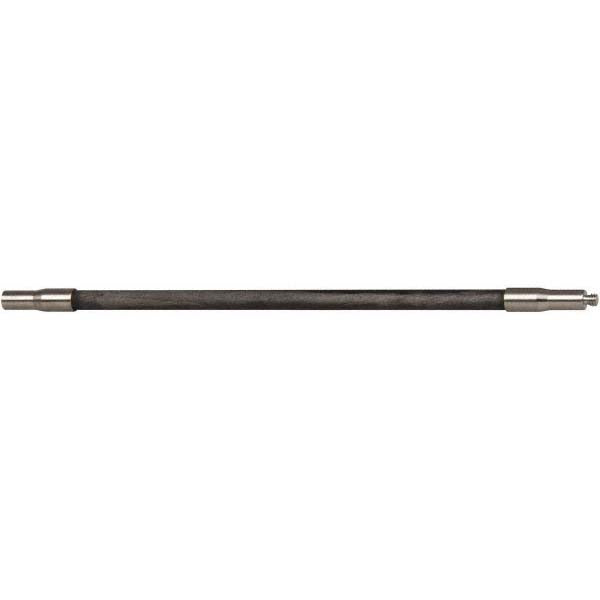

The RENISHAW A-5003-2283 is a carbon fiber CMM stylus extension designed for use with coordinate measuring machine (CMM) setups requiring M2 female-to-M2 male thread connections. With an overall length of 3.543 inches (90.00 mm) and a stem diameter of 0.118 inches (3.00 mm), this extension allows metrology technicians to reach recessed features or deep bores that standard styli cannot access. Carbon fiber construction keeps the extension lightweight while maintaining the rigidity needed for repeatable, high-accuracy measurements. This part is sold individually and suited for precision measurement environments in manufacturing and quality control settings.

This stylus extension is used in CMM applications where additional reach is needed between the probe head and the stylus tip. Typical scenarios include inspection of deep cavities, step features, and undercuts on machined or formed components. The M2 thread interface is a widely used standard in CMM stylus systems, making this extension compatible with a broad range of probe configurations. It is installed by metrology technicians and quality engineers operating CMMs in production and inspection environments.

Key Features

• Carbon fiber stem construction for lightweight rigidity and minimal measurement error
• M2 female-to-M2 male thread interface for integration into standard CMM stylus stacks
• Overall length of 3.543 inches (90.00 mm) for extended reach into deep or recessed features
• Stem diameter of 0.118 inches (3.00 mm) for access to tight geometric features
• Sold individually - no minimum bundle required

Compatibility

Designed as an OEM-style replacement and extension component for CMM stylus assemblies using M2 thread connections. No specific compatible model numbers were provided in the product data.

Installation Notes

CMM stylus extensions are installed by metrology technicians familiar with probe qualification procedures. Power down or pause the CMM and follow the machine manufacturer's probe change protocol before installing or removing stylus components. Ensure all M2 threaded connections are clean and free of debris before assembly to avoid measurement error caused by seating issues. Re-qualify the probe stylus after any change to the stylus stack to maintain measurement accuracy.
