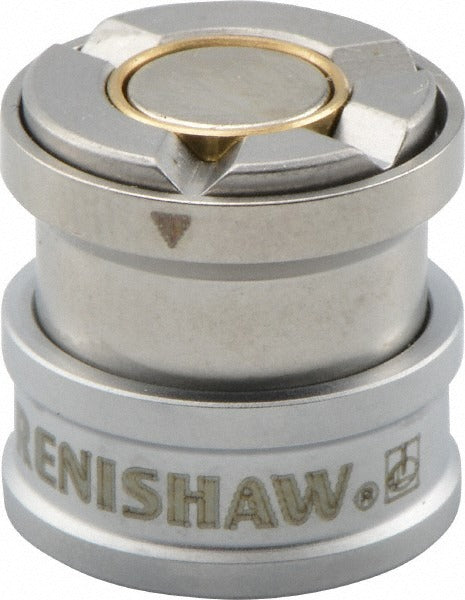

Renishaw A-1207-0010 Cmm Standard Force Stylus Module

Product Description

The RENISHAW A-1207-0010 is a standard force stylus module designed for use with coordinate measuring machine (CMM) probing systems. It functions as a replaceable module that sets the measuring force applied during contact probing, directly affecting dimensional accuracy and repeatability. This module integrates with the TP200 modular probe system, making it a line-replaceable unit for metrology technicians and CMM operators working in precision inspection environments. At 2 pounds, the module is compact and service-ready for bench-level installation without specialized lifting equipment.

This stylus module is intended for coordinate measuring machine applications where consistent stylus force control is critical to measurement integrity. It is suited for both production floor CMMs and quality lab installations using the TP200 probe platform. Typical installation scenarios include routine module replacement during probe maintenance cycles and stylus system reconfiguration for different workpiece geometries. Metrology technicians and CMM programmers are the primary installers.

Key Features

• Standard force configuration for repeatable contact probing on CMM systems
• Designed for direct use with TP200 modular probe assemblies
• Line-replaceable module design supports fast field swaps during maintenance
• Compact form factor at 2 pounds for easy bench handling
• OEM-specification module maintains measurement accuracy and probe system integrity

Compatibility

Designed for use with RENISHAW TP200 modular probes as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified metrology technician or trained CMM operator familiar with TP200 probe system procedures. Before replacing the stylus module, power down the CMM and follow the machine builder's lockout procedure to prevent unintended axis movement. Handle the module carefully to avoid contaminating the seating surfaces, as debris can affect force consistency and probe qualification results. After installation, re-qualify the probe system using the CMM controller before returning the machine to production use.
