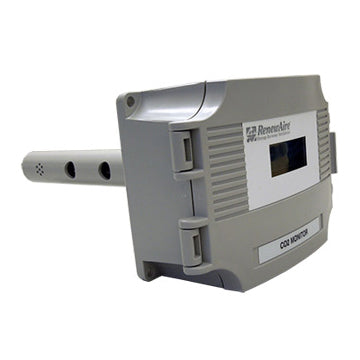

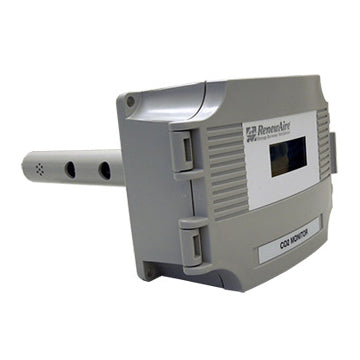

Renewaire 131305 CO2-D carbon dioxide sensor duct mount

Product Description

The Renewaire 131305 Carbon Dioxide Control is a precision duct-mounted CO2 sensor designed for demand-controlled ventilation in residential, commercial, and institutional HVAC systems. It continuously monitors carbon dioxide levels in return air ducts, improving indoor air quality and reducing energy use. Featuring a dual-channel NDIR sensor, it ensures long-term accuracy and reliability, performing well in various settings like classrooms and offices. This device supports intelligent ventilation response to occupancy.

• Adjustable control from 600-2000 PPM CO2
• Features a digital display for real-time readings
• Includes a Computer/Building Automation System interface for data and control

Product Highlights

Self-calibrates during periods of low occupancy to maintain accuracy.

Product Information

Standard Information

• Brand: RENEWAIRE
• Manufacturer Part Number: 131305
• Country of Origin: Canada

Technical Specifications

• Gas Detected: Carbon Dioxide (CO2)
• Sensor Type: Dual-channel NDIR
• Measurement Range: 0-2,000 ppm (default), adjustable up to 10,000 ppm
• Accuracy: +/- (30 ppm + 3% of reading)
• Outputs: 4-20 mA, 0-5 VDC, or 0-10 VDC (selectable)
• Power Supply: 24 VAC or 24 VDC
• Operating Temperature: 32-122F (0-50C)
• Enclosure: NEMA 4X polycarbonate
