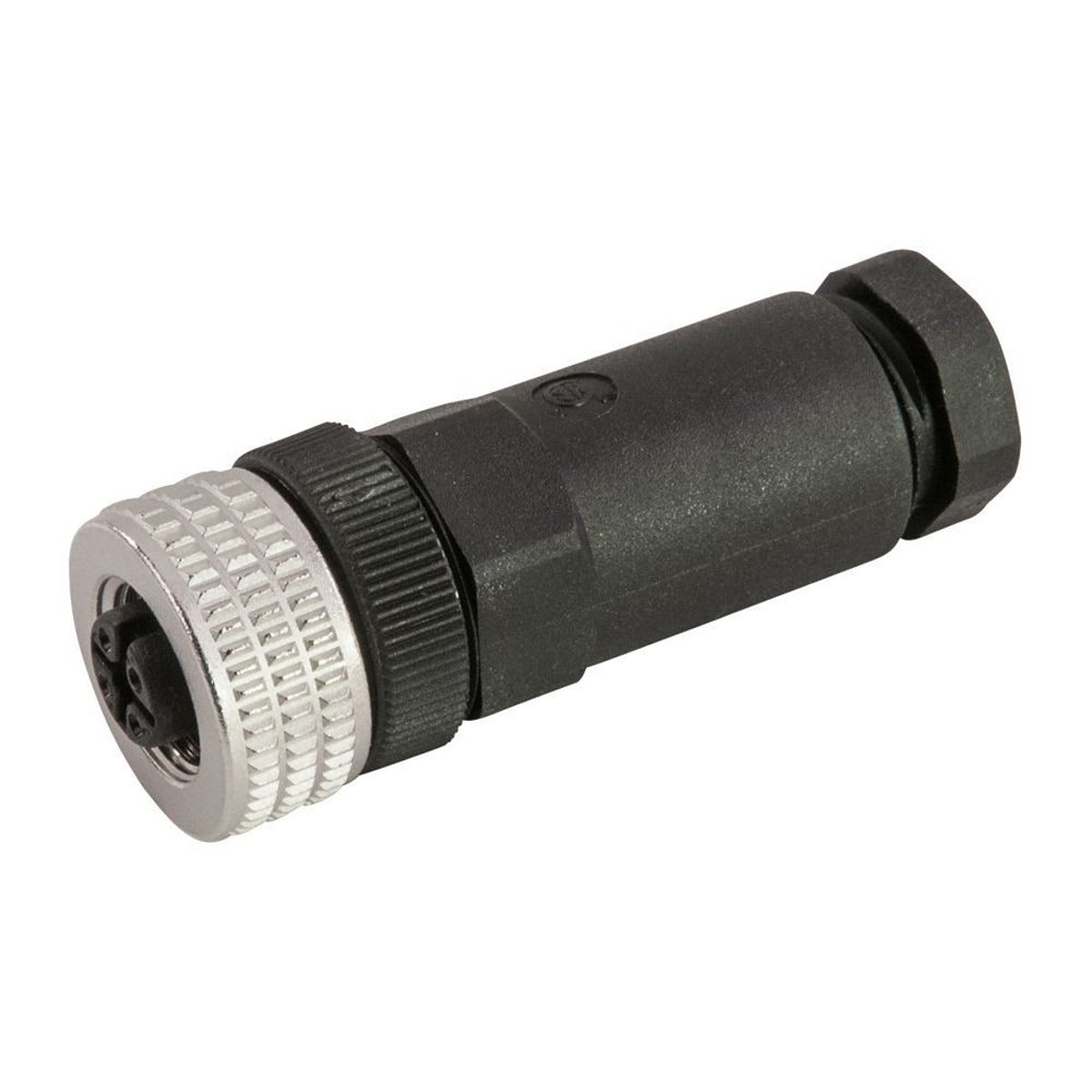

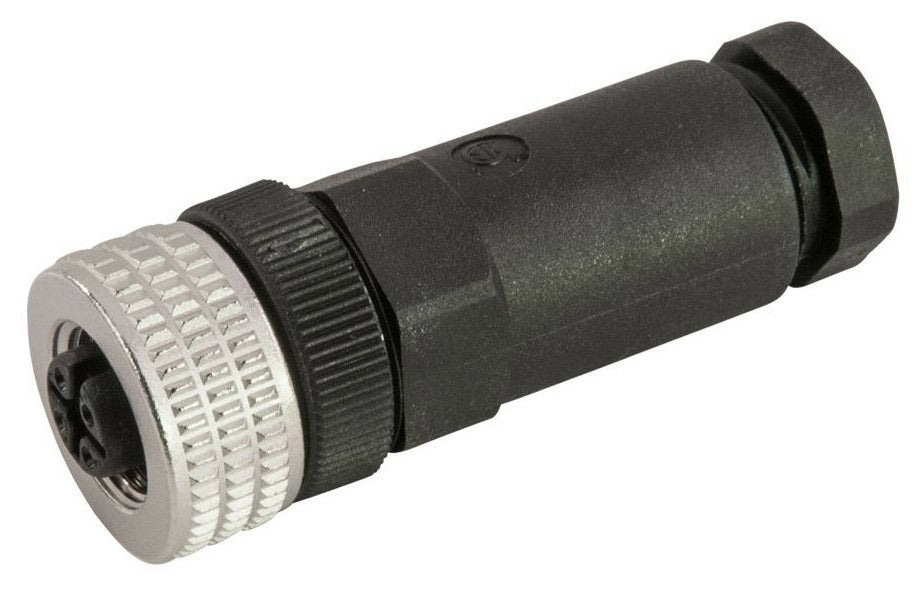

Remke 305AFW7 Field attachable single key 5-pole female PG7 4 A (Straight)

Product Description

The Remke 305AFW7 is a field-attachable M12 Micro-Link connector (single key) with five poles and female contacts, designed for creating custom cordsets and quick-disconnect sensor terminations. It is rated IP67/NEMA 6P, supports 30 VAC / 36 VDC at 4 A, uses a PG7 cable entry and features a nylon body with gold-plated copper alloy contacts and a nickel-plated brass coupling nut. Operating range covers -25 to 90 C (-13 to 194 F).

• IP67 / NEMA 6P environmental rating; straight cordset configuration.
• Electrical rating 30 VAC / 36 VDC, 4 A.
• Nylon body and insert, gold-plated copper alloy contacts, nickel-plated brass coupling nut; PG7 cable entry compatible with 18–22 AWG (0.16–0.24 in).

Product Highlights

Field-attachable M12 5-pin female connector, IP67, 4 A, PG7 cable entry, nylon body, gold-plated contacts.

Product Information

Standard Information

• Brand: REMKE
• Manufacturer Part Number: 305AFW7
• Country of Origin: Germany
