Reliance Worldwide UR22222 Max Push-to-Connect Ball Valve 1/2 in

Product Description

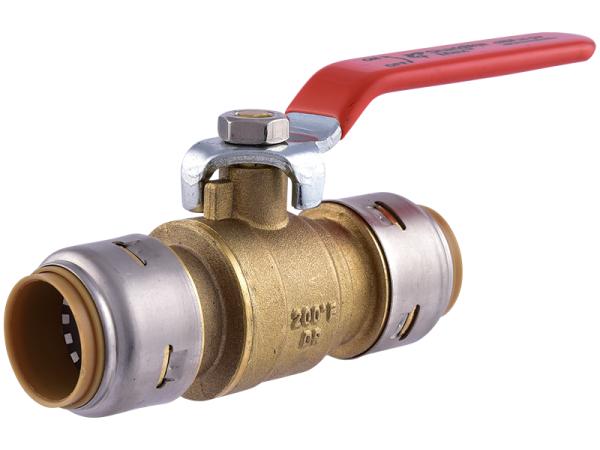

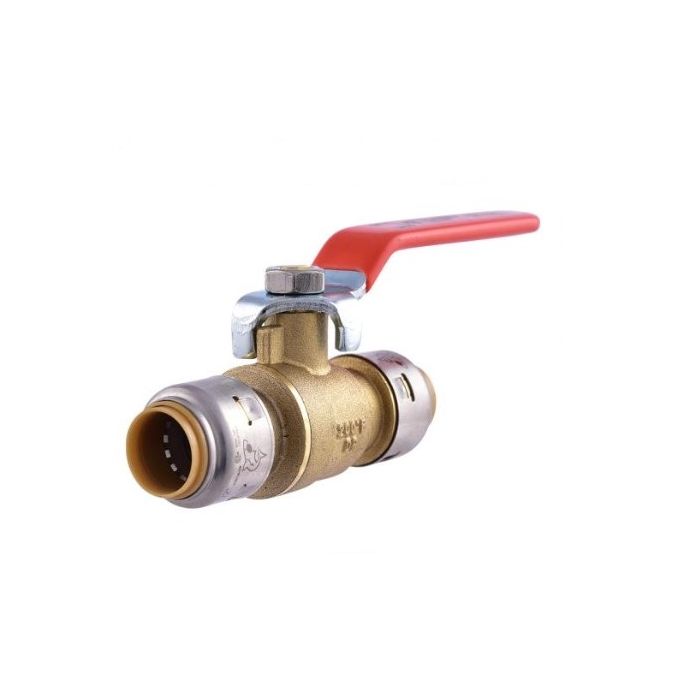

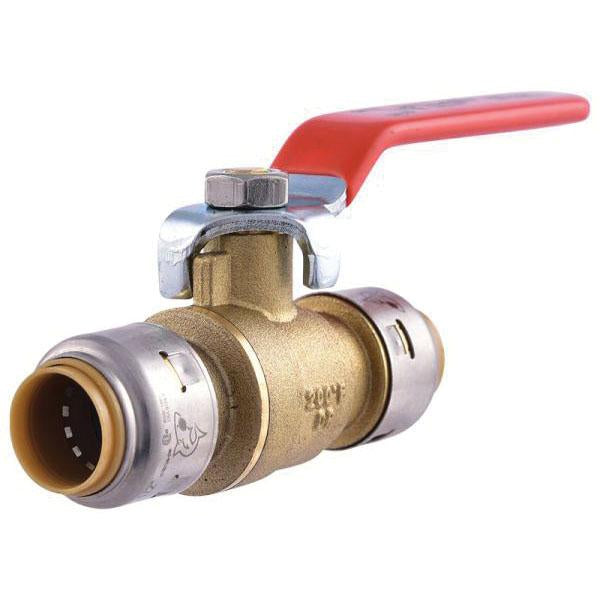

The RELIANCE WORLDWIDE UR22222 SharkBite Max ball valve features an innovative push-to-connect design for quick installation. This 1/2 inch nominal, full port valve is compatible with PEX, copper, CPVC, and PE-RT pipes, eliminating the need for soldering or glue. It is rated for water media up to 200 psi and 200 deg F, with a brass body and lever-operated actuator. The valve can be rotated after installation for flexibility in tight spaces.

• Connects PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe quickly without special tools.
• Features a high-performance DZR lead-free brass body for durability.
• Can be installed on wet lines and rotated after installation for flexible positioning.

Product Highlights

Innovative push-to-connect design for quick and versatile plumbing installations.

Product Information

Standard Information

• Brand: RELIANCE WORLDWIDE
• Manufacturer Part Number: UR22222
• Country of Origin: Import

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: Push-Fit
• Finish: Polished Chrome
• Inlet to Outlet Length: 3.06 in
• Media: Water
• Nominal Size: 1/2 In
• Port Type: Full
• Pressure Rating: 200 psi
• Softgoods Material: EPDM
• Temperature Rating: 200 deg F
• Trim Material: Brass Stem
• Series: Max Push
• Handle Material: Steel
• Lead-Free: Lead-Free
