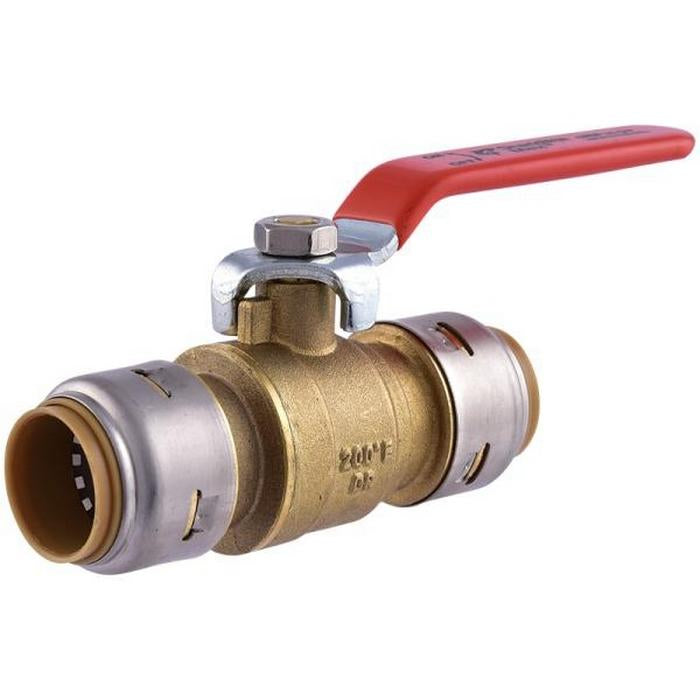

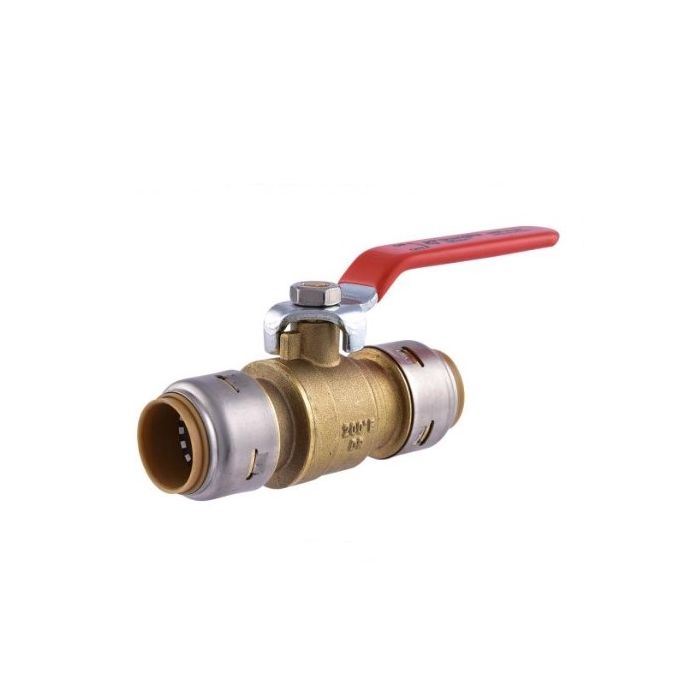

Reliance Worldwide UR22185 Sharkbite Ball Valve 3/4 inches

Product Description

The Reliance Worldwide UR22185 is a SharkBite Max ball valve featuring an innovative push-to-connect design for quick installation. It is compatible with PEX, copper, CPVC, and PE-RT pipe without soldering or clamps. This 3/4 inch nominal valve is rated for 400 psi and 200 degrees F, suitable for water shut-off applications. Its design allows rotation after installation for tight spaces.

• Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
• Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool
• Half the insertion effort, double the burst pressure

Product Highlights

Push-to-connect design for quick installation and compatibility with multiple pipe types.

Product Information

Standard Information

• Brand: RELIANCE WORLDWIDE
• Manufacturer Part Number: UR22185

Technical Specifications

• Manufacturer: Reliance Worldwide Corporation
• Nominal Size: 3/4 inch
• Series: Max Push
• Pressure Rating: 400 psi
• Temperature Rating: 200 deg F
• Ball Material: Brass
• Body Material: Brass
• Connection Type: Push-to-Connect
• Handle Material: Steel
• Lead-Free: Lead-Free
• Media: Portable Water
• Operator Type: Handle
• Seal Material: EPDM
• Seat Material: PTFE
• Certifications: ASME A112.4.14/CSA B125.14, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372
