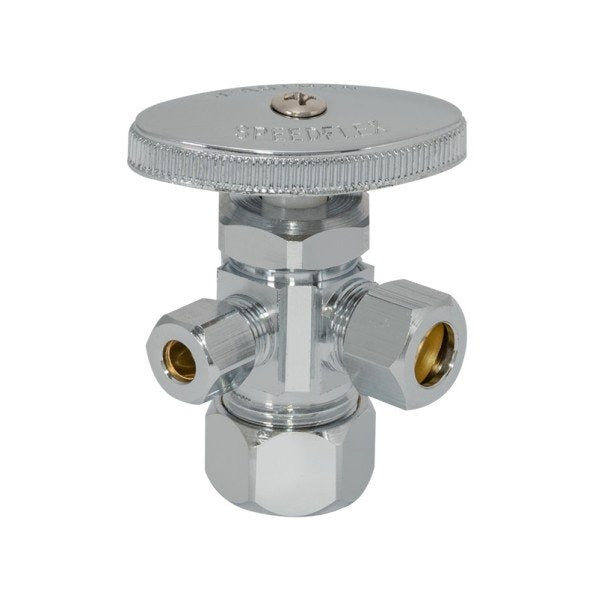

Reliance Worldwide 04353LF 3-way Angle Stop Valve

Product Description

The RELIANCE WORLDWIDE 04353LF is a 3-way angle stop valve designed for residential and light commercial plumbing supply line applications. This lead-free compliant shutoff valve features a traditional multi-turn stem operation rather than a quarter-turn ball valve configuration. It connects a 5/8-inch compression inlet to a 3/8-inch outlet and provides an additional third-port connection point, making it well suited for installations requiring simultaneous supply to two fixtures from a single stop. Weighing 0.31 pounds, it is a compact, durable fitting appropriate for licensed plumbers and experienced trade installers working on fixture rough-in or replacement projects.

This valve is used in residential and light commercial plumbing systems where a single supply stub-out must feed two fixtures, such as a toilet and a bidet, a toilet and a hand sprayer, or similar dual-outlet configurations. The angle stop orientation positions the valve body at 90 degrees relative to the supply line, which is standard for wall-mounted supply connections behind toilets, vanities, and similar fixtures. Installation is performed by licensed plumbers during new construction rough-in or fixture replacement service calls.

Key Features

• 3-way valve body supplies two outlets from a single wall stop connection
• 5/8-inch compression inlet x 3/8-inch outlet sizing for standard residential supply connections
• Multi-turn stem operation, not quarter-turn, for controlled flow adjustment
• Lead-free (LF) construction for compliance with low-lead potable water regulations
• Angle stop body orientation for wall-mounted supply line applications
• Compact form factor at 0.31 pounds for easy handling in tight cabinet and rough-in spaces

Compatibility

Designed as an OEM-style replacement or new-installation angle stop valve for residential plumbing systems requiring a 5/8-inch compression inlet and 3/8-inch outlet connection at the wall supply stub-out.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the main water supply and relieve line pressure before removing any existing stop valve. Use appropriate compression fittings and avoid over-tightening the compression nut, which can crack the fitting body. Verify all connections are leak-free under normal line pressure before returning the fixture to service.

Technical Specifications

• Inlet Size: 5/8 inches compression
• Outlet Size: 3/8 inches
• Valve Configuration: 3-way angle stop
• Operation Type: Multi-turn (not quarter-turn)
• Lead-Free Compliant: Yes (LF designation)
• Weight: 0.31 pounds
• UPC Code: 662545085029

Standard Information

• Brand: RELIANCE WORLDWIDE
• Manufacturer Part Number: 04353LF
