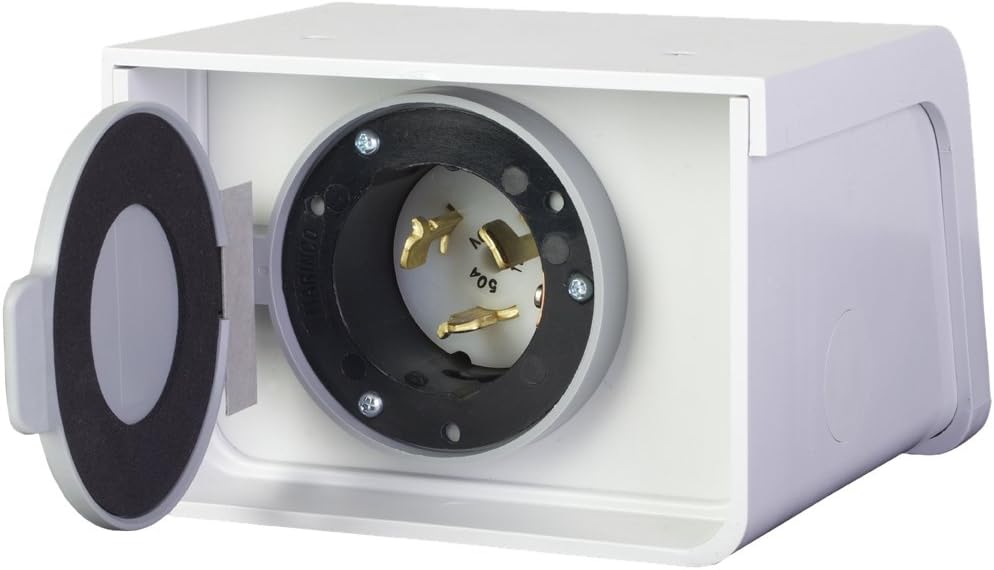

Reliance Controls PBN50 Non-Metallic Power Inlet Box 50 Amps

Product Description

The Reliance Controls PBN50 Non-Metallic Power Inlet Box is rated for 50 Amps. Constructed from Acrylonitrile Butadiene Styrene, this heavy-duty, portable power inlet box is designed for outdoor use with generators up to 12500 running watts. It facilitates safe generator hookup when hardwired to a transfer switch or generator panel.

• Features a NEMA 3R raintight enclosure for outdoor use.
• Designed for use with Pro/Tran transfer switches and Panel/Link manual transfer panels.
• Provides over 100 cubic inches of wiring space for easy installation.

Product Highlights

The PBN50 power inlet box ensures safe and easy generator connections, preventing carbon monoxide from entering enclosed spaces.

Product Information

Standard Information

• Brand: Reliance Controls
• Manufacturer Part Number: PBN50

Technical Specifications

• Voltage: 120 Volts
• Wattage: 12500 watts
• Material: Acrylonitrile Butadiene Styrene
• Frequency: 50 Hz
• Current Rating: 50 Amps
• Output Wattage: 12500 Watts
• Running Wattage: 12500 Watts
• Power Source: Manual
• Product Dimensions: 6.5"L x 7.5"W x 4.5"H
• Cabinet type: NEMA 3R
• NEMA Rating: NEMA 3R (Inlet Box)
• Accessory Type: Power Inlet Box
• Accessory For: Portable Generator
• Accessory Rated Amps: 50.0
• Max Continuous Watts: 12,500.0
• Generator Input Voltage: 120/240
• Power Inlet Box Model: Raintight™
• Knockouts: 3 Combination, 3/4"
• Rated: 50-AMPS at 125/250 VAC
• Wiring Space: Over 100 cubic inches
