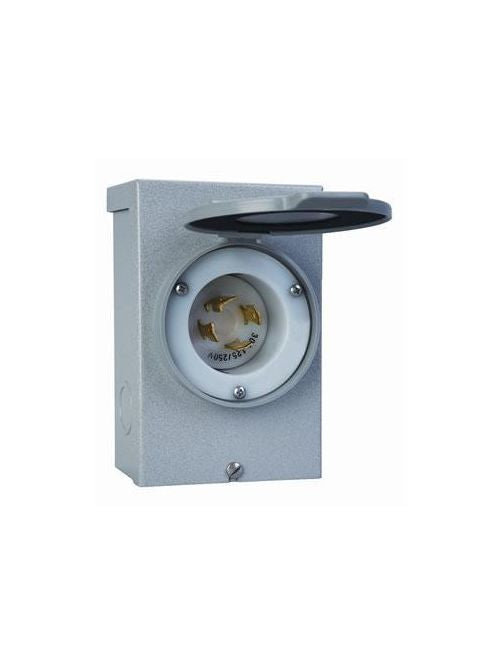

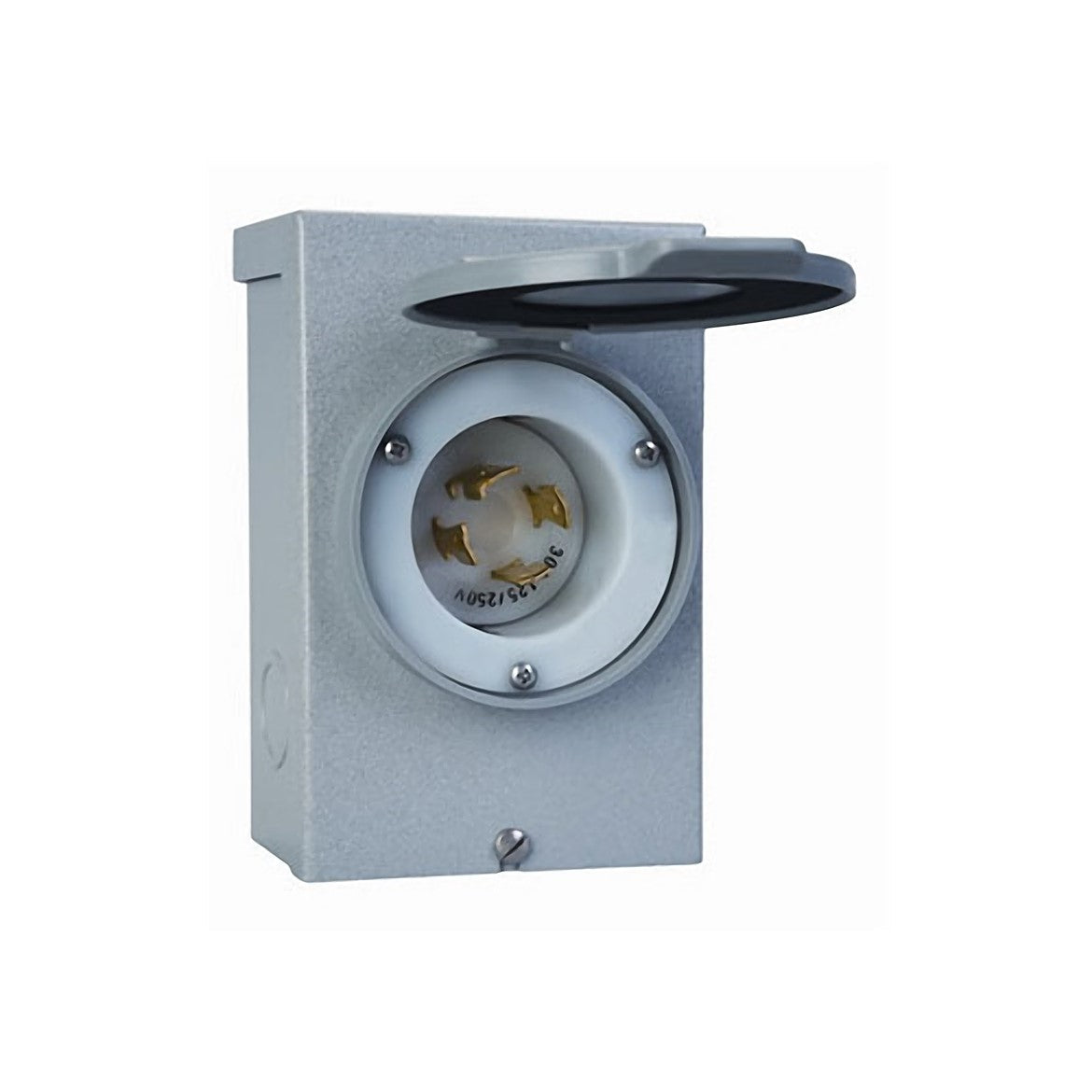

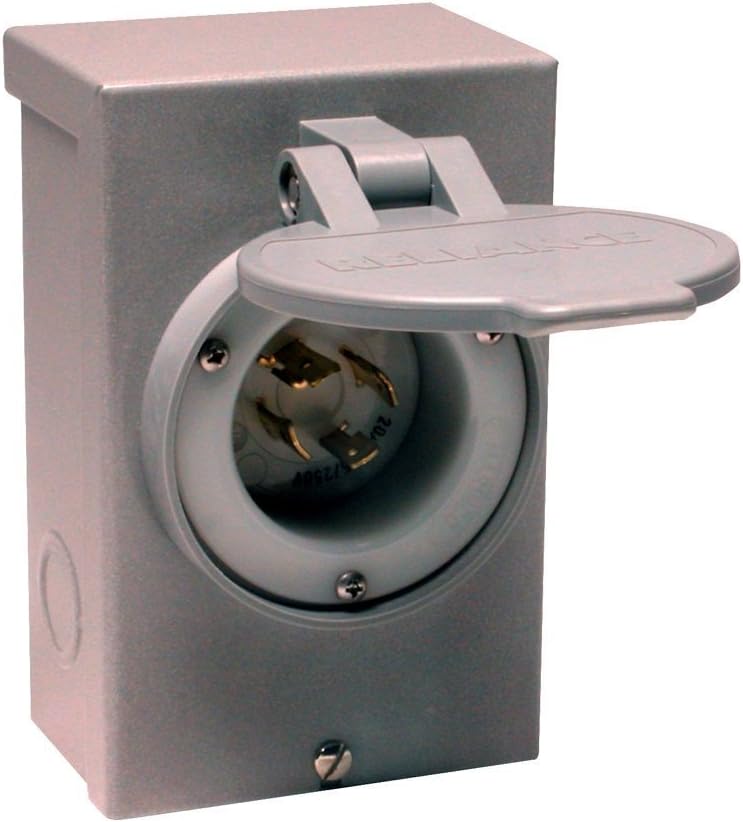

Reliance Controls PB20 Power Inlet Box 5000 Watts

Product Description

The Reliance Controls PB20 power inlet box is designed for outdoor use and can be hardwired directly to Reliance Controls transfer switches or panels, eliminating the need for cords running through windows or doors. Rated for generators up to 5,000 running watts. This rain-tight, rust-proof unit features zinc-plated steel construction.

• Designed for indoor or outdoor use with specific transfer switches, manual transfer panels and generator-ready load centers
• Features four combination 1/2-inch and 3/4-inch knockouts for wiring directly to the transfer switch or panel
• Front entry inlet has a weatherproof spring cover to protect the inlet from the elements when not in use

Product Highlights

The Reliance Controls PB20 power inlet box is UL Listed and designed to be installed outdoors in an open area where the generator is being used to avoid carbon monoxide hazards.

Product Information

Standard Information

• Brand: Reliance Controls
• Manufacturer Part Number: PB20
• Country of Origin: China

Technical Specifications

• Color: Gray
• Voltage: 250 Volts
• Wattage: 5000 watts
• Material: Plastic
• Frequency: 50 Hz
• Power Source: corded-electric
• Current Rating: 20 Amps
• Output Wattage: 5000 Watts
• Running Wattage: 5000 Watts
• Brand: Reliance Controls
• Product UPC: 78539920901
• Model / MPN: PB20
• MPN: PB20
• Amps: 20
• Volts AC: 240, 120
• IP/NEMA Rating: 3R
• Type: Receptacle, Inlet
• NEMA Configuration: L14-20
• Maximum Generator Input: 5 kW
• Model: PB20
• Max. Generator Running Watts: 5000
• Max. Generator Input: 20A@125/250VAC
• Cabinet Type, NEMA: Outdoor, NEMA 3R
• Manufacturer: Reliance Controls
• Part Number: PB20
• Size: Pack 1
