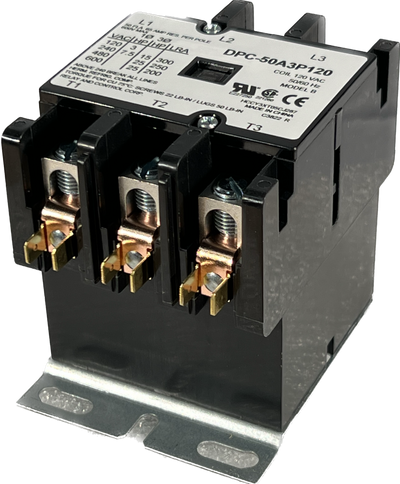

Relcon DPC-50A3P120 Definite Purpose Contactor

Product Description

The RELCON DPC-50A3P120 is a definite purpose contactor that operates at 120 Volts and is rated for 50 FLA. This contactor includes three poles and has a compact design, ideal for various electrical applications. It follows ARI 780/790 standards for reliable performance and comes equipped with an industry-standard mounting plate for easy installation.

• Rated for 50 FLA at 120 Volts
• Compliant with ARI 780/790 standards
• Features normally open contacts and an industry-standard mounting plate

Product Highlights

The RELCON DPC-50A3P120 is a durable contactor designed for efficiency in complex electrical systems, ensuring secure connectivity and reliable operation.

Product Information

Standard Information

• Brand: RELCON
• MPN: DPC-50A3P120

Technical Specifications

• Rated FLA: 50
• Voltage: 120
• Number of Poles: 3
• Mounting Plate: Industry standard
• Contact Type: Normally open
• Recommended Torque (#10-32 screw): 22 in. lbs.
• Recommended Torque (box lug): 25 in. lbs.
• Equivalent to: ACC models
