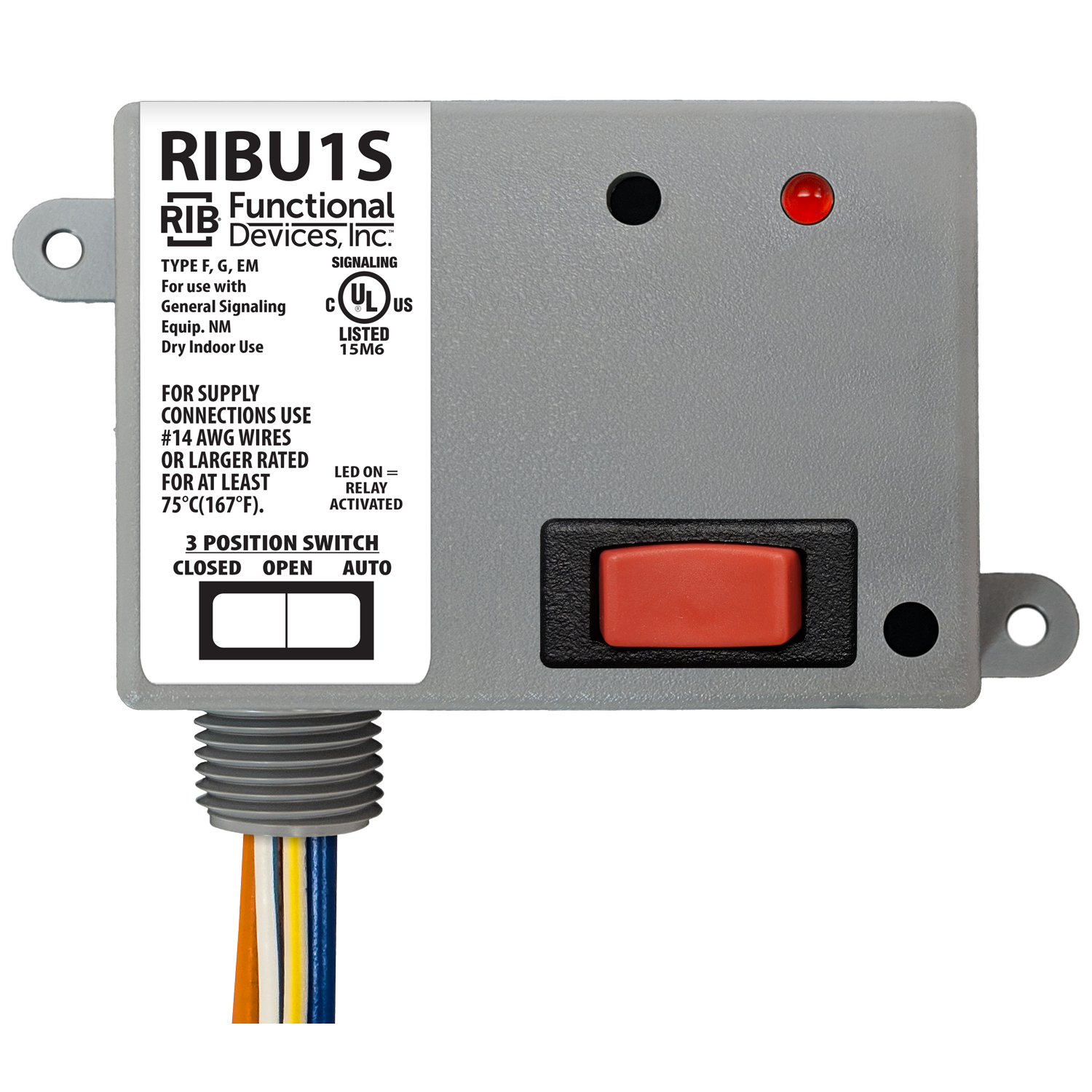

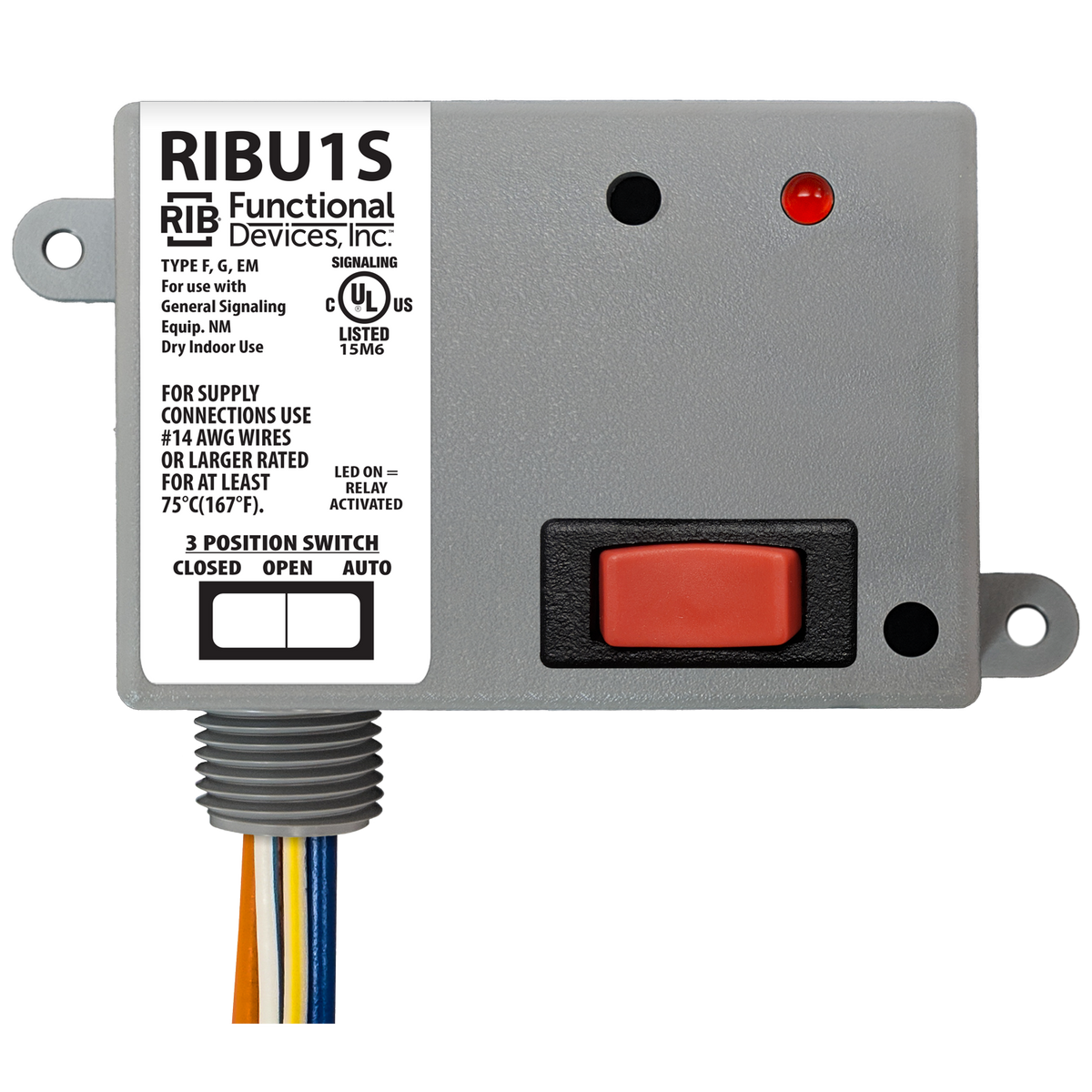

RELAYS RIBU1S Enclosed Pilot Relay

Product Description

The RELAYS RIBU1S is a reliable enclosed pilot relay designed for secure control of circuits. This relay features a single pole, single throw normally open (SPST-N/O) contact configuration, suitable for pilot duty applications. The device operates effectively at voltages up to 277 VAC and is equipped with an override switch for manual activation when needed.

• SPST-N/O contact type with ten Amp rating.
• Coil voltage options include 10 to 30 VAC/DC or 120 VAC.
• LED indicator provides clear relay status information.

Product Highlights

This relay is housed in a plenum-rated NEMA 1 enclosure, ensuring safety and durability. It is designed for easy installation with color-coded wires exiting from a nipple, allowing for screw or nipple mounting. The override switch adds convenience for users requiring manual control, while the LED indicator shows when the relay is activated.

Product Information

Standard Information

• Brand: RELAYS
• MPN: RIBU1S

Technical Specifications

• Contact Type: SPST-N/O
• Contact Rating: 10 A
• Coil Voltage: 12 VAC, 24 VDC, 120 VAC
• Coil Range: 10-30 VAC/DC or 120 VAC
• Frequency: 50/60 Hz
• Enclosure Rating: NEMA 1
• Operating Temperature: -30 degrees to 140 degrees Fahrenheit
• Operating Humidity: 5-95% RH non-condensing
