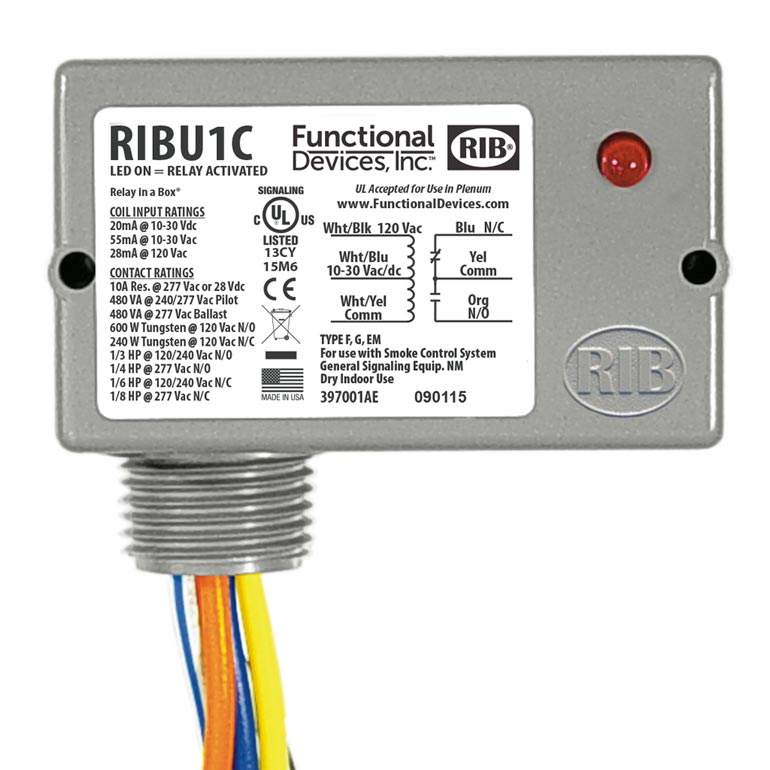

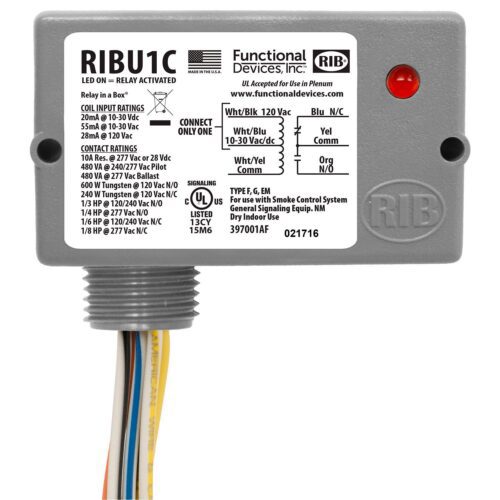

RELAYS RIBU1C Enclosed Pilot Control Relay

Product Description

The RELAYS RIBU1C is an enclosed pilot control relay used in building automation, HVAC, and lighting applications. This relay features SPDT contacts rated for ten amps in a NEMA rated enclosure. It also has an LED indicator to show relay status and can be mounted via a one-half inch NPT nipple.

• SPDT contacts rated at ten amps.
• LED indicator for relay status.
• Operating temperature ranges from minus thirty degrees to 140 degrees Fahrenheit.

Product Highlights

The RIBU1C is suitable for controlling low electrical loads, driving power relays or contactors, and sensing voltage to electrical loads. It is often used to connect irrigation systems to other systems.

Product Information

Standard Information

• Brand: RELAYS
• MPN: RIBU1C

Technical Specifications

• Contact Type: SPDT
• Contact Rating: 10 A
• Coil Voltage: 10 to 30V, 120V, AC/DC
• Operating Temperature: -30 to 140 °F (-34 to 60 °C)
• Enclosure Rating: NEMA 1, NEMA 4
• Approvals: UL listed, UL 916 Energy Management, UL 864 Fire, cUL listed, CSFM, UL File S7312
• Relay Status: LED, ON - relay activated
• Wire Length: 16 inches (40.6 cm)
• Dimensions: 1.70 x 2.80 x 1.50 inches with .50 NPT nipple
• Weight: 0.5 lb
• Operating Humidity: 5-95% RH non-condensing
• Expected Relay Life: 10 million cycles minimum mechanical
• Frequency: 50/60 Hz
