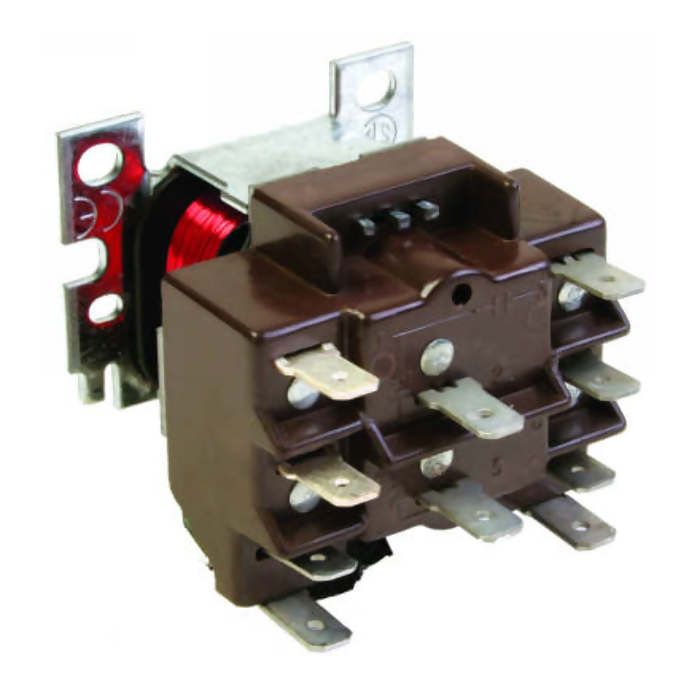

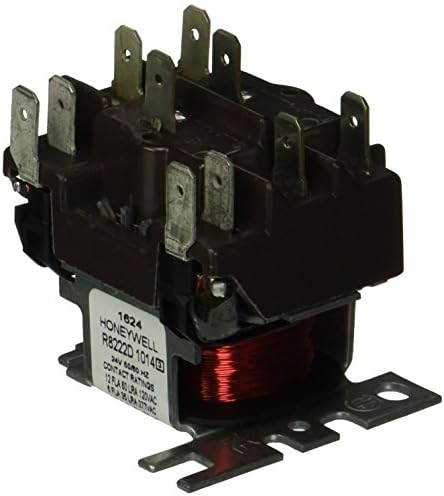

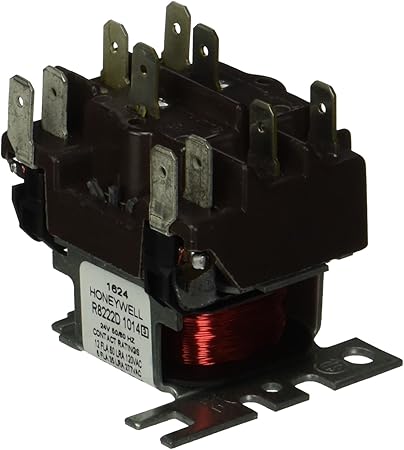

RELAYS R8222D1014/U General Purpose Relay

Product Description

The RELAYS R8222D1014/U is a general purpose relay designed for heavy duty switching applications. This relay is suitable for refrigeration, air conditioning units, appliances, and vending machines. It features a double pole, double throw (DPDT) layout that allows for versatile use in various configurations.

• Designed for heavy duty switching.
• DPDT configuration enhances functionality.
• Quick-connect terminals simplify installation.

Product Highlights

This relay is built for reliability and ease of use in demanding environments.

Product Information

Standard Information

• Brand: RELAYS
• MPN: R8222D1014/U

Technical Specifications

• Type: General Purpose Relay
• Coil Voltage: 24 VAC
• Power Consumption: 1.15 watts
• VA: 12
• Contact Material: Silver
• Contact Type: Normally Open
• Mounting Type: DIN Rail Mount
• Terminals: 1/4 in. Quick-Connect
• Amperage: 12A
• Frequency: 50/60 Hz
• Certification: UL, cUL
• Weight: 0.45 LB
• Dimensions: 5.49 x 4.78 x 6.05 cm
• Product Depth: 2.375 IN
• Product Height: 1.875 IN
• Product Width: 2.16 IN
