Rehau 235351-113 Pexa Uv Shield Pipe 1/2 in 100 Ft Coil

Product Description

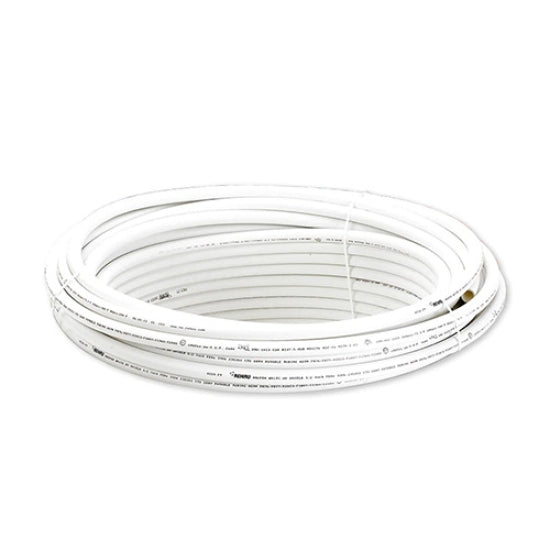

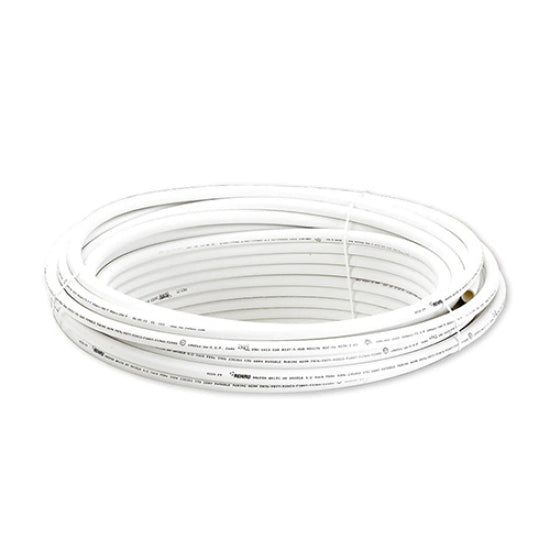

The REHAU 235351-113 is a 1/2-inch RAUPEX UV Shield PEXa pipe supplied in a 100-foot coil. It is manufactured using REHAU's high-pressure peroxide crosslinking method, which produces a true PEXa molecular structure throughout the pipe wall. A co-extruded polyethylene shield is bonded to the exterior, providing protection against ultraviolet light exposure for up to one year. This pipe is intended for use in hydronic and potable water systems where temporary outdoor exposure during installation or staging is a concern. Plumbers and mechanical contractors install it in residential and light commercial applications.

RAUPEX UV Shield pipe is suited for residential and commercial plumbing, radiant heating, and hydronic distribution systems. The UV-resistant outer shield allows the pipe to be staged or stored outdoors without immediate degradation of the pipe body. The 100-foot coil format is practical for rough-in plumbing runs and radiant floor loops. It is installed by licensed plumbers and mechanical contractors using standard PEXa fittings and tools.

Key Features

• PEXa construction via high-pressure peroxide crosslinking method for consistent flexibility and memory
• Co-extruded polyethylene UV shield protects against sunlight exposure for up to one year
• 1/2-inch nominal size suitable for residential supply and radiant loop applications
• 100-foot coil length reduces joints and speeds installation on longer runs
• White color finish for easy identification in multi-pipe installations

Compatibility

Designed as an OEM-style replacement and new-installation pipe compatible with standard PEXa fittings and expansion-style connection systems appropriate for 1/2-inch nominal PEXa pipe.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off and depressurize the water supply before making any connections. Use only fittings and expansion tools rated for PEXa pipe at the correct nominal size. The UV shield provides temporary protection only and the pipe should be covered or transitioned to a rated sleeve for any permanent exposed outdoor installation.

Technical Specifications

• Nominal Size: 1/2 inch
• Coil Length: 100 feet
• Color: White
• Pipe Type: PEXa crosslinked polyethylene
• UV Protection: Co-extruded PE shield, up to 1 year

Standard Information

• Brand: REHAU
• Manufacturer Part Number: 235351-113
