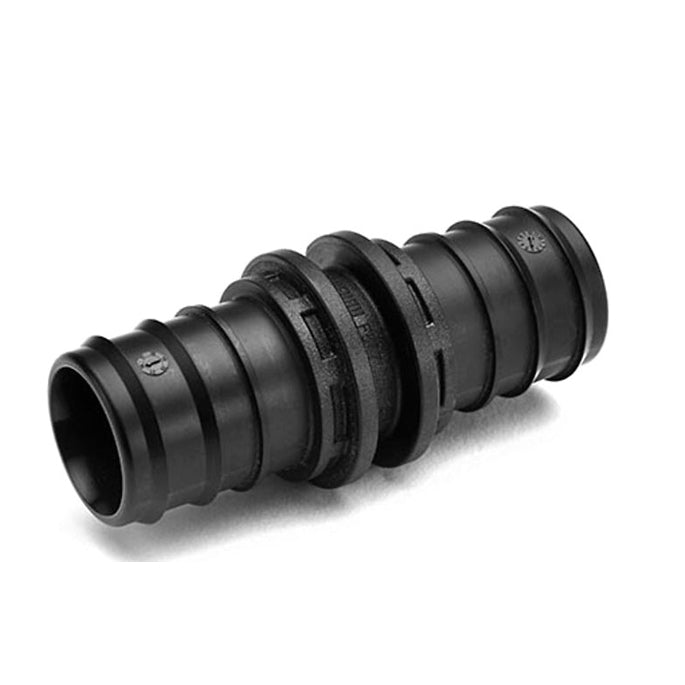

Rehau 104828-001 EVERLOC+ Polymer Coupling 1-1/2 inches x 1-1/2 inches

Product Description

The REHAU 104828-001 EVERLOC+ compression-sleeve fittings and sleeves are designed for use with REHAU PEXa pipe. This 1-1/2" x 1-1/2" straight coupling complies with the lead-free requirements of the U.S. Safe Drinking Water Act. Installation is performed with EVERLOC+ compression-sleeve tools, following all published REHAU Technical Guidelines.

• Compliant with the lead-free (LF) requirements of the U.S. Safe Drinking Water Act
• EVERLOC+ Straight Coupling
• Designed for PEX-a Plumbing Systems

Product Highlights

The REHAU EVERLOC+ coupling is ideal for PEX connections, ensuring a secure and compliant plumbing solution.

Product Information

Standard Information

• Brand: REHAU
• Manufacturer Part Number: 104828

Technical Specifications

• Size: 1-1/2" x 1-1/2"
• Length: 4.01"
• Outside Max Diameter: 1.88"
• Inside Diameter: 1.04"
• Sub Brand: EVERLOC+
• Type: Straight
• Nominal Size A: 1-1/2 inch
• Nominal Size B: 1-1/2 inch
• Connection Type: PEX
• Material: Radel® Polyphenylsulfone
• Standards/Approvals: Lead Law Compliant, ASTM F877, CSA B137.5, cNSFus-pw
• ASTM: ASTM F-877
• CSA Certified: CSA B137.5
• End Connection 1: Everloc+
• End Connection 2: Everloc+
• Fitting Size 1: 1-1/2 in
• Fitting Size 2: 1-1/2 in
• Fitting Sizes: 1-1/2 in
• Fitting Type: Coupling
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material Type: Polyphenylsulfone
• NSF Certified: Yes
• Schedule Class: SDR 9
• Warranty Length: 25 Years
• Standard Approvals: ASTM F877, CSA B137.5, cNSFus-pw Certified
• Dimensions: 1.04 in ID x 1.88 in OD
• End Style: EVERLOC
• Nominal Size: 1-1/2 in
• Schedule Rating: SDR 9
