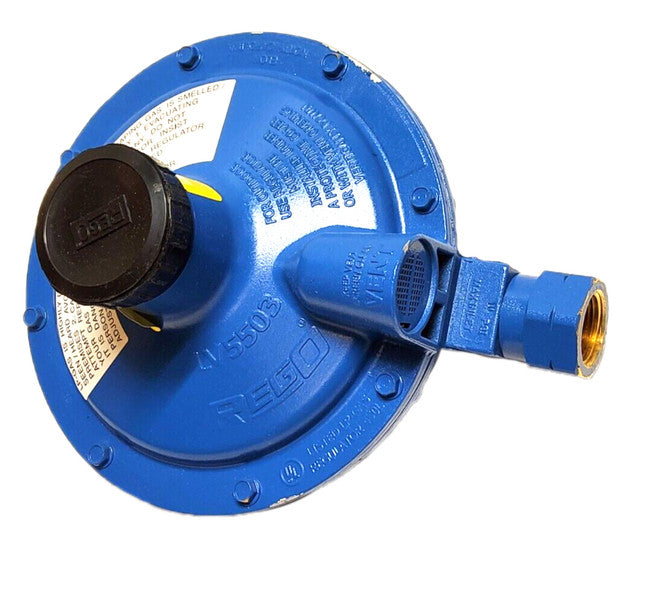

Rego LV5503Y6 Second Stage Gas Regulator 2 psi System

Product Description

The REGO LV5503Y6 Second Stage Gas Regulator delivers pressure control for LP gas systems operating up to 2 psi. Designed with a durable die-cast zinc body, this regulator ensures long-lasting performance. Engineered for precision and safety, it provides consistent outlet pressure for appliances downstream of a first-stage or twin-stage regulator.

• Large vent helps prevent blockage and has 3/4 in FNPT for vent piping
• With 15 psig inlet pressure, regulator is designed to not pass more than 5 psig with the seat disc removed
• Incorporates an integral relief valve

Product Highlights

This second stage regulator is perfect for agricultural, residential, or light commercial LP gas installations. It features a 6.5–11 in. WC outlet pressure range, \tfrac34” F.NPT inlet and outlet connections, and a large vent for superior performance and stability.

Product Information

Standard Information

• Brand: REGO
• Manufacturer Part Number: LV5503Y6

Technical Specifications

• Propane Capacity: 2,200,000 Btu/hr
• Standard/Approvals: UL Listed
• Suitable For Use With: 2 psi System
• Inlet/Outlet Connection: 3/4 inch FNPT
• Bonnet Vent Position: Over Inlet
• Connection Type: F. NPT x F. NPT
• Adjustment Range (PSIG): 1.6-2.2 psig
• Adjustment Range (BAR): 0.110-0.151 bar
• Factory Delivery Pressure (BAR): 0.138 bar at 0.69 bar
• Factory Delivery Pressure (PSIG): 2 PSIG @ 10 PSIG Inlet
• Inlet Connection (in.): 3/4"
• Outlet Connection (in.): 3/4"
• Vapor Capacity (BTU/HR) Propane: 2,200,000 BTU/hr
• Vapor Capacity (KG/HR) Propane: 46.42 KG/hr
• Outlet Connection: 3/4 F. NPT
• Inlet Connection: 3/4 F. NPT
• Adjustment Range: 2 PSIG @ 10 PSIG Inlet
