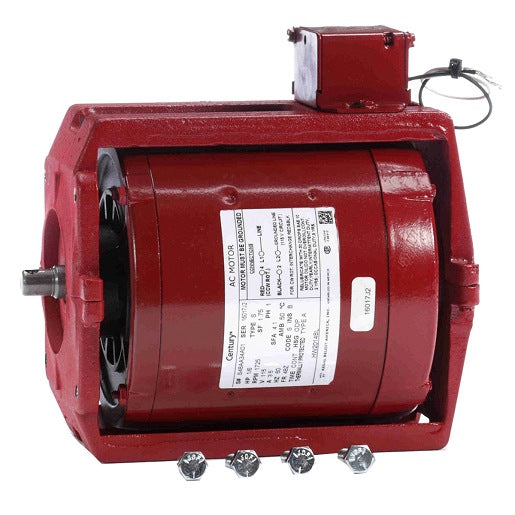

REGAL REXNORD HW2014BL CIRCULATOR PUMP MOTOR

Product Description

The REGAL REXNORD HW2014BL is an AC motor designed for circulator pump applications. It operates at one hundred fifteen voltage and sixty Hertz, delivering 0.17 horsepower at a synchronous RPM of one thousand seven hundred twenty-five.

• Operates at one hundred fifteen voltage and sixty Hertz.
• Features a 0.5-inch diameter shaft and 4.34-inch overall length.
• Rated at 0.17 horsepower with a synchronous RPM of one thousand seven hundred twenty-five.

Product Highlights

This motor is single-phase with an open drip proof enclosure and a NEMA frame profile. It includes a resilient mounting method and a base for installation.

Product Information

Standard Information

• UPC: 0786674025296

Technical Specifications

• Horse Power: 0.17 HP
• Frame Size: 48Z
• Hertz: 60
• Sync RPM: 1725
• Voltage: 115
• Current: AC
• Phase: Single Phase
• Enclosure: ODP
• Frame Profile: NEMA
• Mounting Method: Resilient
• Base: Yes
• Overall Length: 4.34 inches
• Shaft Diameter: 0.5 inches
• Current Rating: 3.5 Ampere
• Poles: 4
• Category: AC Motor
• Harmonized Tariff Code: 8501.40.60.40
• Noun: Motor
• Keyword String: Alternating Current Pump
