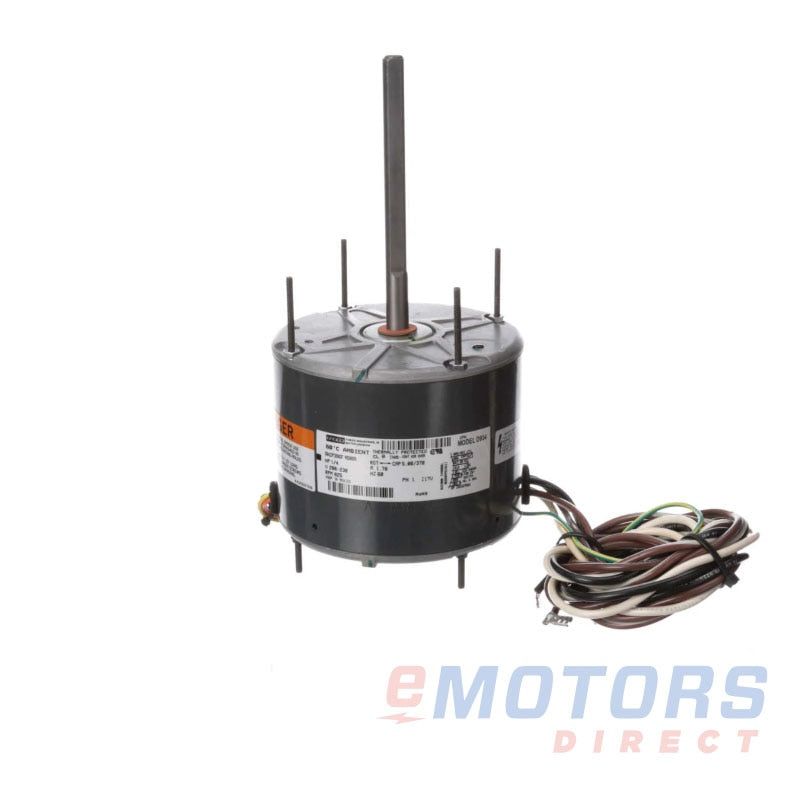

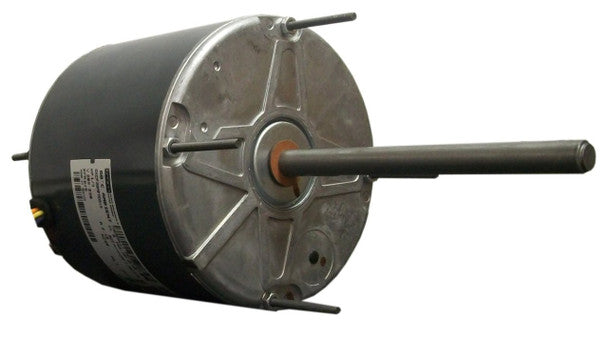

REGAL REXNORD D934 1/4 HP Motor

Product Description

The REGAL REXNORD D934 is a single-phase motor designed for HVAC applications. It operates at 208-230 volts and produces a rated output of 1/4 HP at 825 RPM. This motor features a Totally Enclosed Air Over (TEAO) design suited for continuous operation with reversible rotation. It is built with a robust rolled steel frame and provides flexible installation options with horizontal or vertical mounting.

• Operates at 208-230V, delivering 1/4 HP at 825 RPM.
• Includes a run capacitor rated at 5 Mfd-370 Volts.
• Designed for continuous air over duty with reversible rotation.

Product Highlights

This motor is UL and CSA approved, ensuring reliable performance in various conditions. It is ideal for applications where space and flexibility in mounting are required.

Product Information

Standard Information

• Rated Motor Output Power: 1/4 HP
• Rated Motor Speed: 825 RPM

Technical Specifications

• Rated Motor Voltage: 208-230V
• Rated Motor Current: 1.7 AMP
• Phase: 1
• Poles: 8
• Enclosure: TEAO
• Mounting: Stud
• Frame: 48
• Approximate Weight: 11.2 lb
• C-Dimension: 10.56
• Insulation Class: B
• Rotation: Reversible
• Duty: Continuous Air Over
• Shaft Diameter: 0.5 inches
• Shaft Length: 6 inches
• Agency Approvals: CSA & UL
• Frequency: 60 Hz
• Run Capacitor: 5 Mfd-370 Volts
• Frame Material: Rolled Steel
• Orientation: Horizontal / Vertical
• Ambient Temperature: 60°C
• DE Bearing: Ball
• NDE Bearing: Ball
