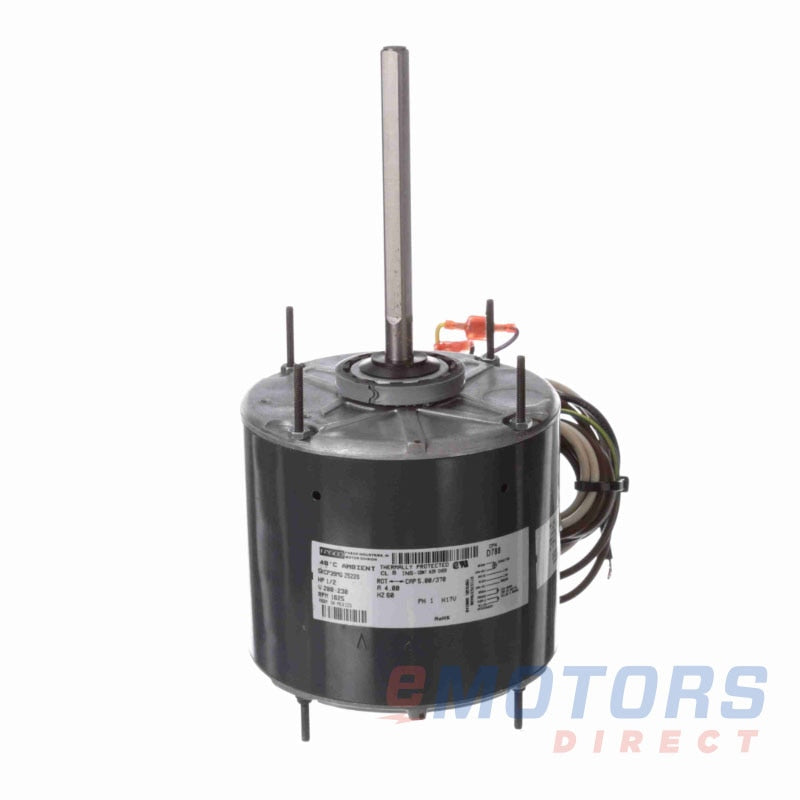

Regal Rexnord D788 General Purpose Motor 1/2 HP 208-230V

Product Description

The Regal Rexnord D788 is a reliable 1/2 HP motor optimized for continuous air over applications. It operates efficiently at a voltage range of 208-230V and draws a current of 4 AMP, achieving a rated speed of 1625 RPM.

• Operates on a single-phase and features a 4-pole design.
• Constructed with a rolled steel frame suitable for various environments.
• Includes both CSA and UL agency approvals for safety assurance.

Product Highlights

Designed for versatility, this motor includes a reversible rotation and operates at a frequency of 60 Hz. It employs Class B insulation for durability in temperatures up to 40°C.

Product Information

Standard Information

• Motor Output Power: 1/2 HP
• Voltage: 208-230V

Technical Specifications

• Rated Speed: 1625 RPM
• Current: 4 AMP
• Phase: 1
• Poles: 4
• Frame Size: 48
• Enclosure Type: Open Air Over (OAO)
• Mounting Type: Resilient
• Shaft Diameter: 0.5 inches
• Shaft Length: 5.5 inches
• Agency Approvals: CSA & UL
• Frequency: 60 Hz
• Run Capacitor: 5 Mfd-370 Volts
• Approximate Weight: 15.6 lb
• Insulation Class: B
• Reversible Rotation: Yes
• Duty Type: Continuous Air Over
