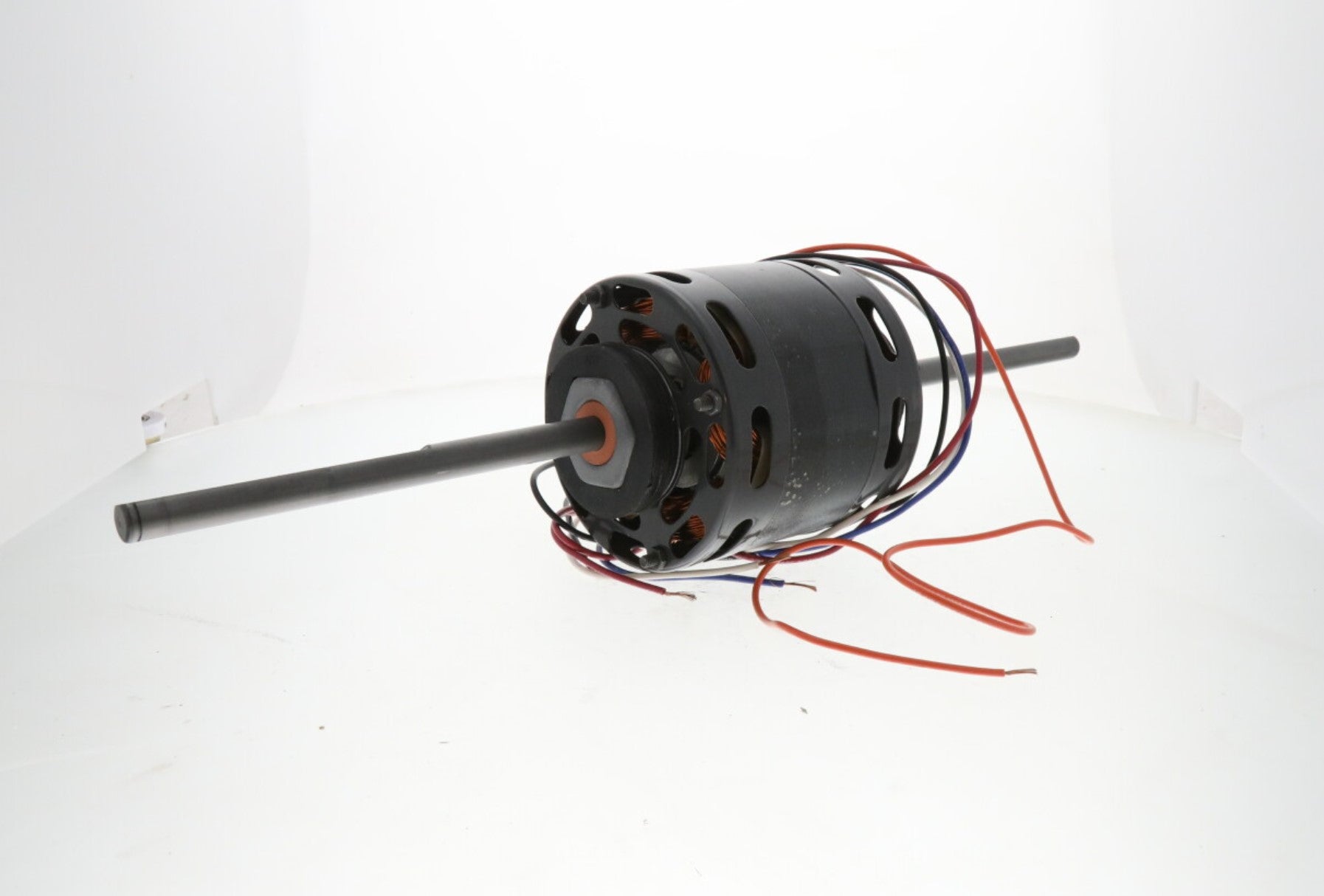

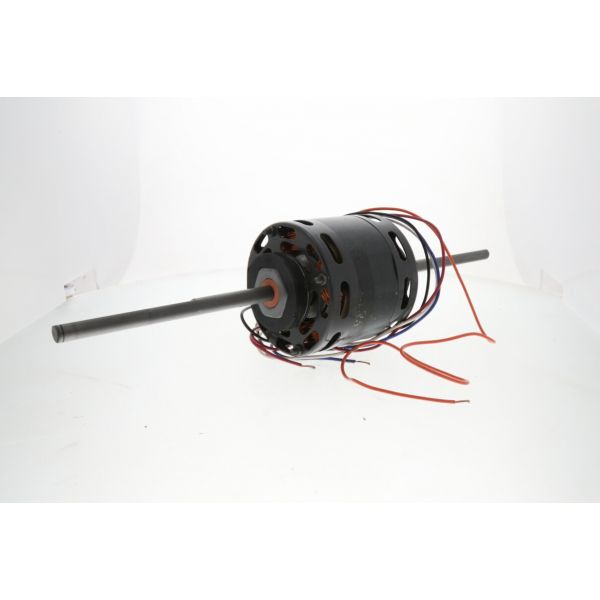

Regal Rexnord D338 4-Speed Multi-HP Motor

Product Description

The Regal Rexnord D338 is a 4-speed motor ideal for fan coil air-conditioning and heating units. It operates at one hundred fifteen volts and sixty hertz with a maximum speed of one thousand five hundred fifty RPM. This motor features a shaded pole design and has a 4.4 frame size with an open ventilated enclosure. It supports multiple horsepower ratings from one-sixth to one-fifteenth HP, with corresponding amp levels ranging from five point four to two point one amps.

• Four selectable speed settings for various operation needs.
• Suitable for use in air handlers, ventilation, and furnace units.
• Open ventilated design aids in cooling efficiency.

Product Highlights

This motor is engineered to convert electrical energy to mechanical energy effectively for HVAC components.

Product Information

Standard Information

• Brand: Regal Rexnord - Fasco
• MPN: D338

Technical Specifications

• Voltage: 115V
• Frequency: 60Hz
• Speed: 1550 RPM
• Speeds: 4
• Horsepower: 1/6-1/10-1/12-1/15HP
• Amps: 5.4-3.2-2.5-2.1 amps
• Bearing: Sleeve Bearing
• Frame: 4.4 Frame
• Enclosure: Open Ventilated
• Application: Fan Coil Air-Conditioning and Heating Unit Motor
• Type: Shaded Pole
• Item Number: D338
• Manufacturer Name: Regal Rexnord - Fasco
• Product Number: D338
• OEM Part Number: D338
