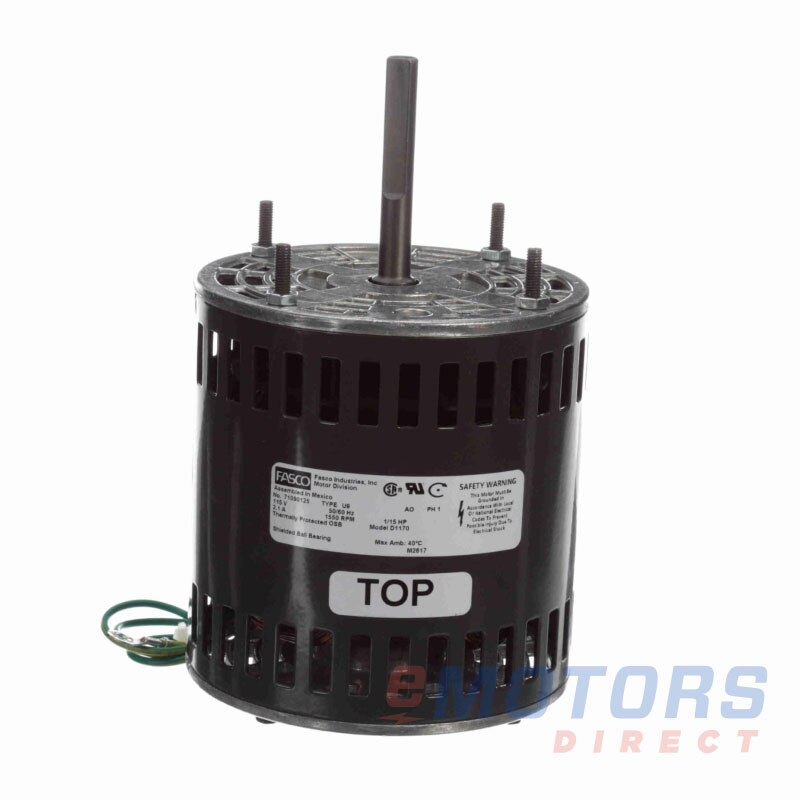

Regal Rexnord D1170 Motor - 115V, 1/15 HP, 1550 RPM

Product Description

The Regal Rexnord D1170 motor is built for air-over applications. This single-phase motor operates at one hundred fifteen volts and delivers a power output of one-fifteenth horsepower at one thousand five hundred fifty RPM. The motor is housed in a rolled steel frame and is designed for stud mounting. It features ball bearings at both ends, ensuring durability. The design supports clockwise shaft end rotation and functions optimally at sixty hertz with a shaft diameter of three-eighths inches and a length of two and a half inches.

• Operates at 115V with a power rating of 1/15 HP.
• Constructed with a rolled steel frame for stability.
• Configured for clockwise shaft end rotation, ideal for diverse air-over applications.

Product Highlights

This motor is suitable for various HVAC tasks, making it a reliable choice for professionals.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D1170

Technical Specifications

• Rated Motor Output Power: 1/15 HP
• Rated Motor Speed: 1550 RPM
• Rated Motor Voltage: 115V
• Rated Motor Current: 2.1 AMP
• Phase: 1
• Poles: 4
• Frame: 4.4
• Enclosure: OAO
• Mounting: Stud
• Ambient Temperature: 40°C
• Shaft Diameter: 0.375 inches
• Shaft Length: 2.5 inches
• Weight: 7lb
• DE Bearing: Ball
• NDE Bearing: Ball
