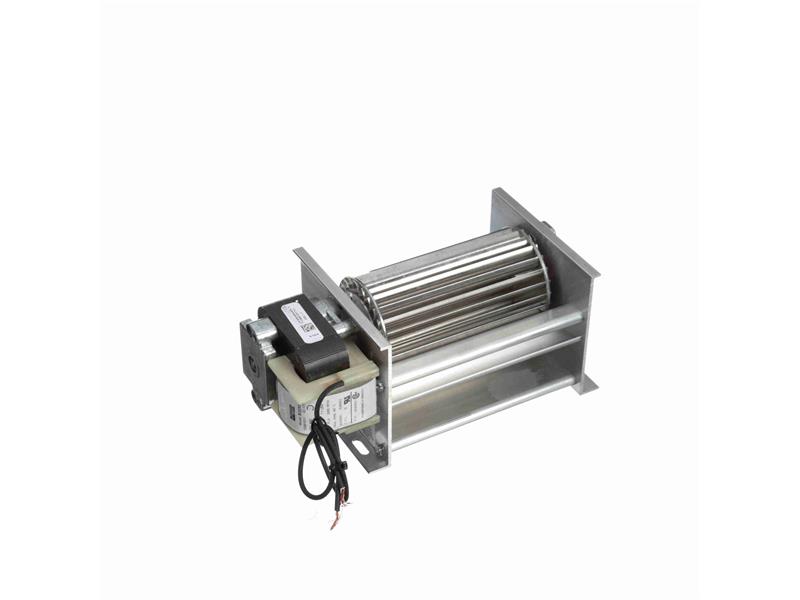

REGAL REXNORD B22505 Transflo Blower

Product Description

The REGAL REXNORD B22505 is an efficient Transflo blower ideal for air circulation. It features a shaded pole motor and operates at a single speed, making it suitable for various applications. The blower operates at a speed of three thousand revolutions per minute. Designed for durability, it is thermally protected and equipped with sleeve bearings.

• Blower outlet shape is rectangular.
• Includes ten to eight leads with strip.
• Operates at ambient temperatures up to forty degrees Celsius.

Product Highlights

This blower is effective in ventilating spaces with a focus on reliability and safety.

Product Information

Standard Information

• Brand: Regal Rexnord
• Country of Origin: Mexico

Technical Specifications

• MPN: B22505
• Voltage: 115 V
• Motor Type: Shaded Pole
• Thermal Protection: Thermally Protected
• Speed: 3000 RPM
• Current: 0.57 A
• Number of Speeds: 1
• Frequency: 50/60 Hz
• Phase: 1
• Ambient Temperature: 40 °C
• UL Certified: Yes
• Insulation Class: B
• CSA Certified: Yes
• Blower Outlet Shape: Rectangle
• Motor Enclosure: Open
• Blower Outlet Flange: No
• Bearing Type: Sleeve
