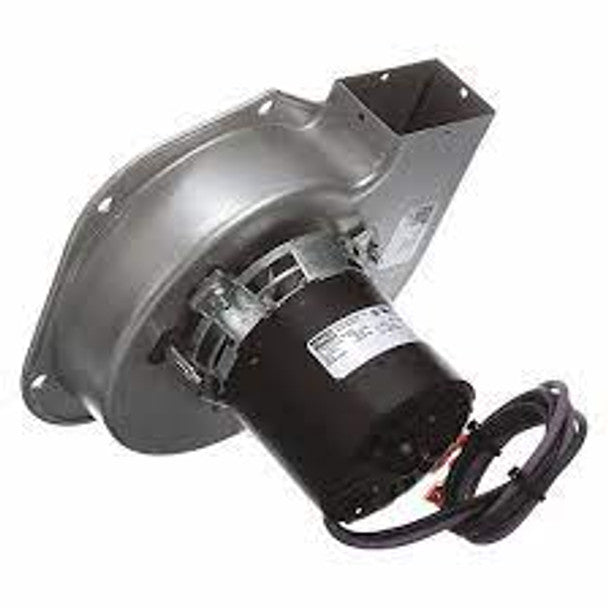

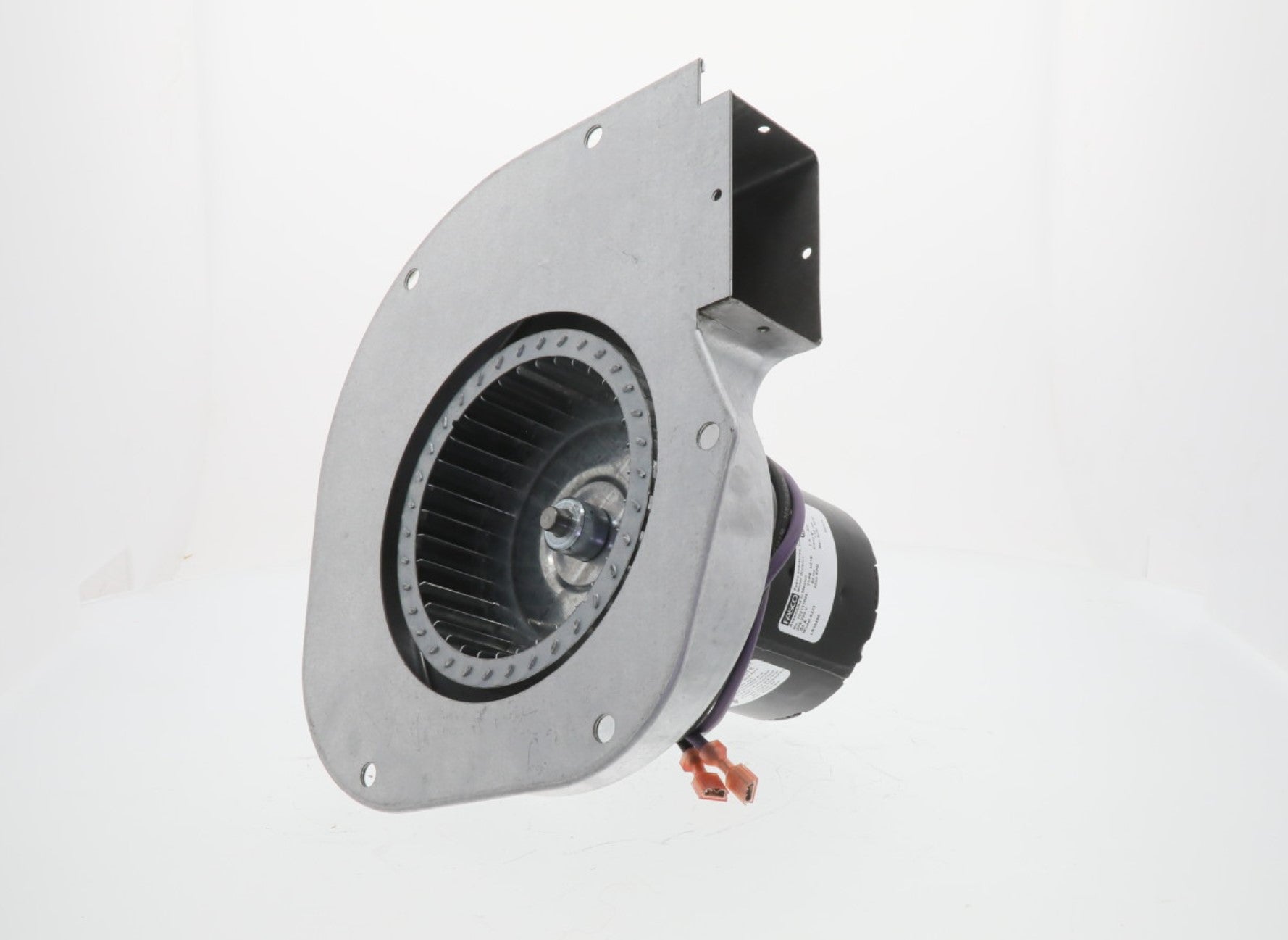

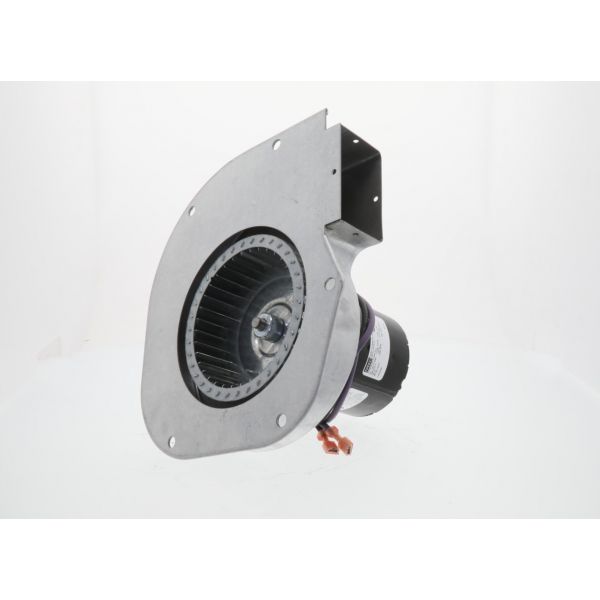

REGAL REXNORD A223 Draft Inducer Motor

Product Description

The Regal Rexnord Fasco A223 is a single-speed draft inducer motor made for HVAC systems, especially for furnaces. This motor helps in venting combustion gases by generating negative pressure in the furnace exhaust system. It turns on when the system signals, ensuring safe removal of harmful byproducts from the heat exchanger and home.

• Voltage: 208-230 V
• Speed: 3200 rpm
• Thermal protection with class B insulation

Product Highlights

This motor features an open air over enclosure and sleeve bearing. It includes thirty-three leads with spade terminals for easy connection.

Product Information

Standard Information

• Manufacturer Part Number: A223
• Country of Origin: Mexico

Technical Specifications

• Motor Type: Shaded Pole
• Current: 0.64 A
• Number of Speeds: 1
• Frequency: 60 Hz
• Phase: 1
• Ambient Temperature: 40 °C
• Insulation Class: B
• Blower Outlet Shape: Rectangle
• Motor Enclosure: Open
• Blower Outlet Flange: No
• Bearing Type: Sleeve
• Certifications: UL, CSA
