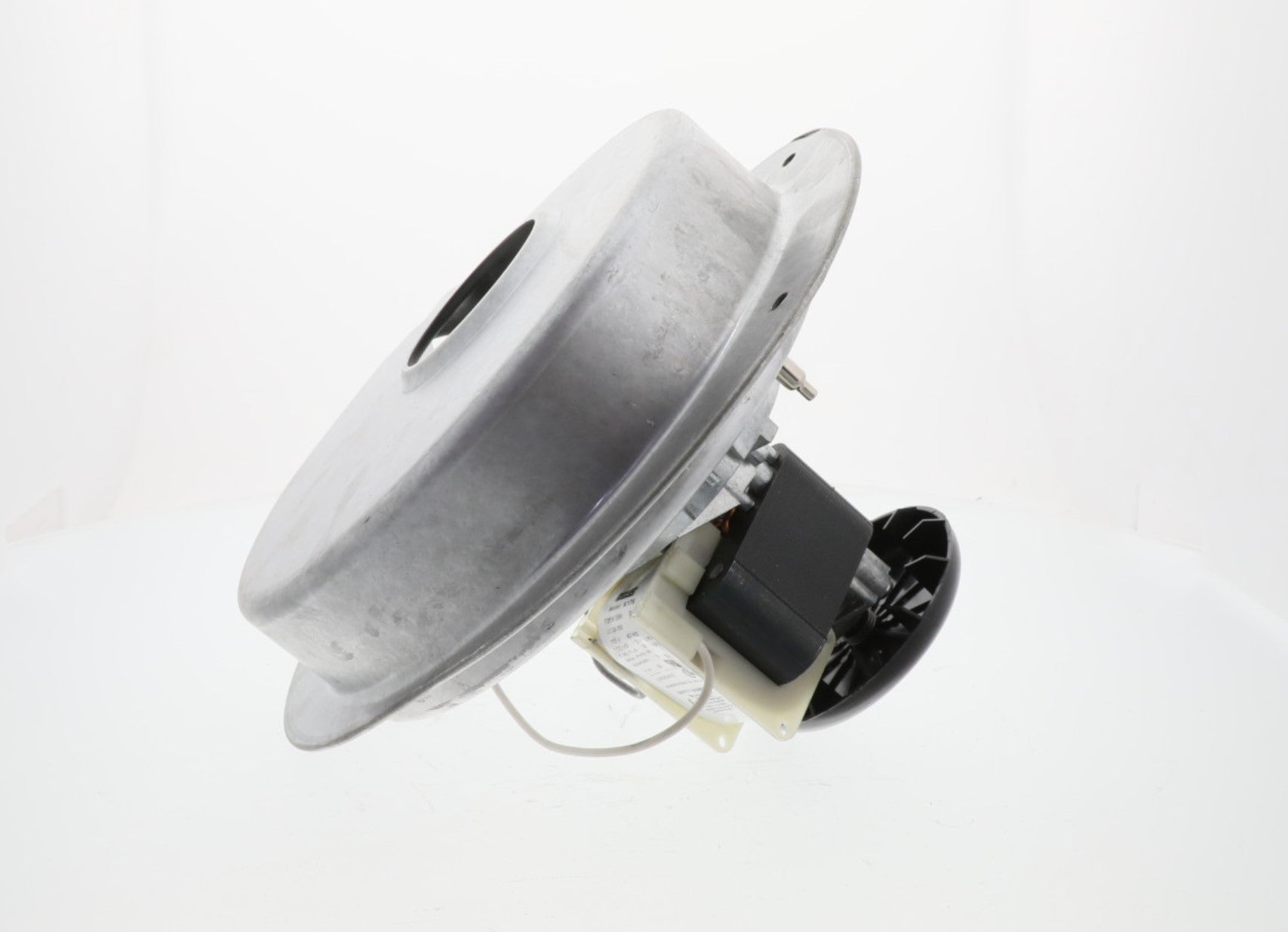

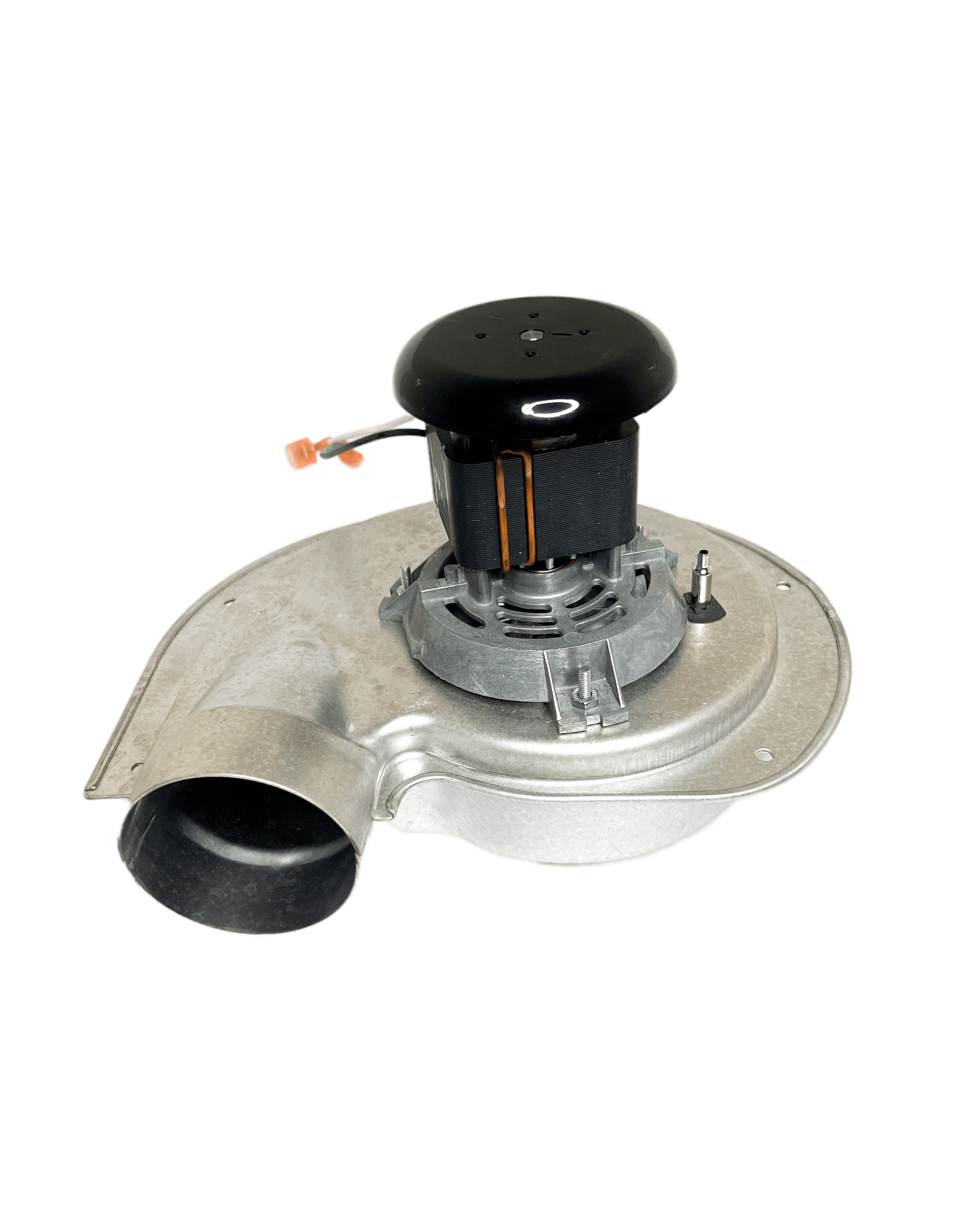

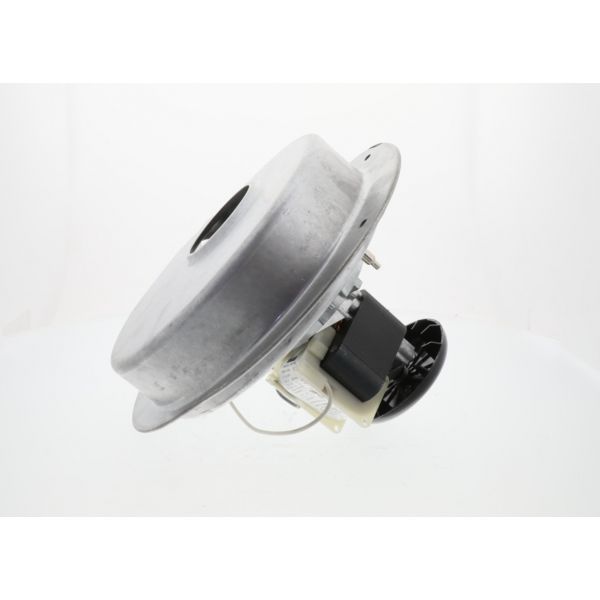

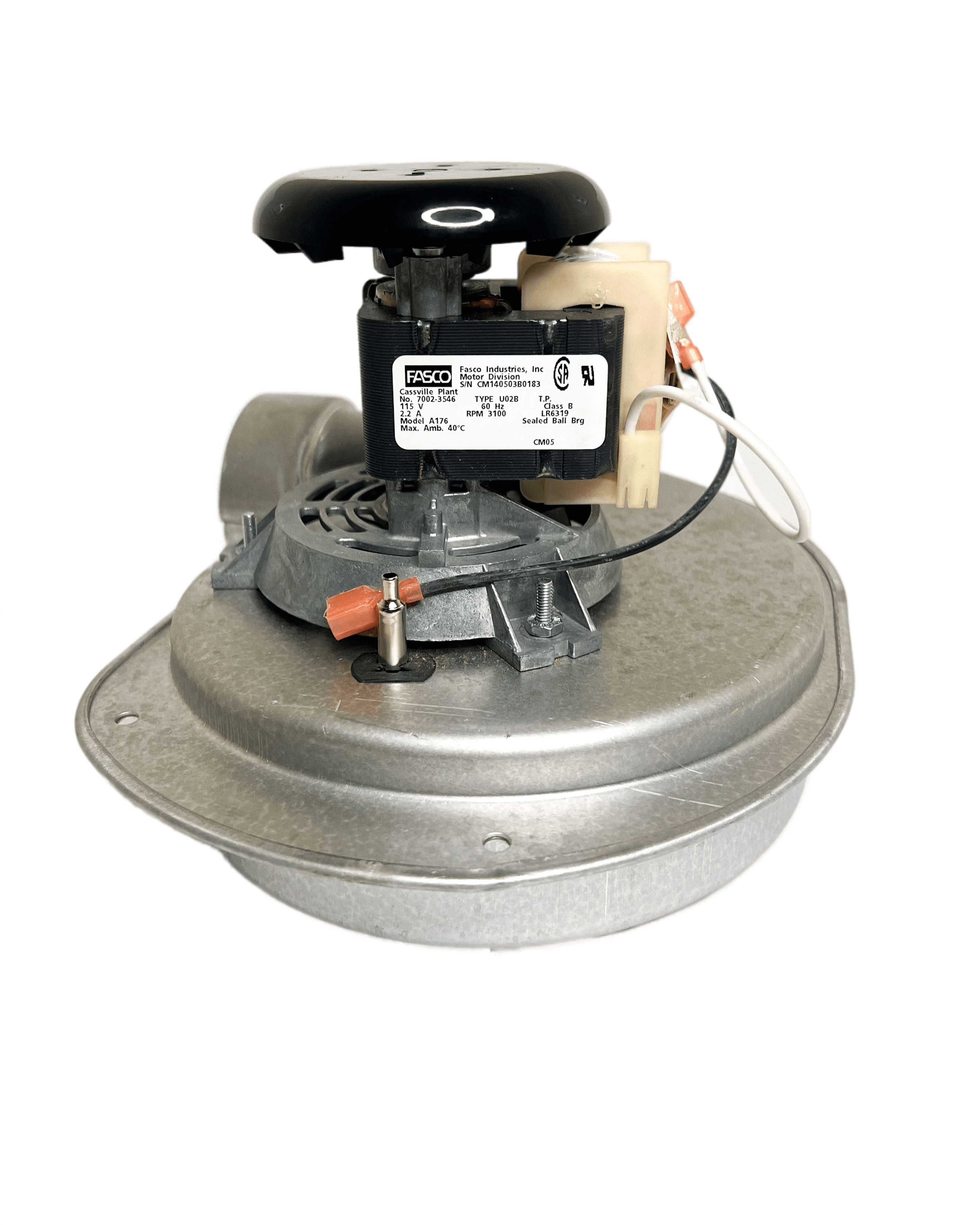

Regal Rexnord A176 Draft Inducer Motor 115V 1-Speed

Product Description

The Regal Rexnord A176 Draft Inducer Motor is built for draft induction in both industrial and commercial systems. This motor operates on 115V power and is designed for single-phase operations, drawing 2.2 amps. It is a one-speed, 1/25 horsepower shaded pole motor, capable of reaching speeds of 3,100 RPM. The robust construction features a rolled steel frame and an aluminum flange, making it suitable for various applications.

• Operates on a 115V single-phase power supply
• Rolled steel frame with aluminum flange
• Direct replacement for Fasco 7002-2946 and ICP 1011899

Product Highlights

This motor is ideal for use in systems that require induced draft, including exhaust fans and other related equipment.

Product Information

Standard Information

• Manufacturer Name: Regal Rexnord - Fasco
• Product Number: A176

Technical Specifications

• OEM Part Number: A176
• Weight: 6.53 lbs
• Voltage: 115V
• Frequency: 60 Hz
• Amperage: 2.2 amp
• Speed: One-speed
• Horsepower: 1/25 hp
• Motor Type: Shaded pole motor
• RPM: 3,100 RPM
