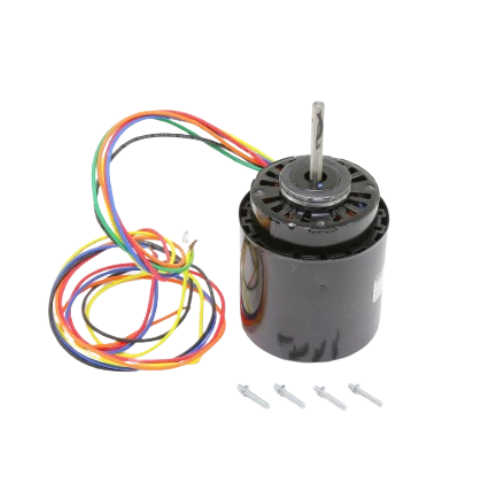

REGAL REXNORD 671B Electric Motor Power 1/15 HP

Product Description

The REGAL REXNORD 671B is a reliable electric motor for fan and blower applications. This motor operates on single-phase power at sixty Hertz, making it efficient for various uses. It features a J56 frame and a drip-proof enclosure, ensuring durability and longevity. Designed for continuous duty, the motor is well-suited for both vertical and horizontal mounting, thanks to its cushion base.

• Single-phase operation
• Drip-proof enclosure
• Designed for continuous duty

Product Highlights

This electric motor is engineered for high efficiency in demanding applications.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Power: 1/15 HP

Technical Specifications

• Voltage: 115/208-230V
• RPM: 1550
• Phase: 1
• Output HP: 1/2 HP
• Output KW: 0.37 kW
• Speed: 1725 rpm
• Service Factor: 1
• Frame: J56
• Enclosure: Drip Proof
• Current: 6.8 A
• Duty: Continuous
• Thermal Protection: No Protection
• Insulation Class: B
• Mounting: Cushion Base
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 11.13 inches
• Shaft Diameter: 0.625 inches
• Shaft Extension: 1.97 inches
