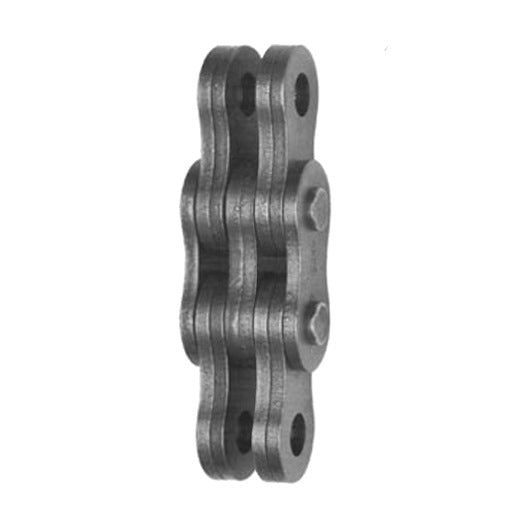

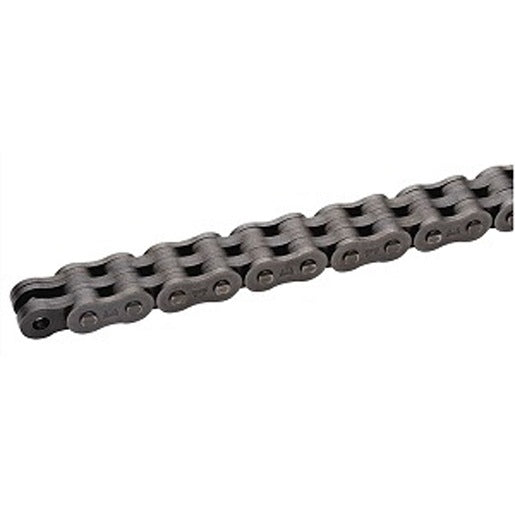

REGAL REXNORD 644 - Leaf Chain BL644 - 10 ft

Product Description

The REGAL REXNORD 644 is a leaf chain measuring ten feet in length. It is designed for leaf chain applications and features a riveted 4X4 lacing construction made from carbon steel. The chain has a BL644-2 chain size with a pitch of three-quarters of an inch and a curved plate style. This rollerless chain has two strands, with a plate thickness of zero point thirteen inches and a plate height of zero point seven zero one inches. The pin diameter is five-sixteenths of an inch. This product is available in increments of ten feet.

• BL644-2 chain size with riveted 4X4 lacing.
• Made from carbon steel with a three-quarter inch pitch.
• Curved plate style with a five-sixteenths inch pin diameter.

Product Highlights

The leaf chain designed for rigorous applications, suitable for various industrial uses.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Chain Type: Leaf

Technical Specifications

• Chain Size: BL644-2
• Basic Construction: Riveted 4X4 Lacing
• Number of Strands: 2
• Material: Carbon Steel
• Plate Shape: Curved
• Modification: Rollerless
• Plate Thickness: 0.13 inch
• Plate Height: 0.701 inch
• Chain Pitch: 0.75 inch
• Pin Diameter: 0.313 inch
• Minimum Order Quantity: 10
• Category: Chain
• UPC: 0698210821128
