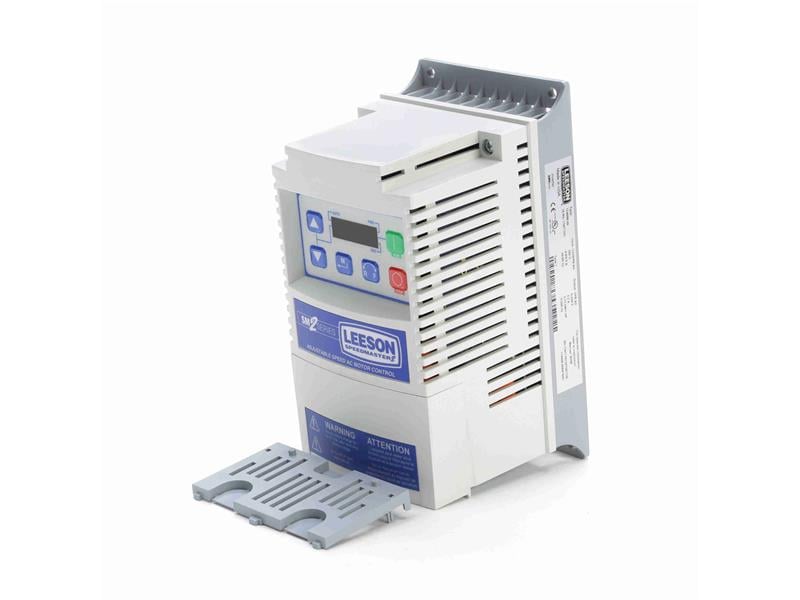

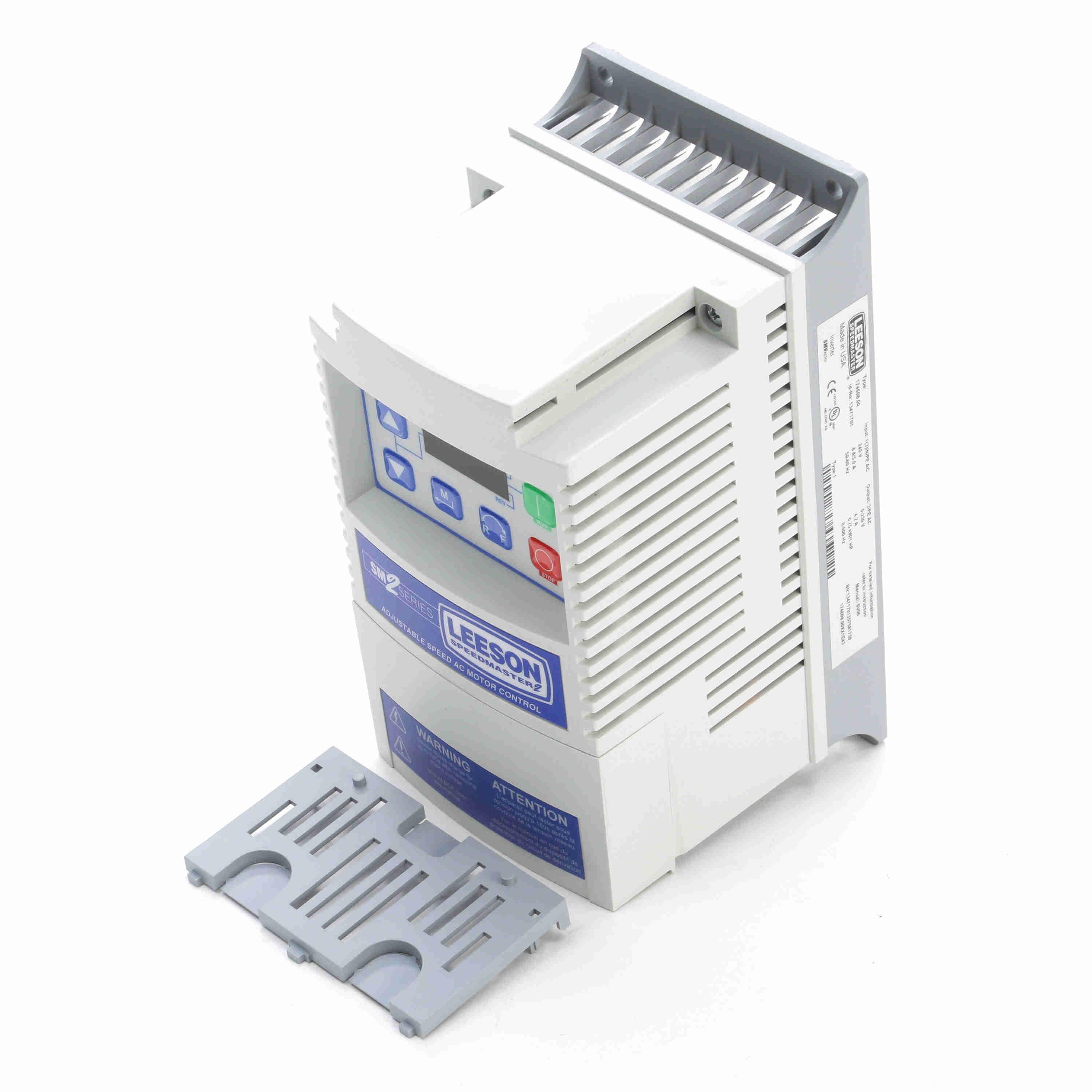

Regal Rexnord 174608.00 SpeedMaster SM2 Inverter Drive 1 HP (NEMA 1)

Product Description

The Regal Rexnord 174608.00 is a SpeedMaster SM2 series flux vector inverter drive that provides variable frequency control for motor applications. It is rated for 240 VAC input with 1 HP (0.75 kW) output at 4.2 A for three-phase operation and is housed in a NEMA 1 enclosure. The drive features an easy-to-read keypad and 4-digit LED display, eight preset speeds, PID process control, and fault history monitoring.

• Flux vector inverter drive rated 240 VAC input, 1 HP (0.75 kW), 4.2 A for three-phase operation.
• Control and interface: 4-digit LED keypad, optional remote keypad, 8 preset speeds, PID process control, real-time monitoring and 8-register fault history.
• NEMA 1 enclosure with compact dimensions (approx. 3.9 in W x 4.35 in D x 7.5 in H); suitable for panel mounting in industrial motor control systems.

Product Highlights

Open-loop flux vector control; 240 VAC input; 1 HP (0.75 kW), 4.2 A; NEMA 1 enclosure; keypad display with PID and fault history.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 174608.00

Technical Specifications

• Manufacturer: Regal Rexnord / Leeson Electric Co
• MPN: 174608.00
• Part Number: 174608.00
• Series: SpeedMaster SM2
• Model/Series: SpeedMaster SM2
• Category: Drives
• Type: Inverter drive / Flux vector
• Input Voltage: 240 VAC
• Voltage Rating: 208/240 V AC
• Output Power: 1 HP
• Output Power (kW): 0.75 kW
• Phases: 3 phase
• Output Current: 4.2 A
• Enclosure: NEMA 1
• Enclosure Type: NEMA 1/IP31
• Width: 3.9 in
• Depth: 4.35 in
• Height: 7.5 in
• Features: Open loop flux vector, 4-digit LED keypad, optional remote keypad, 8 preset speeds, PID process control, real-time monitoring, 8-register fault history
