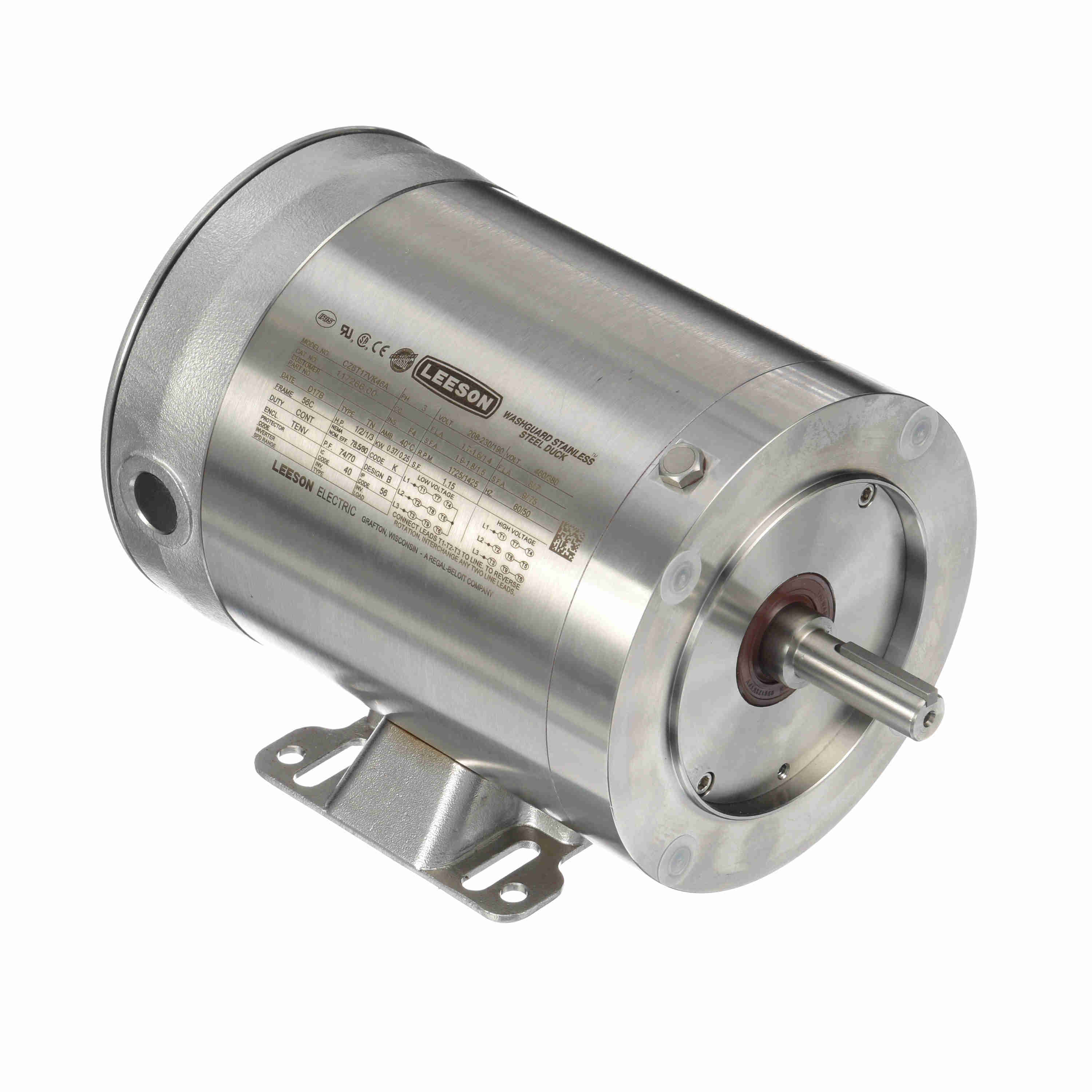

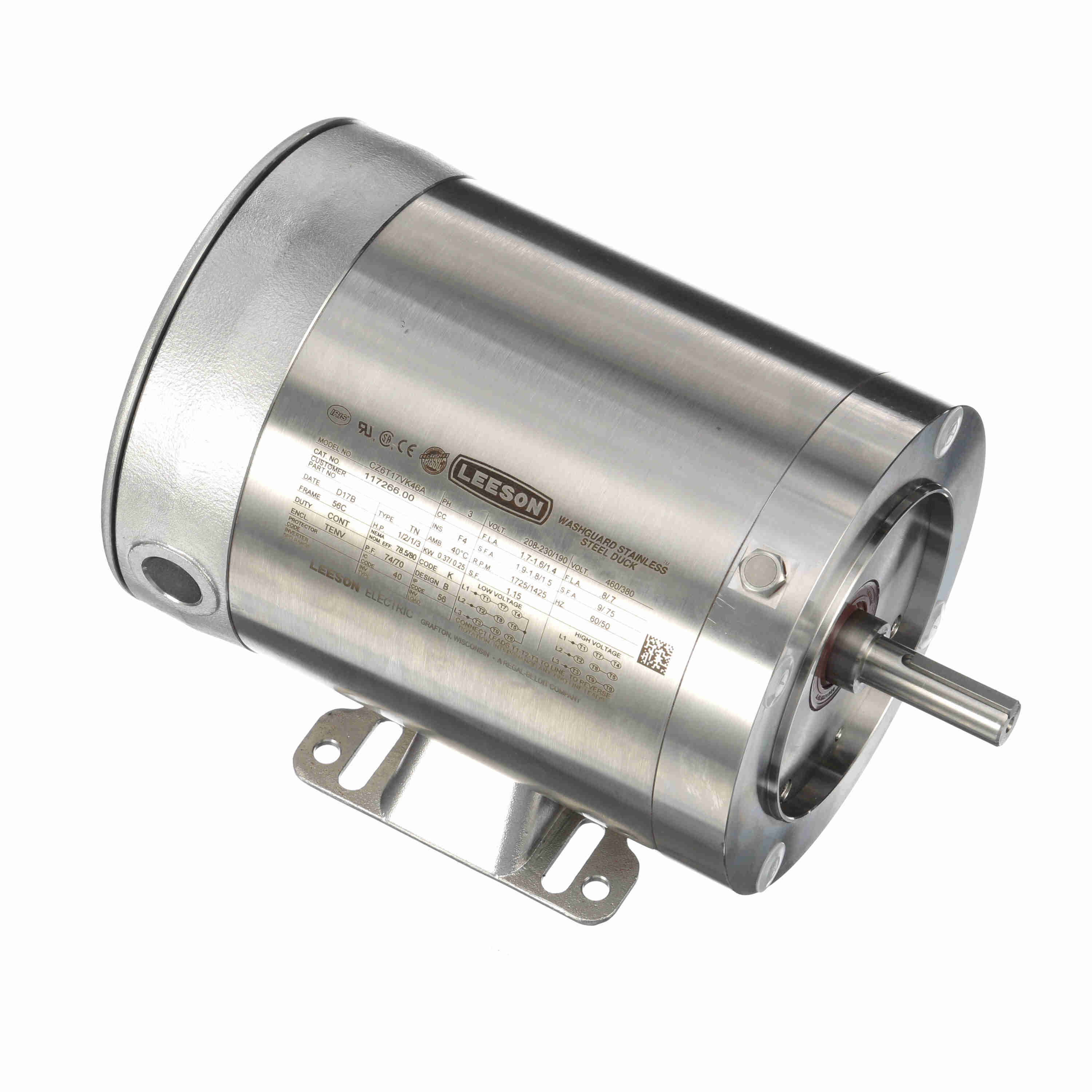

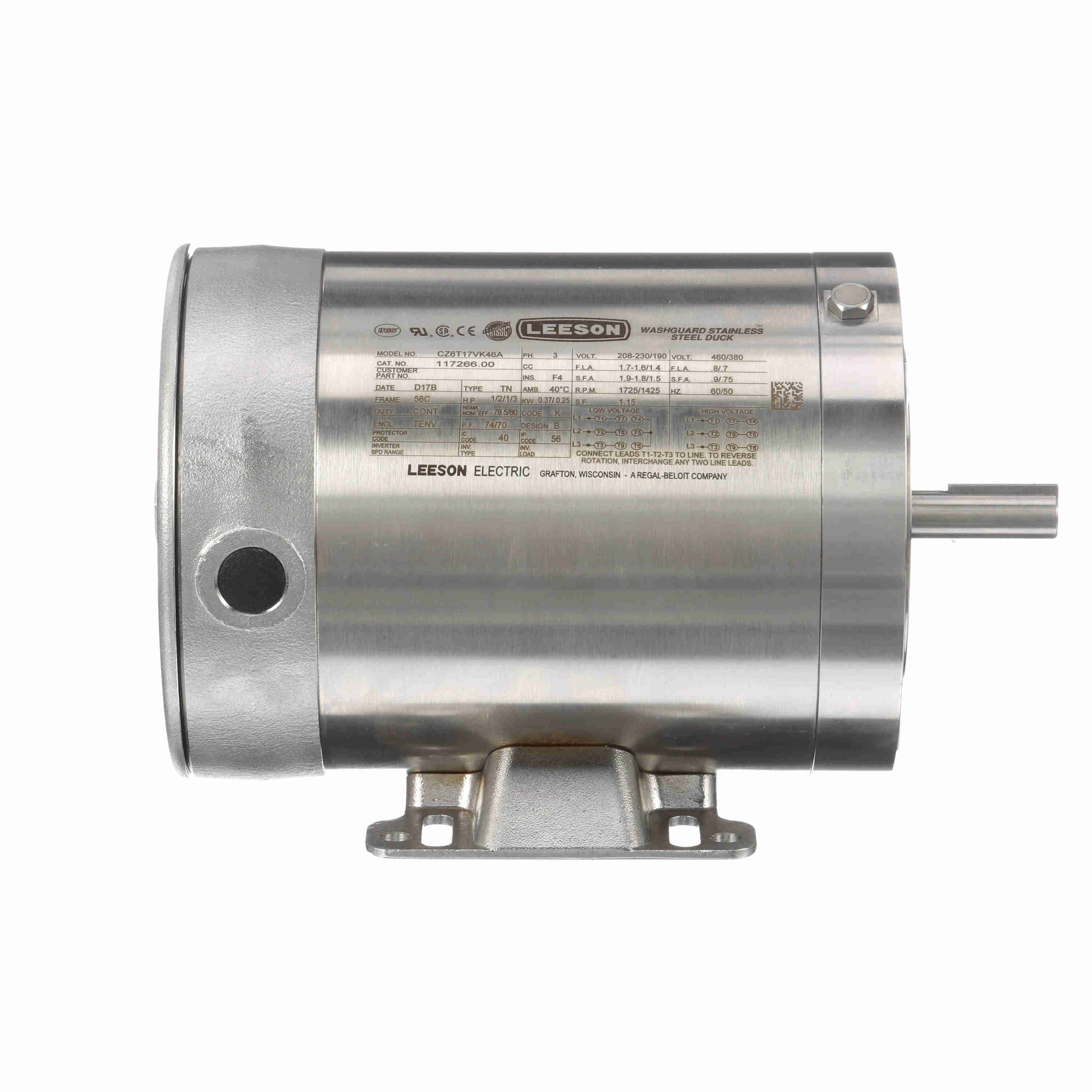

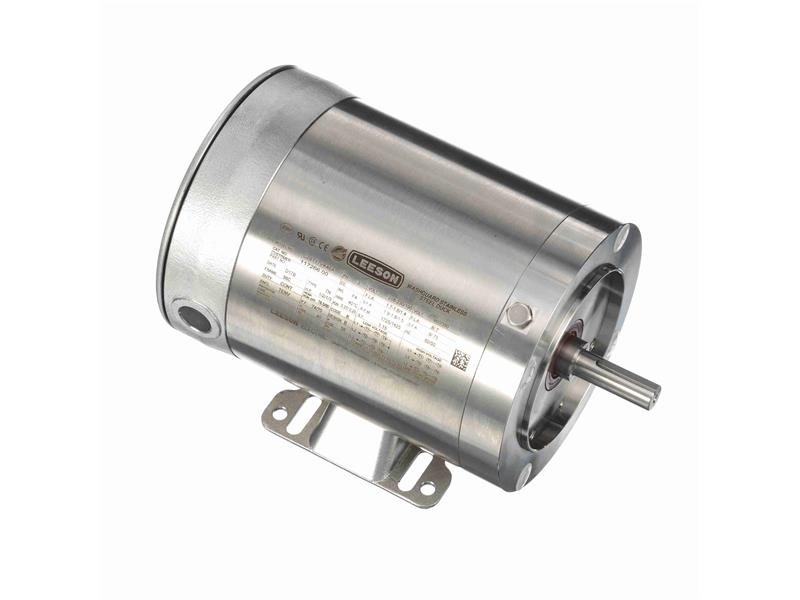

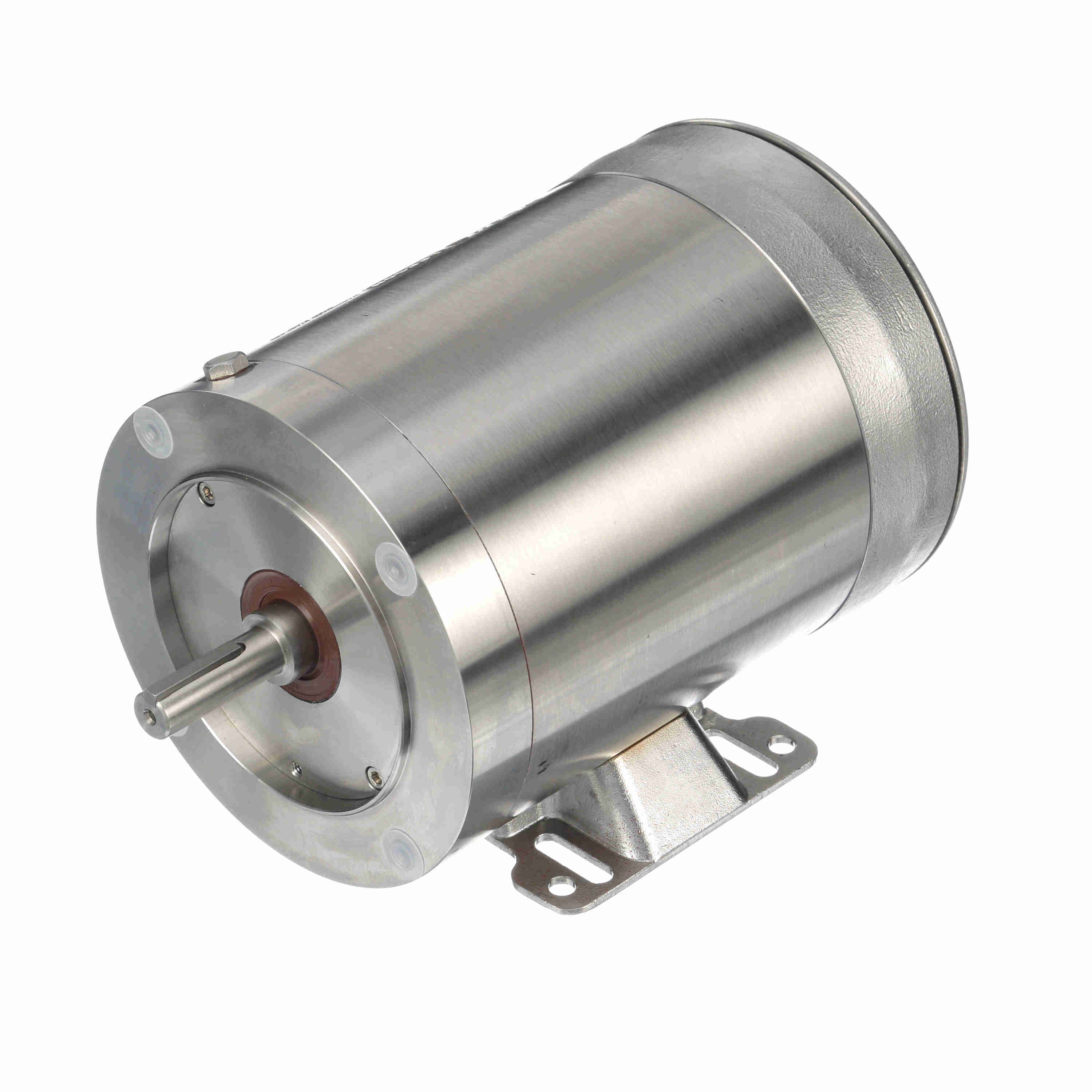

Regal Rexnord 117266.00 Motor 0.50/0.33 HP (56C Frame)

Product Description

The Regal Rexnord 117266.00 is a general purpose three-phase electric motor with dual nameplate ratings of 0.50 and 0.33 HP. It supports 60 Hz and 50 Hz operation with dual voltage connections (230/460 V and 190/380 V) and offers speed options of 1800 and 1500 RPM. The motor is built on a 56C frame with a totally enclosed non-ventilated (TENV) enclosure and a listed weight of 35.00 lbs.

• Dual horsepower ratings: 0.50 HP and 0.33 HP; three-phase operation
• Dual voltage capability: 230/460 V and 190/380 V; 60 Hz and 50 Hz compatible
• 56C frame, speeds 1800 and 1500 RPM, totally enclosed non-ventilated (TENV)

Product Highlights

General purpose 3-phase motor with dual HP/voltage ratings and TENV 56C frame

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 117266.00
• Country of Origin: USA

Technical Specifications

• Brand: Regal Rexnord
• Manufacturer: REGAL REXNORD / LEESON ELECTRIC CO
• Manufacturer Part Number: 117266.00
• Category: Motor
• Description: General purpose motor, 0.50 & 0.33 HP, 3 phase
• Horsepower: 0.50 & 0.33 HP
• Phases: 3 phase
• Frequency: 60 & 50 Hz
• Input Voltage: 230/460 V & 190/380 V
• Speed: 1800 & 1500 RPM
• Frame: 56C
• Enclosure: TENV (Totally Enclosed Non-Ventilated)
• Weight: 35.00 lbs
