Regal Cutting Tools 015706AS Bsp Pipe Tap 1/2-14

Product Description

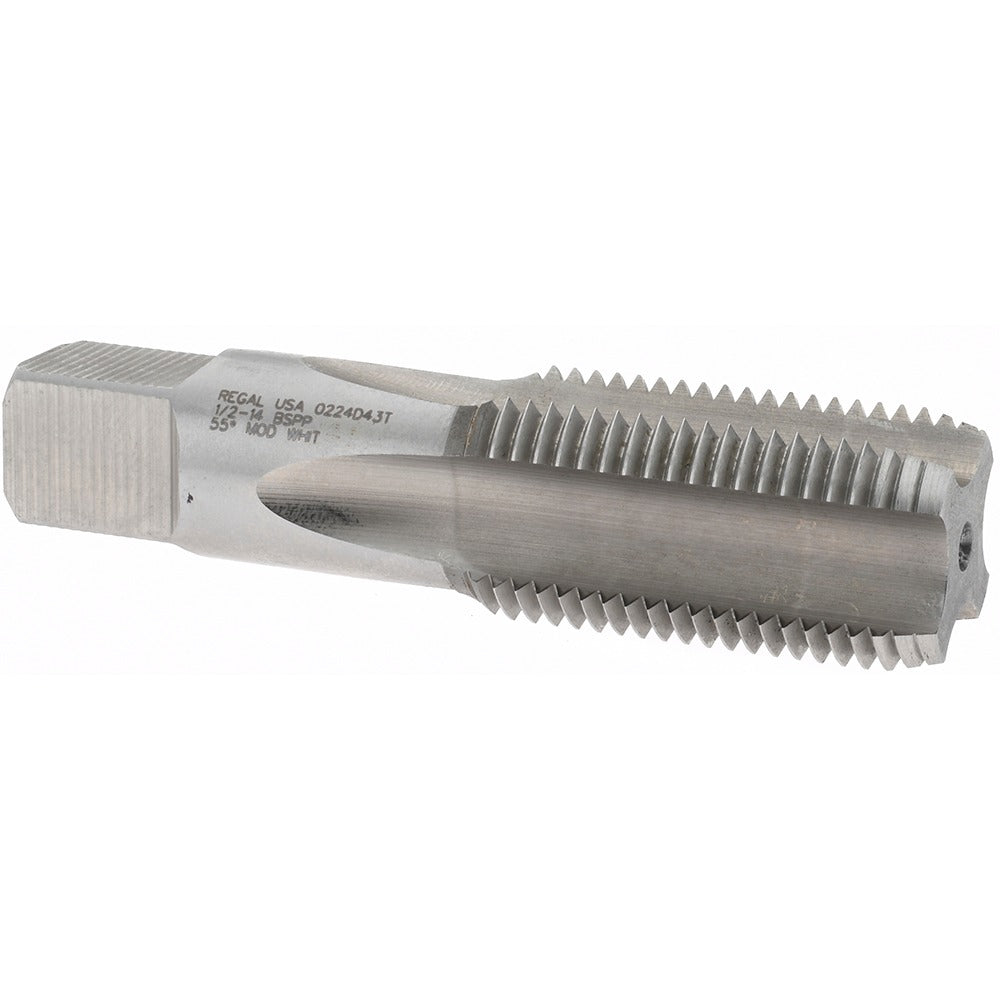

The REGAL CUTTING TOOLS 015706AS is a British Standard Pipe tap designed to cut internal G(BSP) threads in metal workpieces. Configured with a plug chamfer and four flutes, this tap suits through-hole and blind-hole applications where a moderate lead-in is acceptable. The 1/2-14 thread designation follows the G(BSP) standard, which uses a parallel thread form common in plumbing and hydraulic fittings outside the United States. The tool is manufactured from high speed steel with a bright finish, providing durability for production and maintenance tapping operations performed by plumbers, pipefitters, and maintenance machinists.

This tap is used when threading pipe ports, fittings, or manifold bodies to accept G(BSP) parallel pipe threads. It is appropriate for use in repair shops, plumbing fabrication environments, and industrial maintenance settings where metric or British-standard pipe connections are required. The 1/2-14 size is a common thread specification for half-inch nominal pipe fittings. Machinists and journeyman pipefitters familiar with BSP thread standards will recognize this as a standard toolroom item.

Key Features

• G(BSP) parallel thread standard for British and international pipe fitting applications
• 1/2-14 thread size for half-inch nominal pipe connections
• Plug chamfer provides a moderate lead-in suitable for through holes and accessible blind holes
• Four-flute configuration aids chip evacuation during cutting
• High speed steel construction for wear resistance across a range of workpiece materials
• Bright finish with no additional coating

Compatibility

Designed for use in any application requiring an internal G(BSP) parallel pipe thread at the 1/2-14 thread size, including pipe fittings, hydraulic manifolds, and fluid system components that conform to the British Standard Pipe thread form.

Installation Notes

This tap is installed using a standard tap wrench or tapping machine appropriate for the thread size. The correct tap drill size for the G(BSP) thread form must be used before tapping to achieve proper thread engagement. Cutting fluid should be applied during the tapping operation to reduce heat and extend tool life. Always secure the workpiece and verify the drill and tap are properly aligned before starting the cut.
