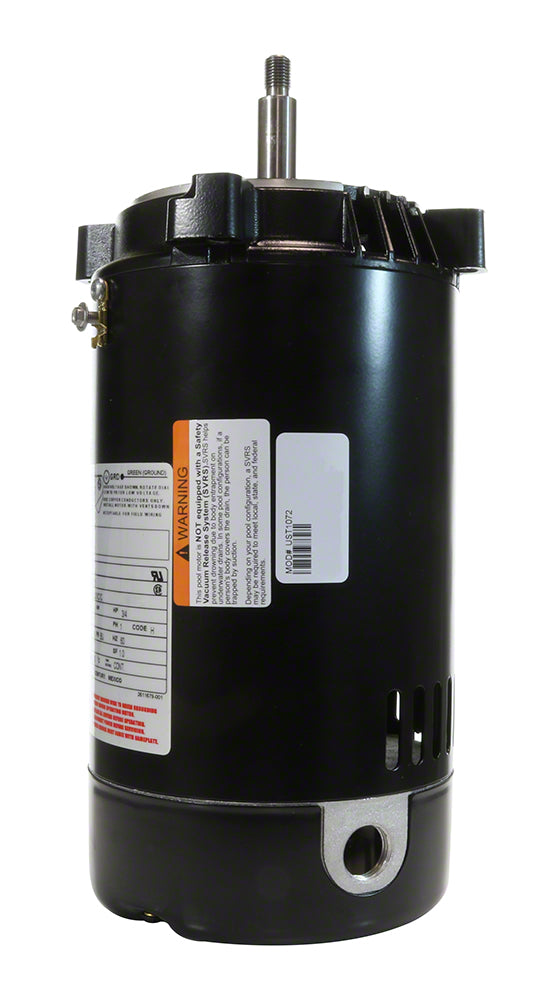

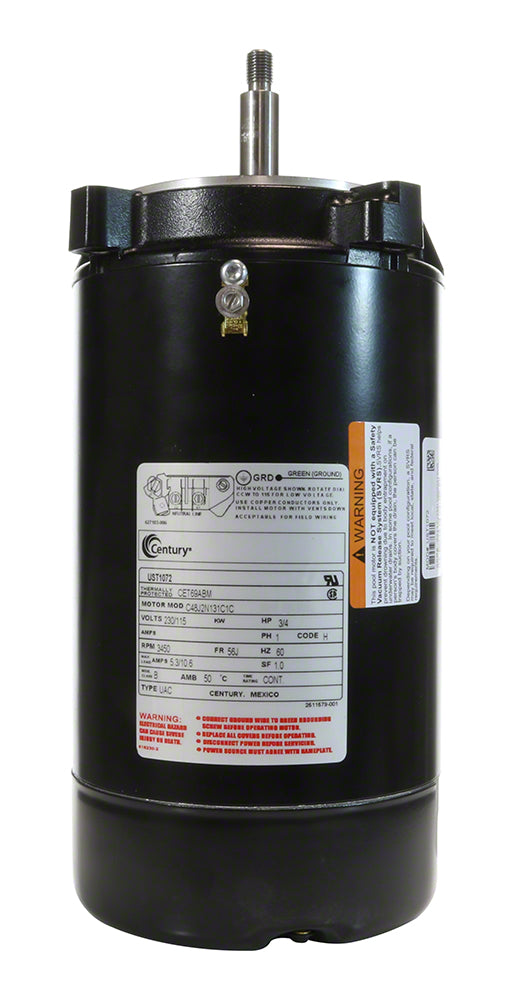

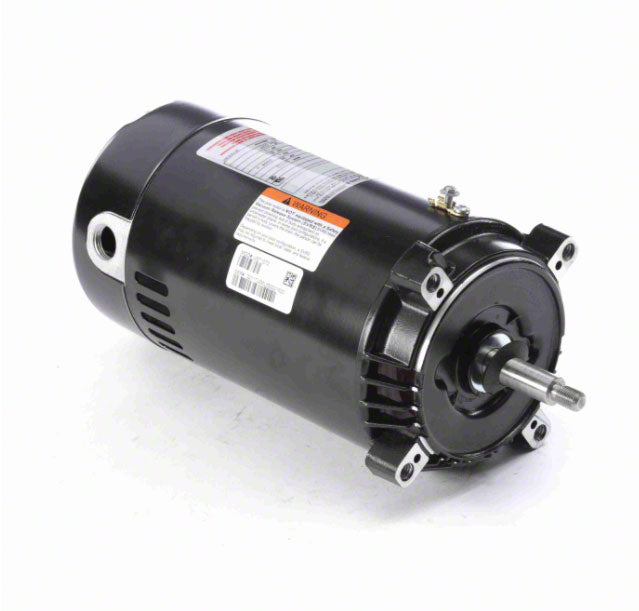

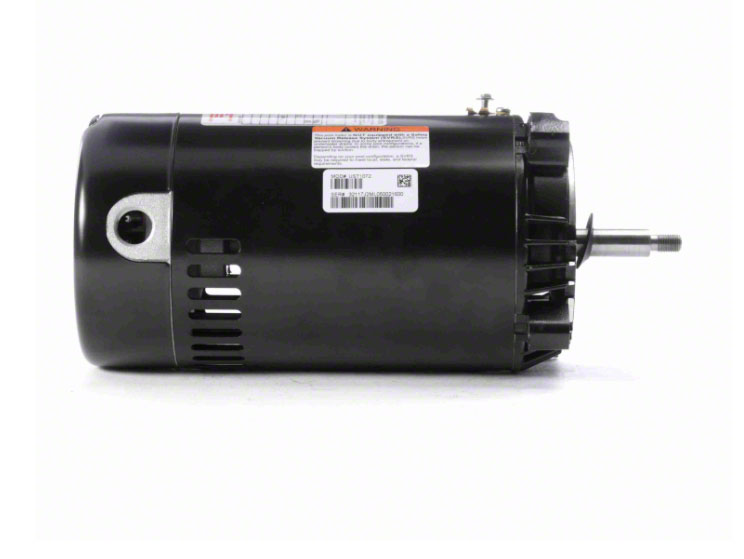

Regal Beloit UST1072 0.75 HP Up-Rated Two-Compartment Pool Filter Motor 56J Threaded Shaft

Product Description

The Regal Beloit UST1072 is a three-quarter horsepower round flange up-rated replacement motor for swimming pool pumps, featuring a threaded shaft. Operating on both 115 and 230 volts, with a speed of 3450 RPM and a 56J motor frame. Compatible with Hayward Super, Super II, and Max-Flow pumps, Jacuzzi Magnum pumps, and Pentair Pinnacle pumps.

• Fits most pumps that require a round flange motor
• Operates on both 115 and 230-volts
• Compatible with Hayward, Jacuzzi, and Pentair pumps

Product Highlights

The Regal Beloit UST1072 is designed as a replacement motor for swimming pool pumps. It is compatible with multiple brands and operates on 115V and 230V.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: UST1072
• Country of Origin: China

Technical Specifications

• Speed: 3450 RPM
• Voltage: 115 & 230V
• Motor Frame: 56J
• Suitable For: In Ground Pools
• Type: Standard Pool Pump
• Horsepower: 0.75 horse power
• Product Category: Pump Motors
• Poolweb Item #: UST1072
• Cross Reference #: C48J2N131C1C, SPX1605Z1M
• Manufacturer: Century Motors
• VoltageRating: 115/230 V
• DutyCycle: Continuous
• MotorDesign: Capacitor Start
• FullLoadAmps: 11.0/5.5 A
• ServiceFactor: 1.00
• Brand: Regal Beloit
• SubBrand: Century®
• StandardsApprovals: UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
• AmbientTemperature: 50 deg C
• RPM: 3450
• ShaftDesign: Threaded
• MotorShaftRotation: CCWPE
• Phase: 1-Phase
• FlangeMaterial: Aluminum
• ShaftMaterial: 303 Stainless Steel
• MountingType: C-Face
• InsulationClass: B
• EfficiencyGroup: Standard
• HP: 0.75
• ShaftDiameter: 5/8 Inch
• FrequencyRating: 60 Hz
• NumberofSpeed: 1-Speed
• OverallLength: 10.63 Inch
• Diameter: 6-1/2 Inch
• Item: Two-Compartment Pool Filter Motor
• ShaftLength: 2-9/16 Inch
• MotorThermalProtection: Auto
• Bearing Type: Sealed Ball
• EnclosureDesign: Open Dripproof
• Ambient temperature: 50 degrees Celsius
• Shaft Length: 2.5625 inch
• Motor Speed: 1-Speed
• Motor Capacitor Type: Start
• Amps High Speed: 11
• Application: Pool
• RPMs Min: 3450
• Amps Low Speed: 5.5
• Motor Frame Size: 56J
• Motor Enclosure Type: Open Drip Proof
• RPMs Max: 3450
• Motor Shaft Rotation: Counterclockwise Pulley End
• Motor Rating: Up-Rated
• Commercial, Residential, or Professional: Residential
• Model: CT1072
• Features: Energy Efficient, Reversible
